BendPak APEX AL10C Clearfloor 2-Post Lift – 10,000 lb. Capacity

BendPak APEX AL10C Clearfloor 2-Post Lift – 10,000 lb. Capacity

Open under-vehicle access and strong daily performance come together in the APEX AL10C, a 10,000-lbs. capacity clearfloor two-post car lift. With direct-drive hydraulics, heavy-duty overhead box-beam construction, and advanced safety systems, the AL10C delivers smooth, stable lifting for cars, trucks, and SUVs, with BendPak-backed support.

Clearfloor Power for Serious Shops

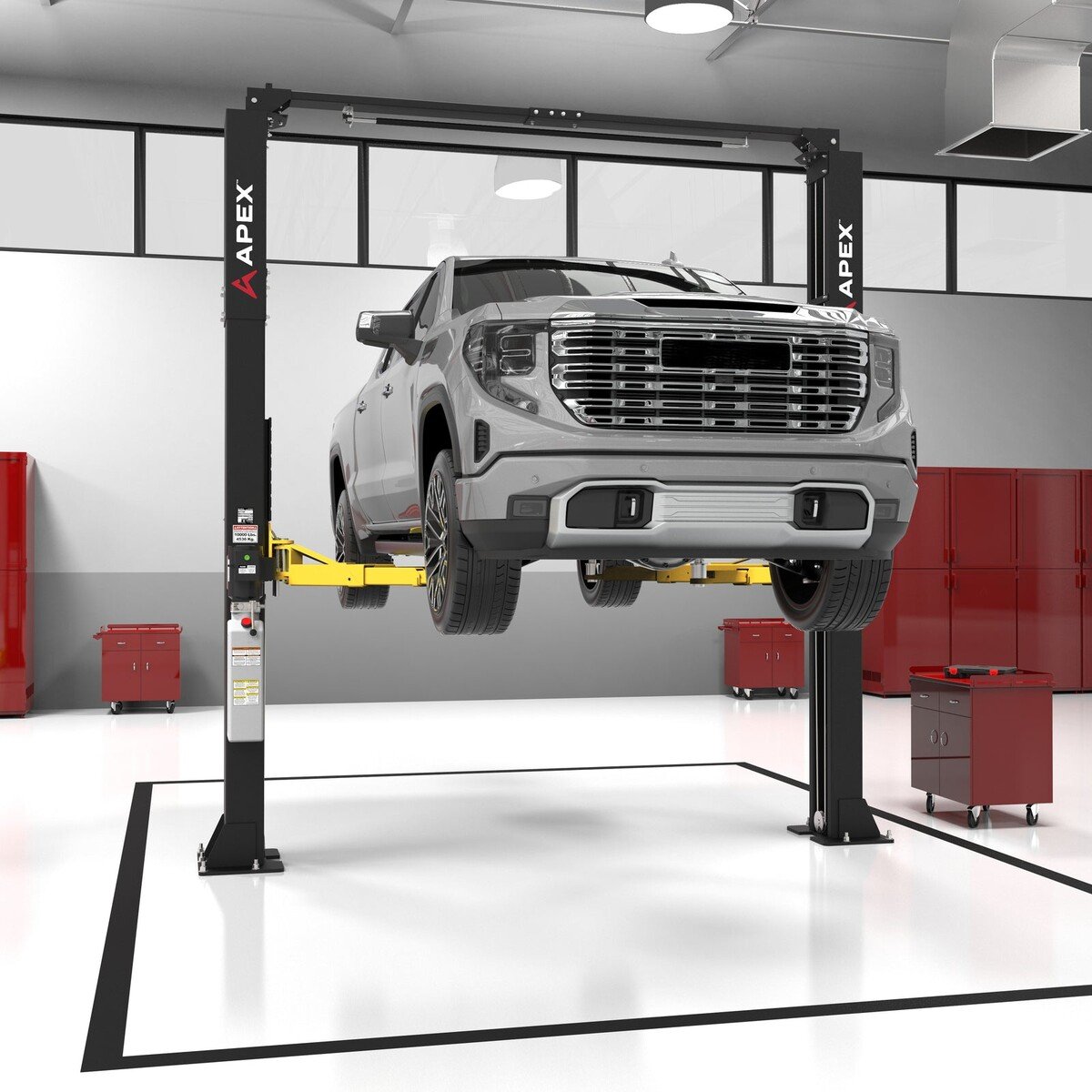

The APEX AL10C Clearfloor Two-Post Lift is built for professional shops and serious garages that want open floor access beneath the vehicle. With a 10,000-lb. lifting capacity and clearfloor design, the AL10C eliminates the floor beam found on traditional floorplate lifts so transmission jacks, oil drains, tool carts, and other shop equipment can move freely under the raised vehicle.

This clearfloor two-post lift is designed for better workflow, cleaner bay movement, and easier service access across passenger cars, performance vehicles, light trucks, and lifted vehicles. For users comparing APEX two-post lifts, the AL10C is the higher-capacity clearfloor choice for shops that want unobstructed floor space and a direct-drive hydraulic lifting system.

Clearfloor Access with Flexible Vehicle Positioning

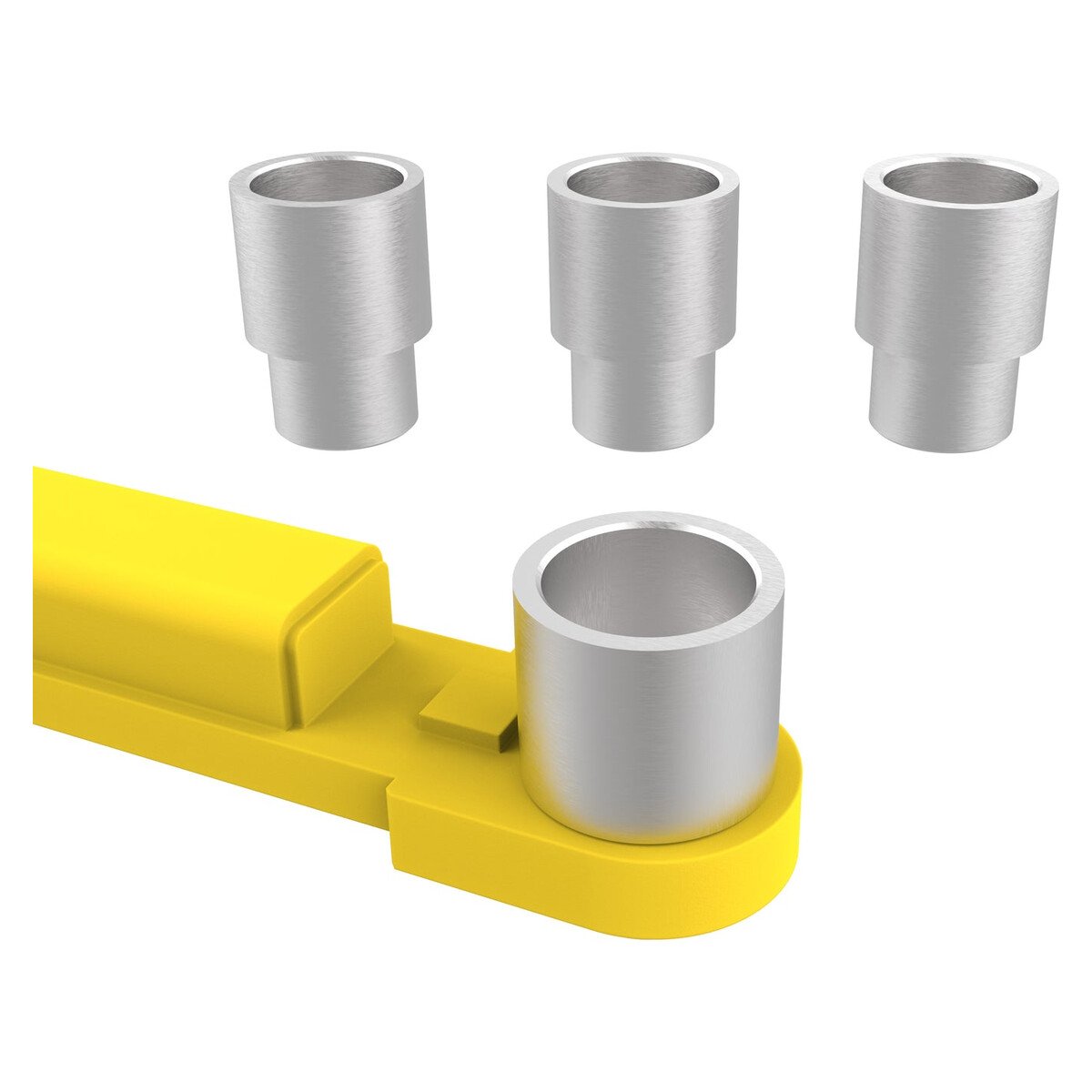

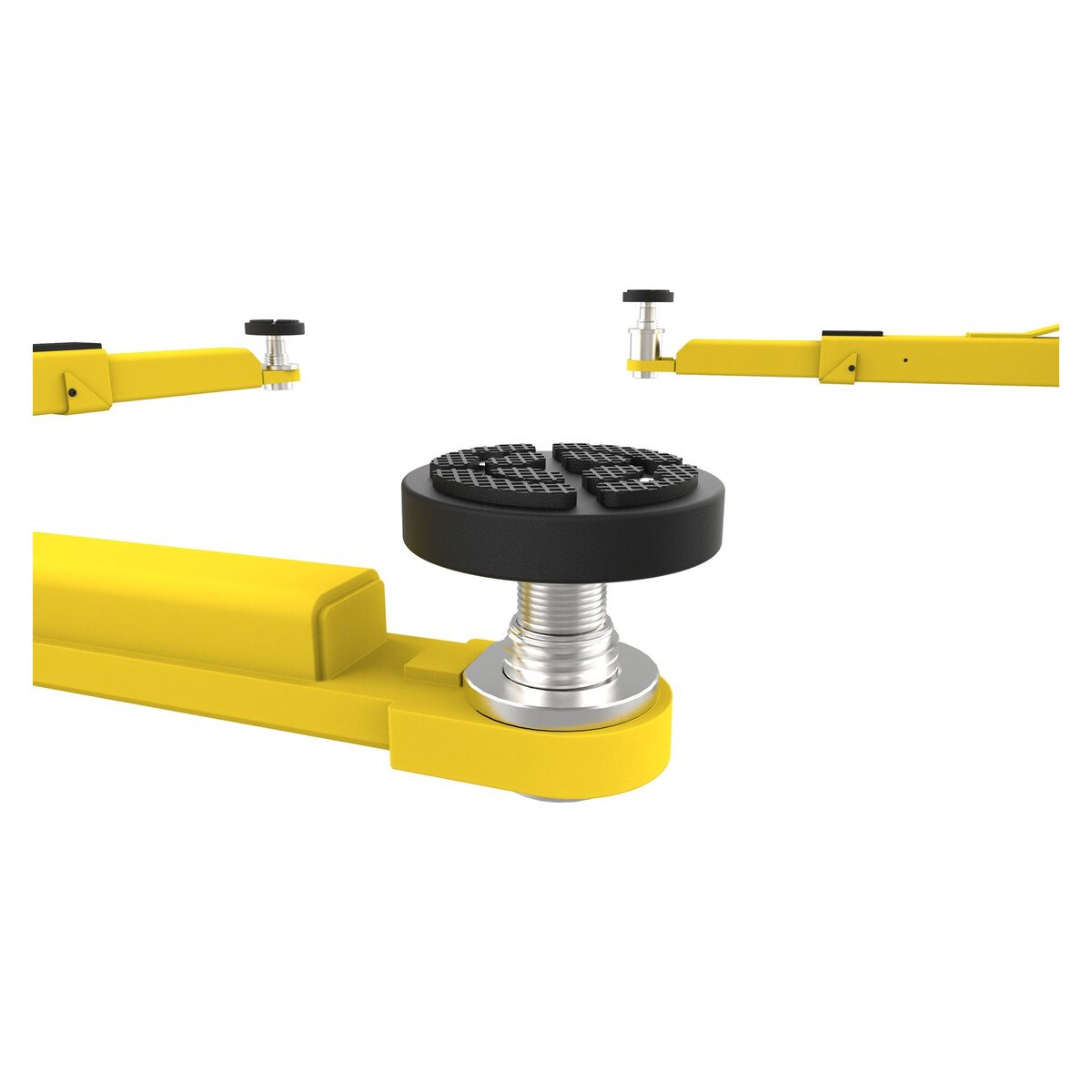

The AL10C is designed to make vehicle setup faster while keeping the service bay easier to work around. Symmetric and asymmetric arm configurations allow technicians to adapt the lift setup to different vehicle sizes, frame designs, and weight distribution needs. Triple-telescoping front arms and dual-stage extended rear arms provide broad reach for a wide range of wheelbases. Double-telescoping screw pads with tear-resistant polyurethane non-slip pads, along with the included 4-piece 63 mm stackable adapter set, help create secure lifting contact across different vehicles and service applications.

Direct-Drive Hydraulics with Overhead Structural Support

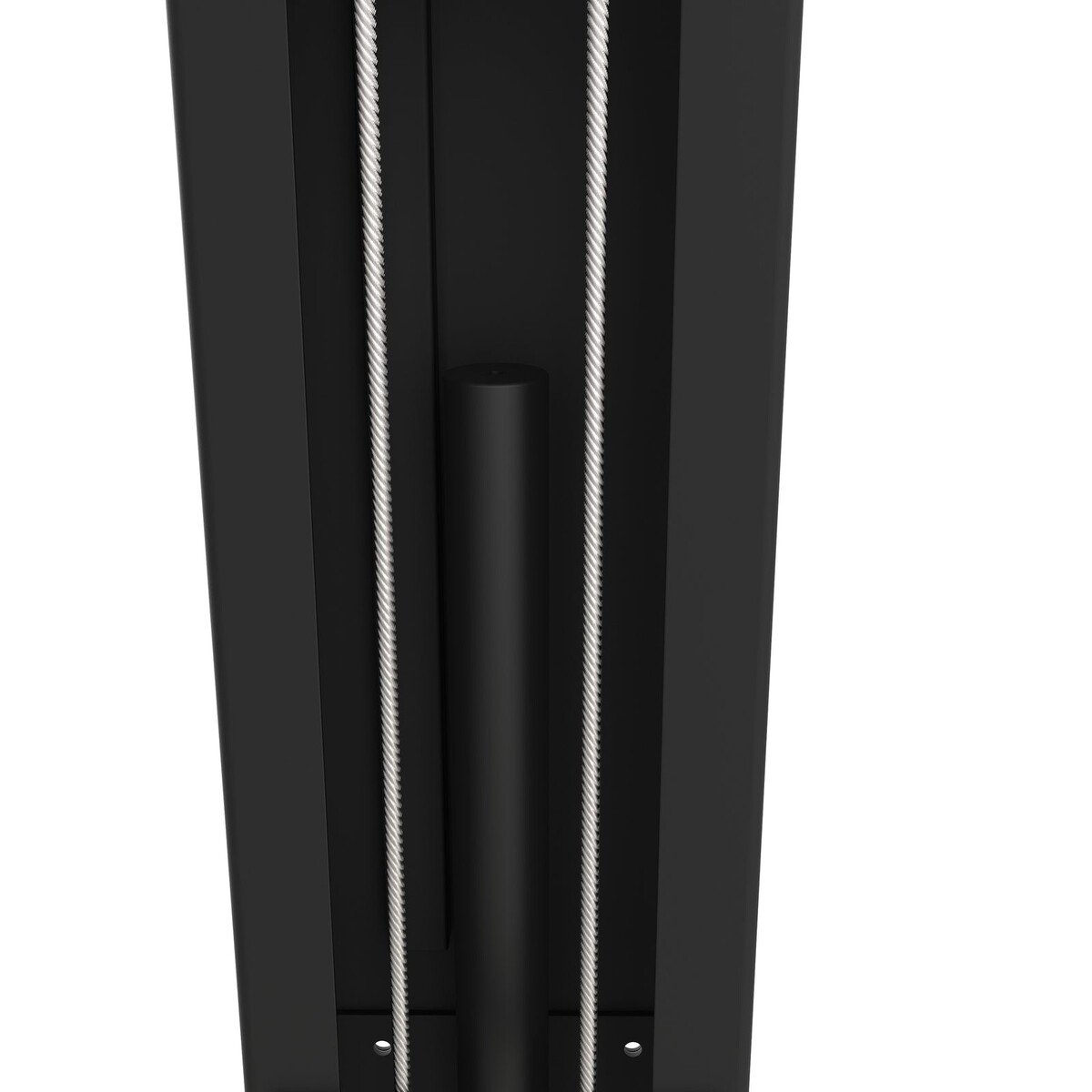

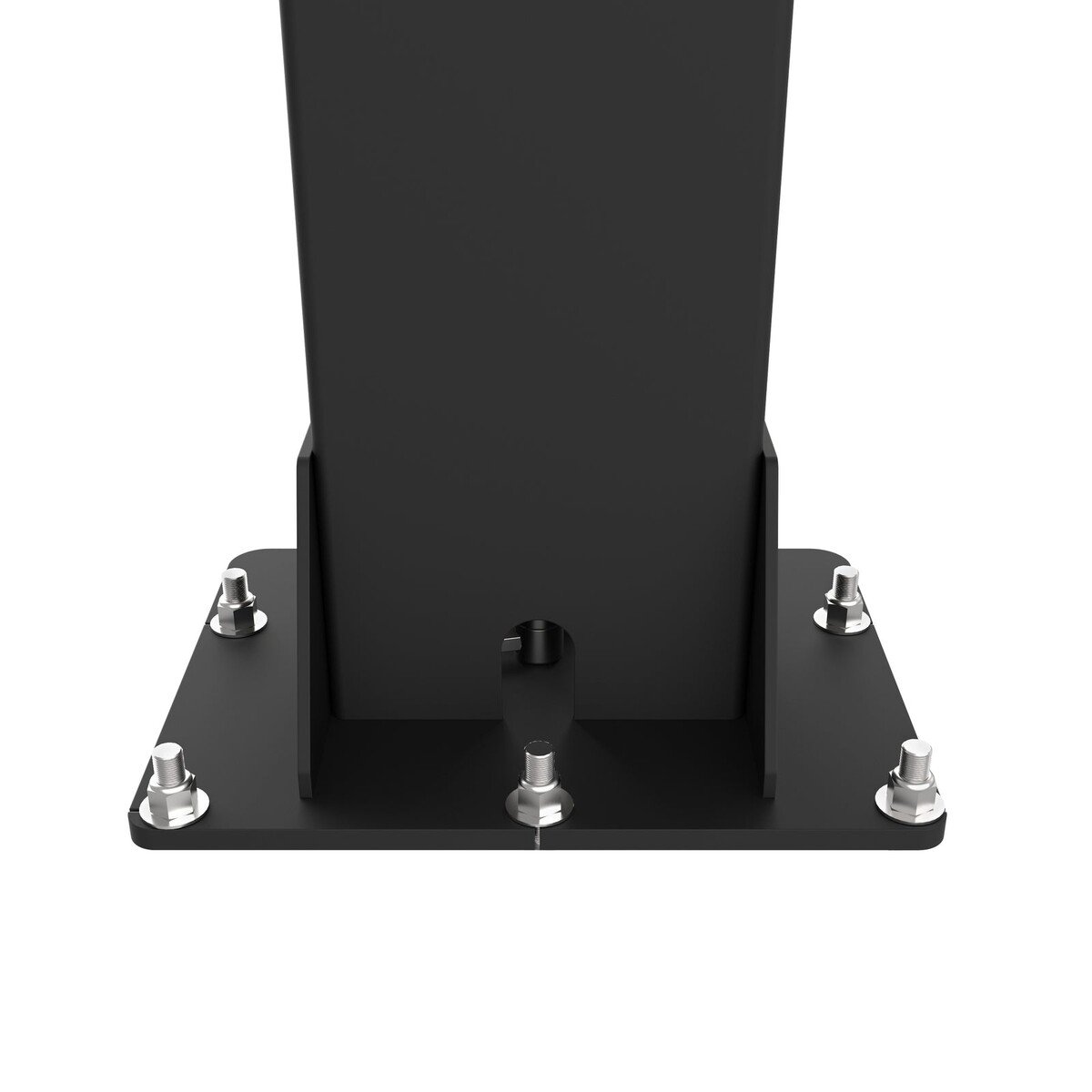

The AL10C features a direct-drive hydraulic design with dual full-stroke hydraulic cylinders. By reducing the number of moving parts compared with more complex lifting systems, the direct-drive setup helps minimize wear while delivering smooth, consistent lift operation for daily shop use. A rugged overhead box-beam structure reinforces the lift frame, reduces column stress, and supports overall stability. Heavy-duty 6-inch by 6-inch tubular steel carriages, oversized base plates, self-lubricating UHMW polyethylene guide blocks, oversized cable sheaves, and aircraft-quality equalizer cables all contribute to long-term durability.

Safety Locks, Overhead Shutoff, and Long-Term Support

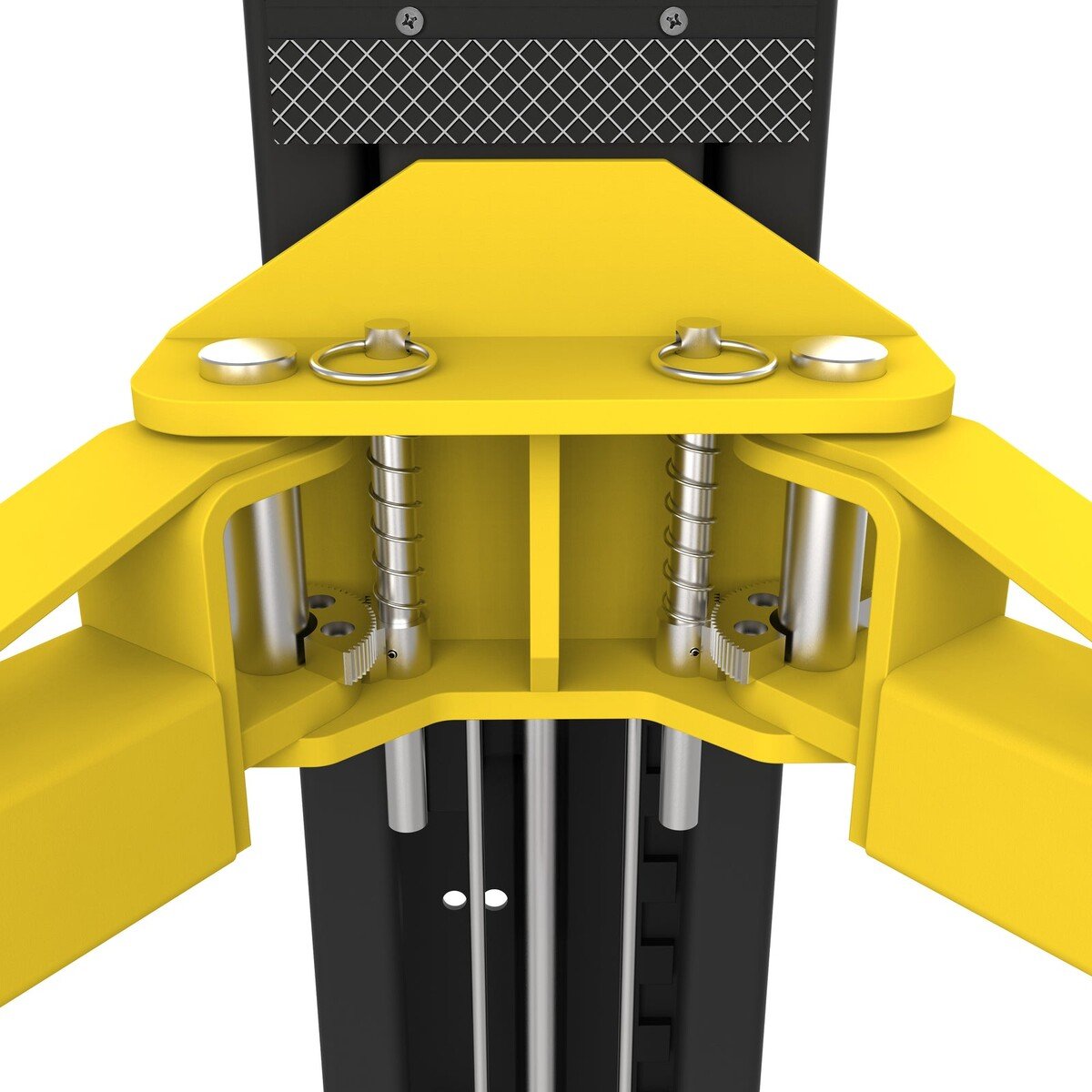

The AL10C includes automatic safety locks that engage every 3 inches throughout the lifting range, helping hold vehicles securely at working height. Single-pull lanyards on each carriage make lock release straightforward, while automatic arm restraints help prevent unintended arm movement after the vehicle is raised.

A padded overhead safety shutoff bar with an industrial-grade limit switch automatically stops lift travel if a vehicle is raised too high. Previously sold under the GrandPrix name, the AL10C now joins the APEX lineup with the same clearfloor architecture, direct-drive lifting system, structural components, and BendPak-backed 36-month limited warranty.

Clearfloor Bay Access

The AL10C removes the floor beam found on floorplate lifts, creating open access beneath the vehicle. That makes it easier to move oil drains, jacks, carts, and other equipment through the bay.

10,000-lb. Capacity

With 10,000 lbs. of lifting capacity, the AL10C is built for passenger cars, performance vehicles, light trucks, and mixed shop service needs.

Direct-Drive Hydraulics

Dual full-stroke hydraulic cylinders provide smooth, consistent lift operation with fewer moving parts. The design helps reduce wear and maintenance demands over time.

Overhead Safety Shutoff

A padded overhead shutoff bar with an industrial-grade limit switch stops lift travel if a vehicle is raised too high. It adds important protection during daily operation.

Flexible Arm Setup

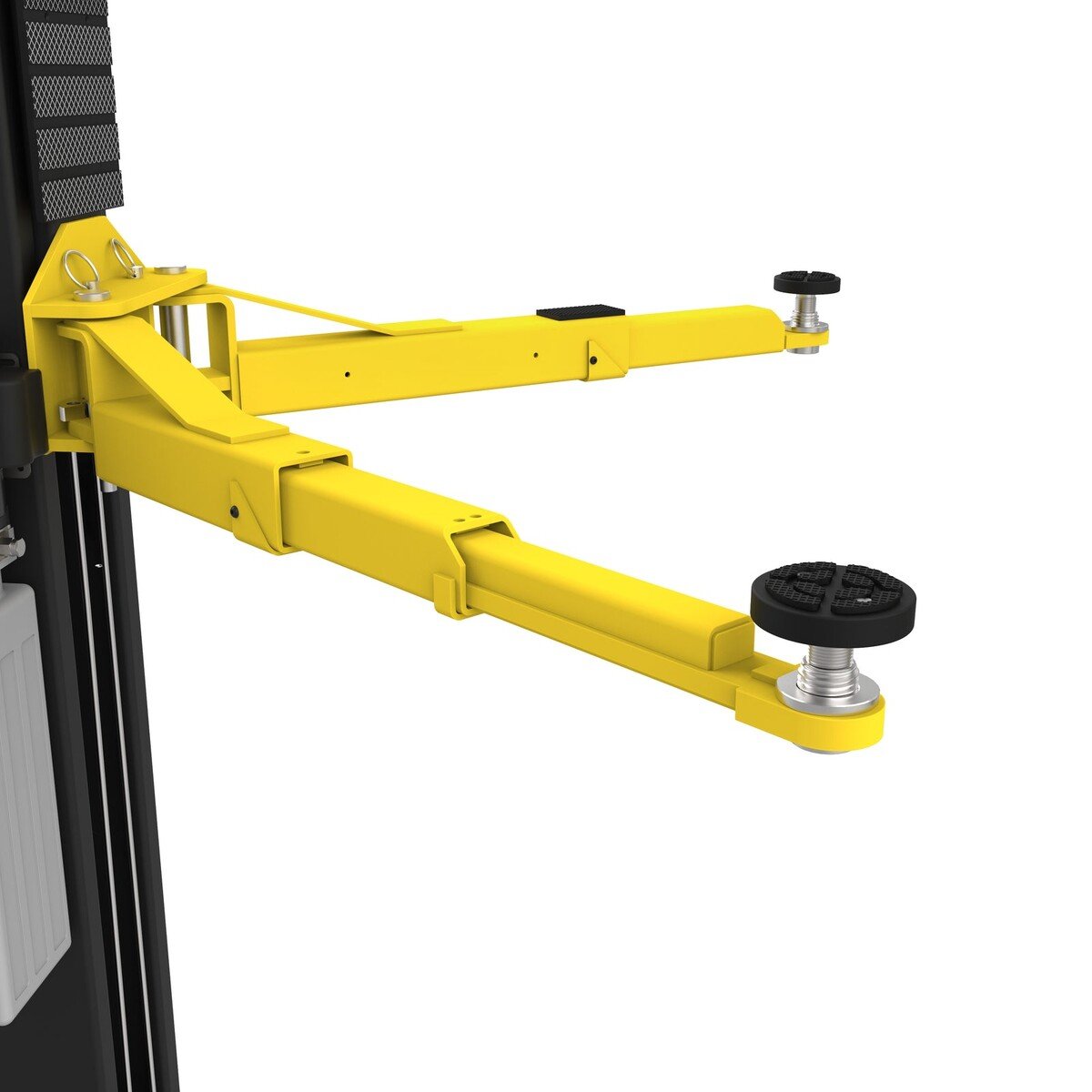

Symmetric and asymmetric arm configurations help technicians adapt to different vehicles and lifting points. Triple-telescoping front arms and extended rear arms improve reach.

Automatic Arm Restraints

Automatic arm restraints help keep the lift arms secured once the vehicle is raised. Paired with safety locks every 3 inches, they support safer service work.

Specifications

Please see our Shipping Policy for delivery details. Car lifts ship by freight truck; a forklift or similar equipment is needed to unload them.

Lifts that are anchored to the floor require level concrete of adequate thickness and strength — check the manufacturer’s installation manual before ordering.
