Description
Products Description

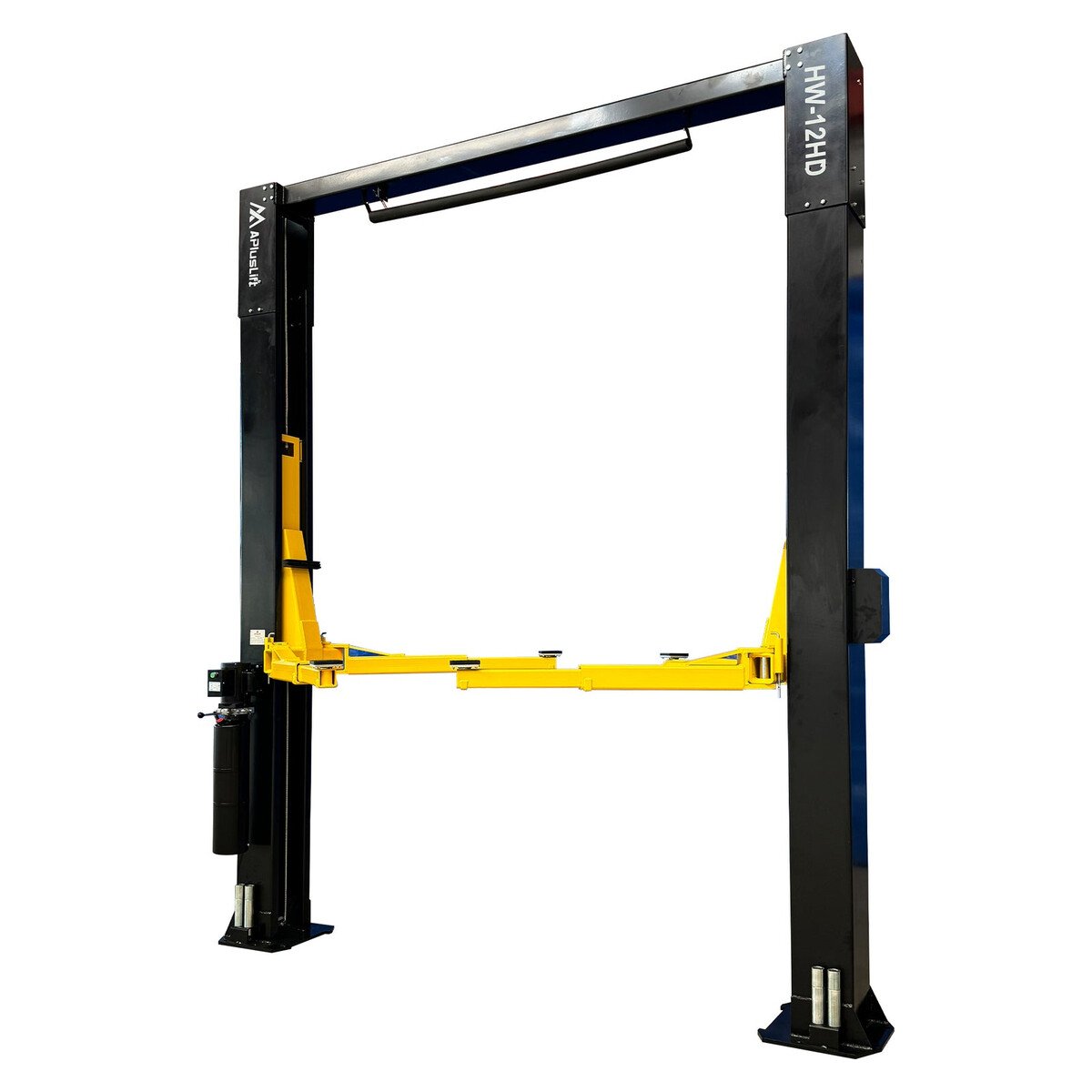

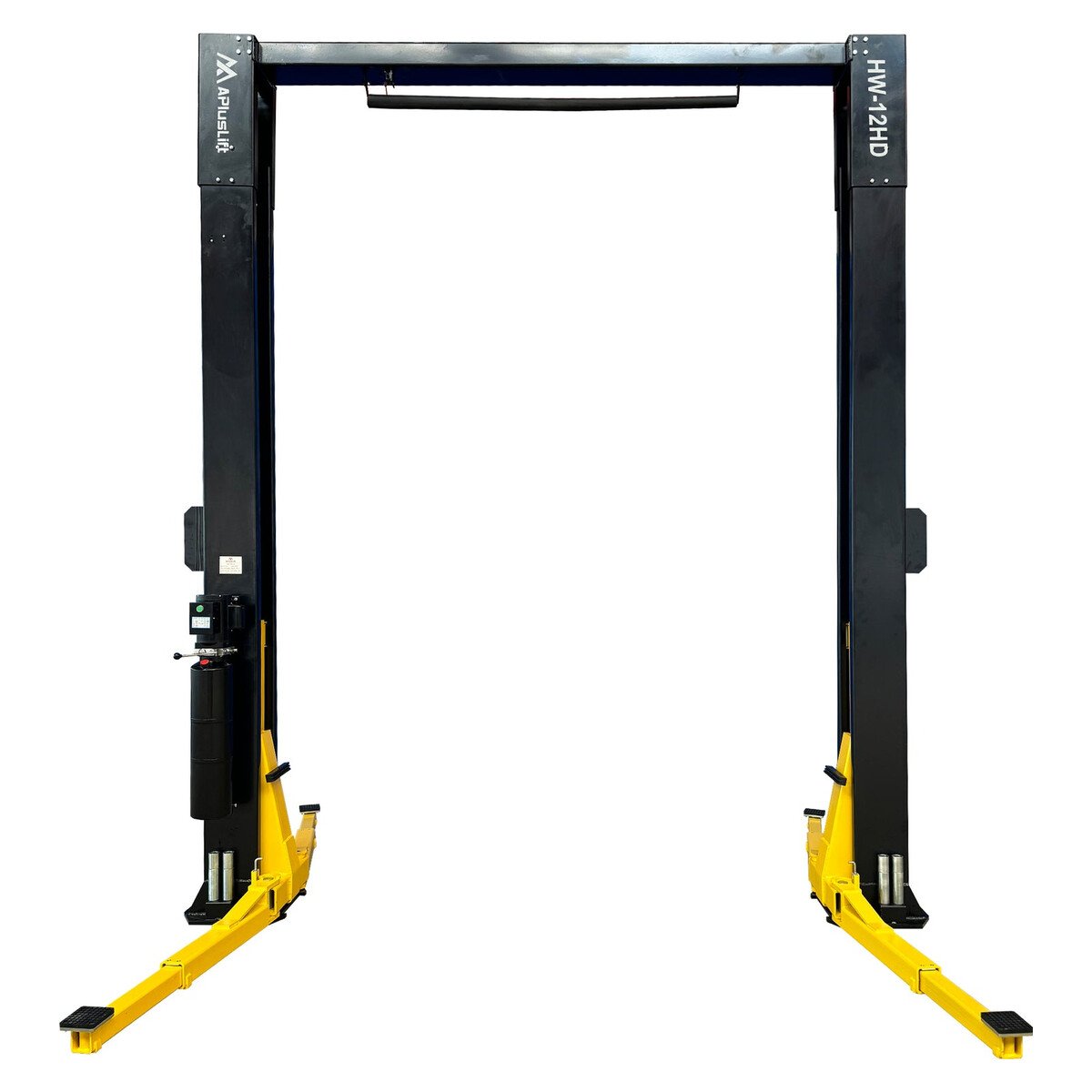

APlusLift HW-12HD 12,000 lb. 2-Post Overhead Car Lift
All 2-Post Car Lifts
-
The product is delivered within 3–4 business days from the day the product is ordered.
-
Industry leading 3 YEAR WARRANTY
-
Single Point Safety Lock Release System
-

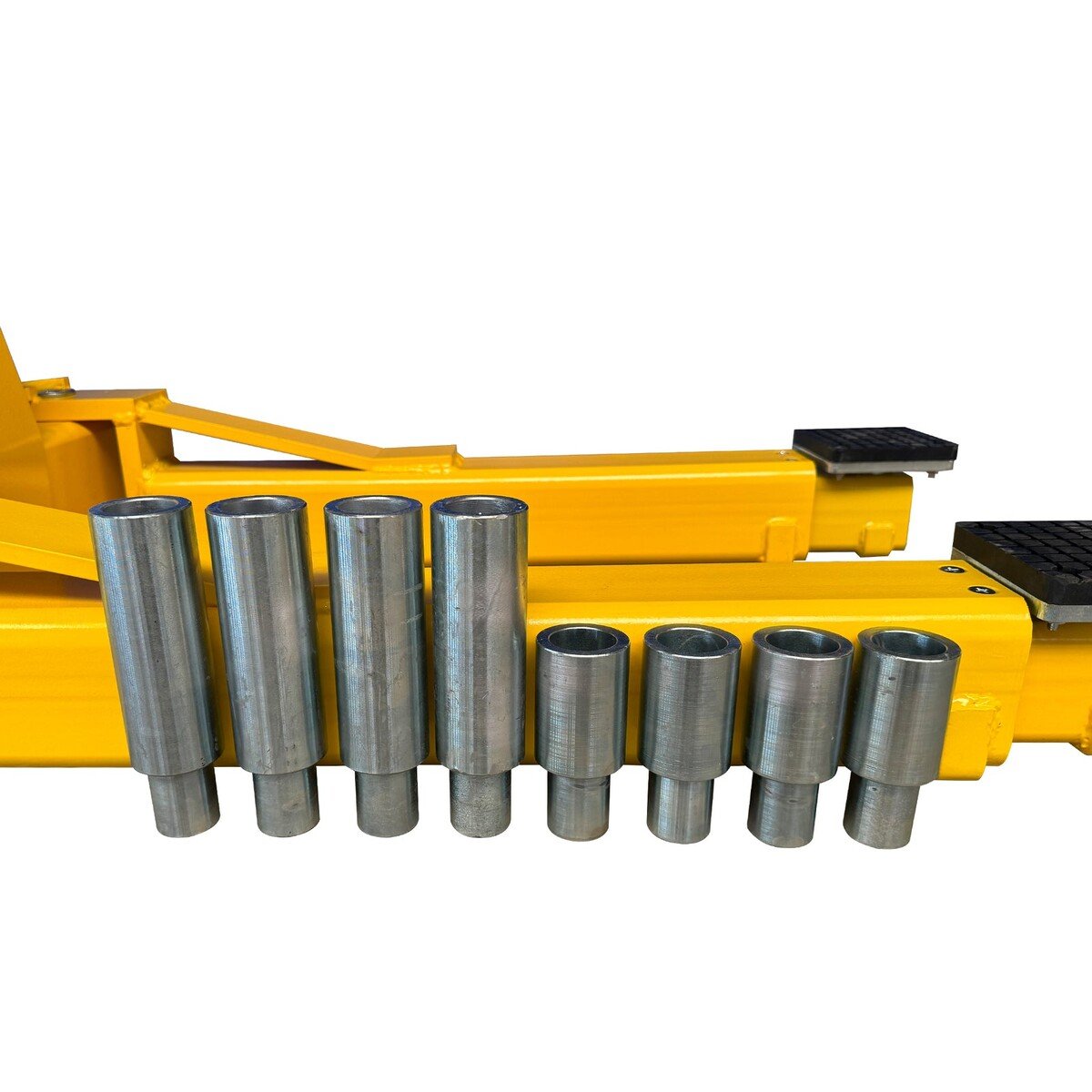

Two Set of 2 3/4″ and 5 1/2″ Tall Truck Adapters Included; 77 15/16″ Lift Height Maximum with Truck Adapters
-
CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
-
All Robot Welded Structure with Durable Powder Coated Finish
APlusLift HW-12HD is a 12000LB single point release overhead car lift (auto hoist) built with quality materials and good workmanship.
We are proud to offer an industry leading 3 year warranty for all parts! We have all replacement and optional parts available for our lifts.
Specifications |
|||||||||
| Model | HW-12HD (This Model) |
AP-12SR (for Comparison) |
|||||||
| Style | Overhead | Overhead | |||||||
| Lock Release | Single Point Release | Single Point Release | |||||||
| Warranty | 3 Years (36 Months) | 3 Years (36 Months) | |||||||
| Lifting Capacity | 12,000 LB | 12,000 LB | |||||||

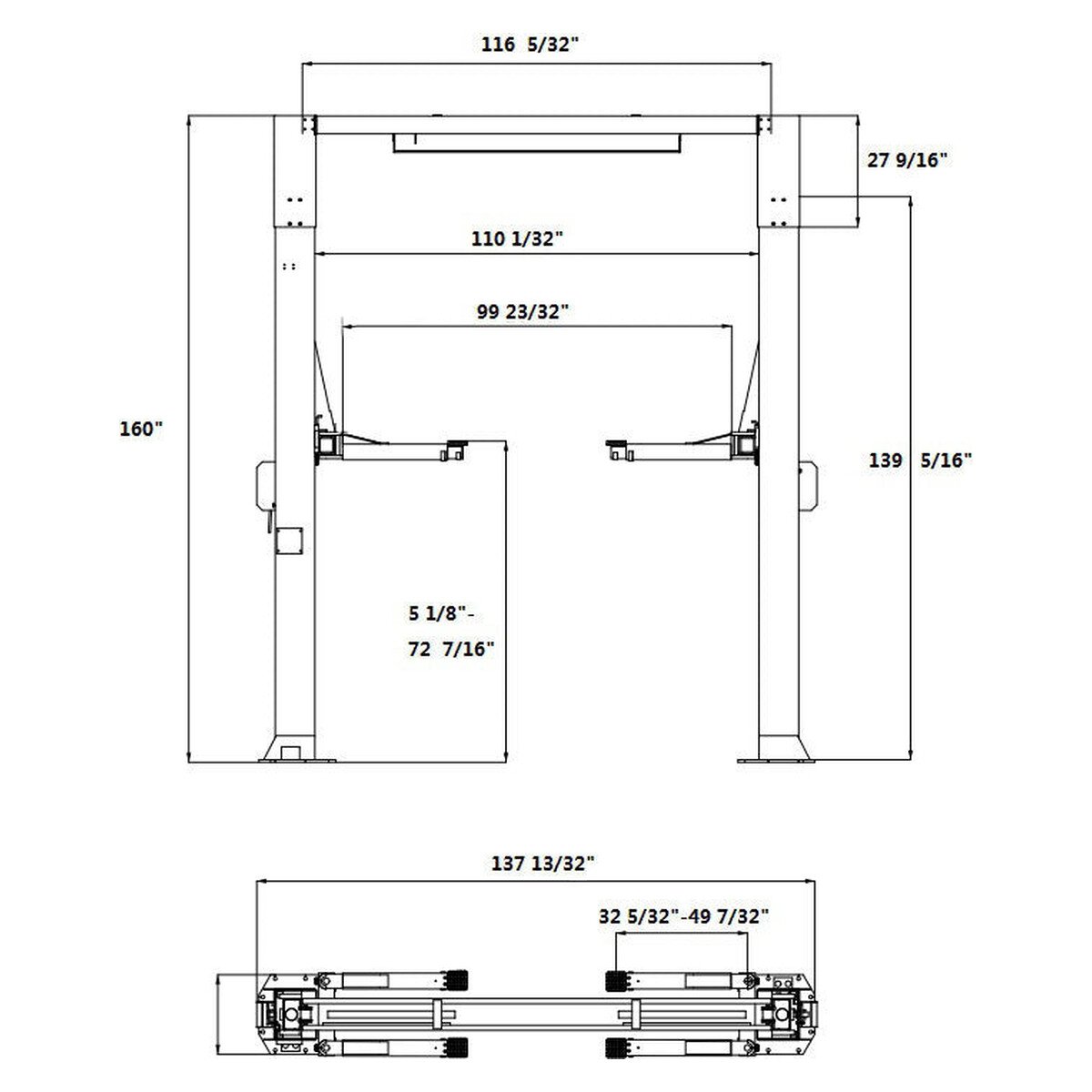

| Overall Height | 160″ | 165″ | |||||||
| Overall Width | 137 13/32″ | 149″ | |||||||
| Maximum Lift height with Truck Adapters | 77 15/16″ | 79″ | |||||||
| Maximum Lift height without Truck Adapters | 72 7/16″ | 70″ | |||||||
| Minimum Height of Adjustable Pads from Ground | 5 1/8″ | 4″ | |||||||
| Drive Through Width (Carriage to Carriage) | 99 23/32″ | 109″ | |||||||
| Column to Column Width | 110 1/32″ | 123″ | |||||||
| Column Cross Section | 12 7/32″L x 9 27/32″W | 14 3/8″L x 7 13/16″W | |||||||
| Driving Mode | Dual hydraulic cylinders, direct drive | Dual hydraulic cylinders, direct drive | |||||||
| Motor | 220V Single Phase 3HP (recommend a 20A breaker) | 220V Single Phase 3HP with Inverter Motor (recommend a 20A breaker) | |||||||
| Hydraulic Oil | 3.2-5 gallons AW32/AW46 (Not Included) | 3-5 gallons AW32/AW46 (Not Included) | |||||||
| Time to full rise | 75 seconds | 75 seconds | |||||||
| Shipping Weight | 2100 LB | 2500LB | |||||||
| Shipping package size | 146″L x 33″W x21″H | 117″L x 22″W x 50″H | |||||||
| Arm Assembly | Symmetrical Arm Assembly | Symmetrical Arm Assembly | |||||||
| Front Arms | 2 stages reach from 32 5/32″ to 49 7/32″ | Straight Front 3 Stage reach from 37 1/2″ to 72 3/16″ | |||||||
| Back Arms | 2 stages reach from 32 5/32″ to 49 7/32″ | Straight Rear 3 Stage reach from 37 1/2″ to 72 3/16″ | |||||||
| Column Steel Thickness | 1/4″ | 1/4″ | |||||||
| Carriage Steel Thickness | 1/4″ | 1/4″ | |||||||
| Carriage Yoke Thickness | 13/32″ | 3/4″ | |||||||
| Arm Steel Thickness | 5/16″ | 5/16″ | |||||||
| Base Plate Steel Thickness | 5/8″ | 13/16″ | |||||||
| Truck Adapters (Height Extensions) | Two Sets: 2 3/4″ Tall and 5 1/2″ Tall | Two Sets: 3″ Tall and 6″ Tall | |||||||
| Other Parts Included |
|
||||||||
| Optional Parts | 2 3/4″ and 6″ Tall Truck Adapters | ||||||||
| Concrete Requirement | 6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below) | ||||||||
| Model | HW-12HD (This Model) |
AP-12SR (for Comparison) |
|||||||
Features
- Direct drive mode
- Durable hydraulic system
- Easy to operate and maintain
- Single point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage and Coloumn Material Q235B Steel
- Lifting operation by pressing “UP” button on motor
- Manual lowering operation by pressing lever
- Relief valve built in power pump to prevent overloading

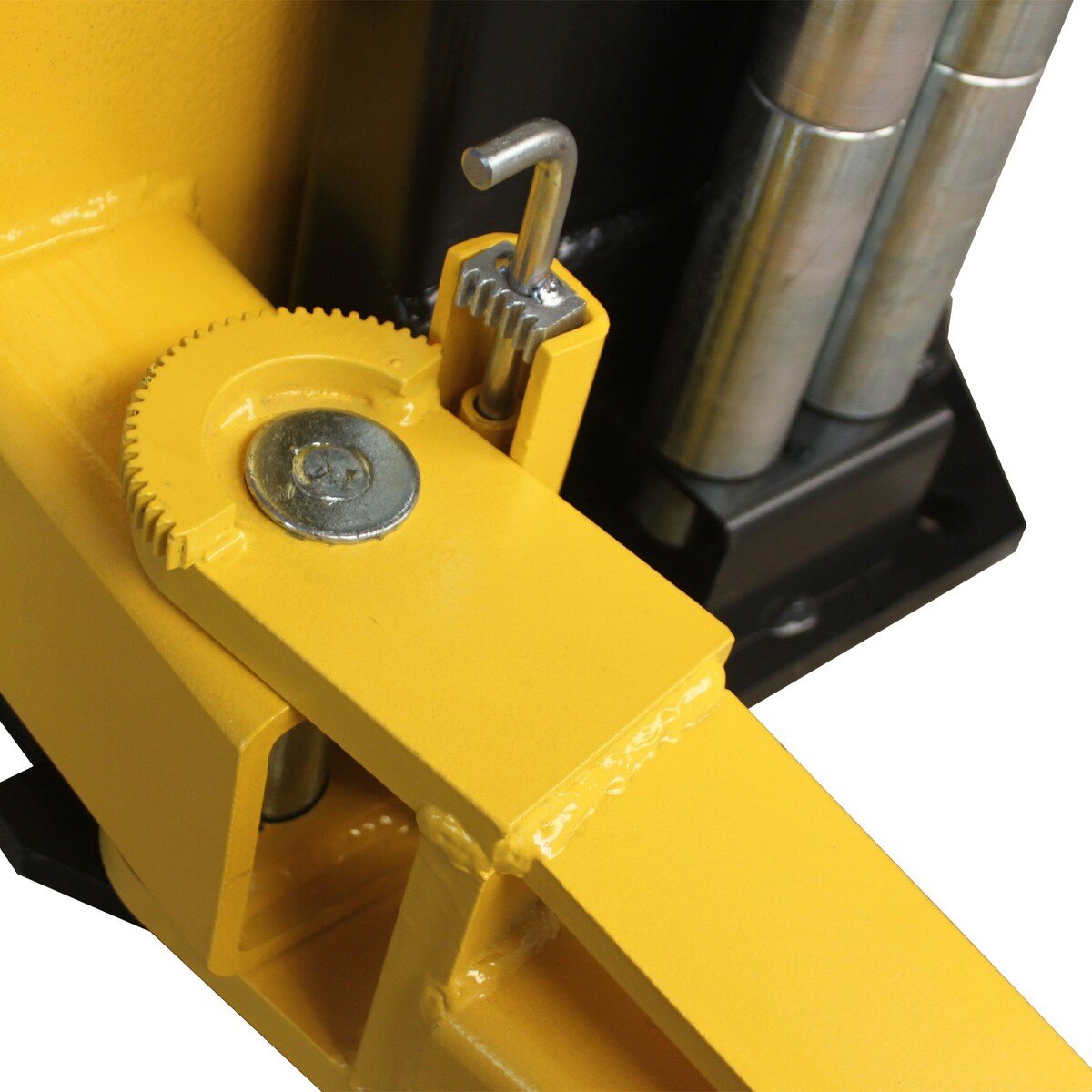

- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope

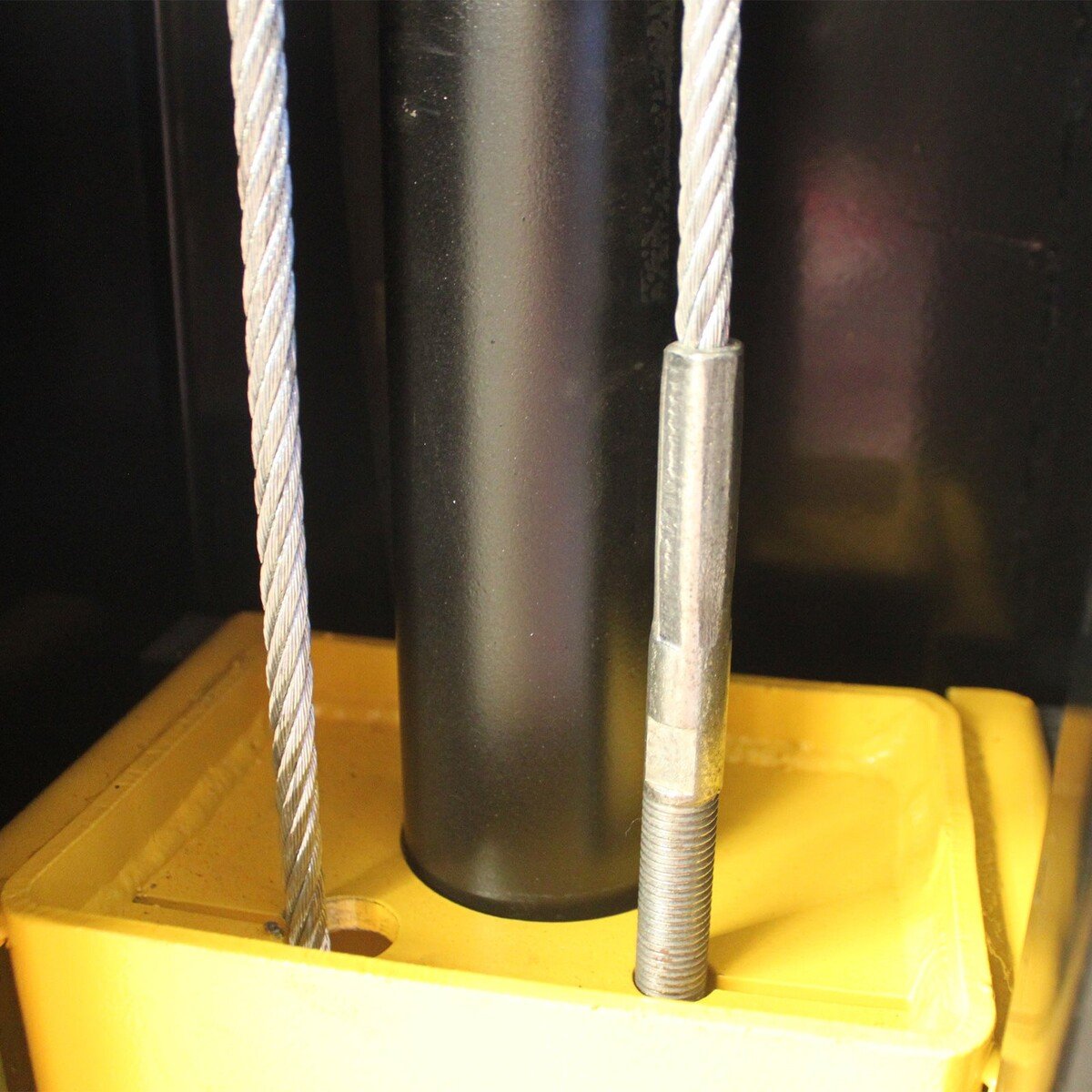

- Heavy duty 3/8″ diameter cable and 3″ pulley that reduce high stress on synchronization process and increase cable life
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
All 2-Post Car Lifts
Shipping
Delivery time: 3–4 business days.
Please see our Shipping Policy for delivery details. Car lifts ship by freight truck; a forklift or similar equipment is needed to unload them.
Lifts that are anchored to the floor require level concrete of adequate thickness and strength — check the manufacturer’s installation manual before ordering.
