APlusLift HW-10KOH-A 10,000 lb. 2-Post Overhead Car Lift

Name: APlusLift HW-10KOH-A 10,000 lb. 2-Post Overhead Car Lift - Frikum
SKU: 0312-10086
Price: 2099.00 USD
Availability: InStock

APlusLift

Authorized Retailer

100% genuine products from official brands

Official Manufacturer Warranty

Every product includes the manufacturer's warranty

Secure Payment

Verified U.S. business · SSL encrypted checkout

90-Day Return Policy

Easy returns — see policy page

Original price was: $2,929.00.Current price is: $2,099.00.

In Stock Brand New Tax Included ↩ 90-Day Free Returns — no restocking fees, no hassle.

SKU: 0312-10086 Category: Car Lifts Brand: APlusLift

Compare

Add to wishlist

Description

Products Description

APlusLift HW-10KOH-A 10,000 lb. 2-Post Overhead Car Lift

All 2-Post Car Lifts

Industry-leading 3-YEAR WARRANTY

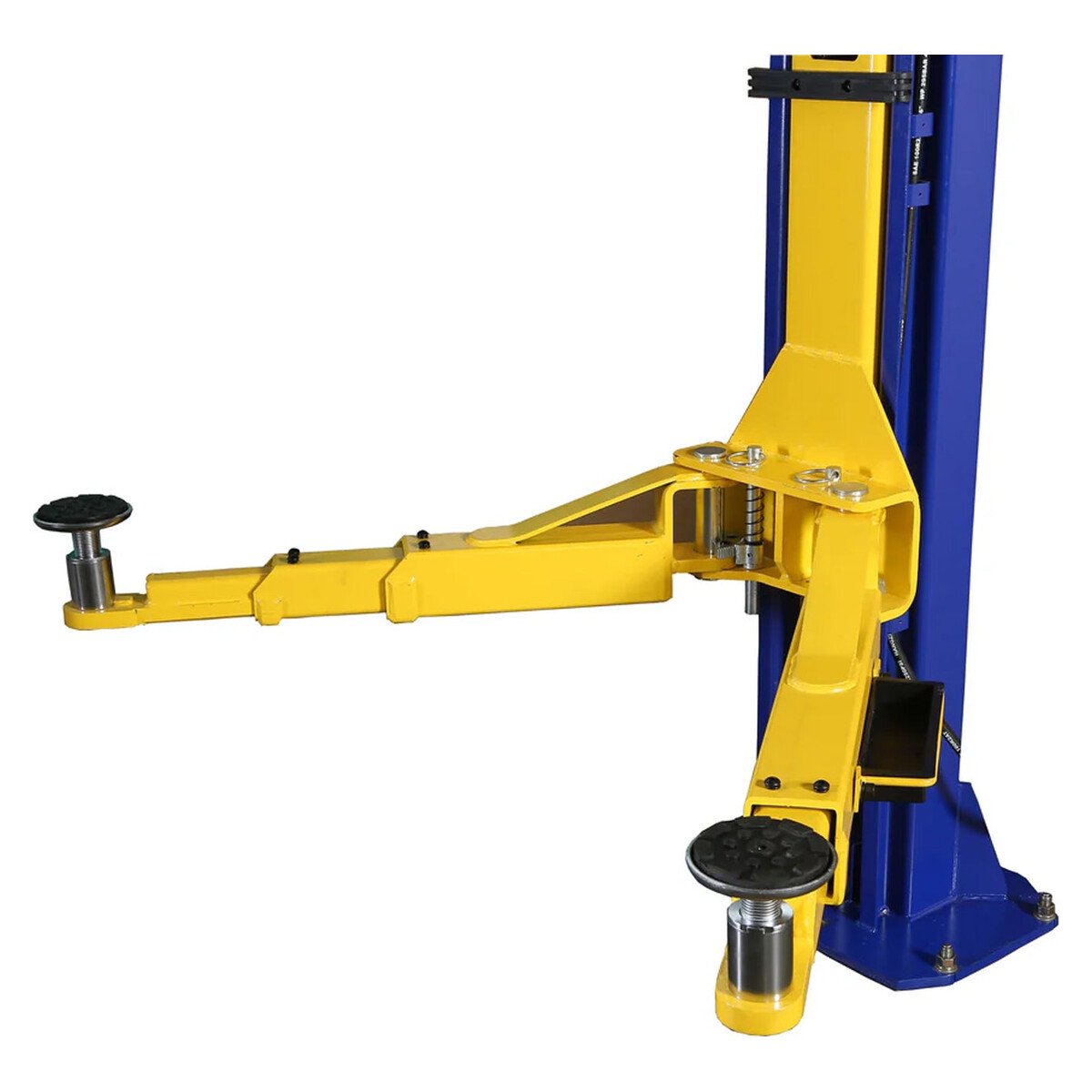

Combo (symmetrical and asymmetrical) Arm Assembly with Adjustable Screw Pads!
CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
One Set of 4″ Tall Truck Adapters Included; 6’9″ Lift Height Maximum with Truck Adapters
All Robot Welded Structure with Durable Powder Coated Finish

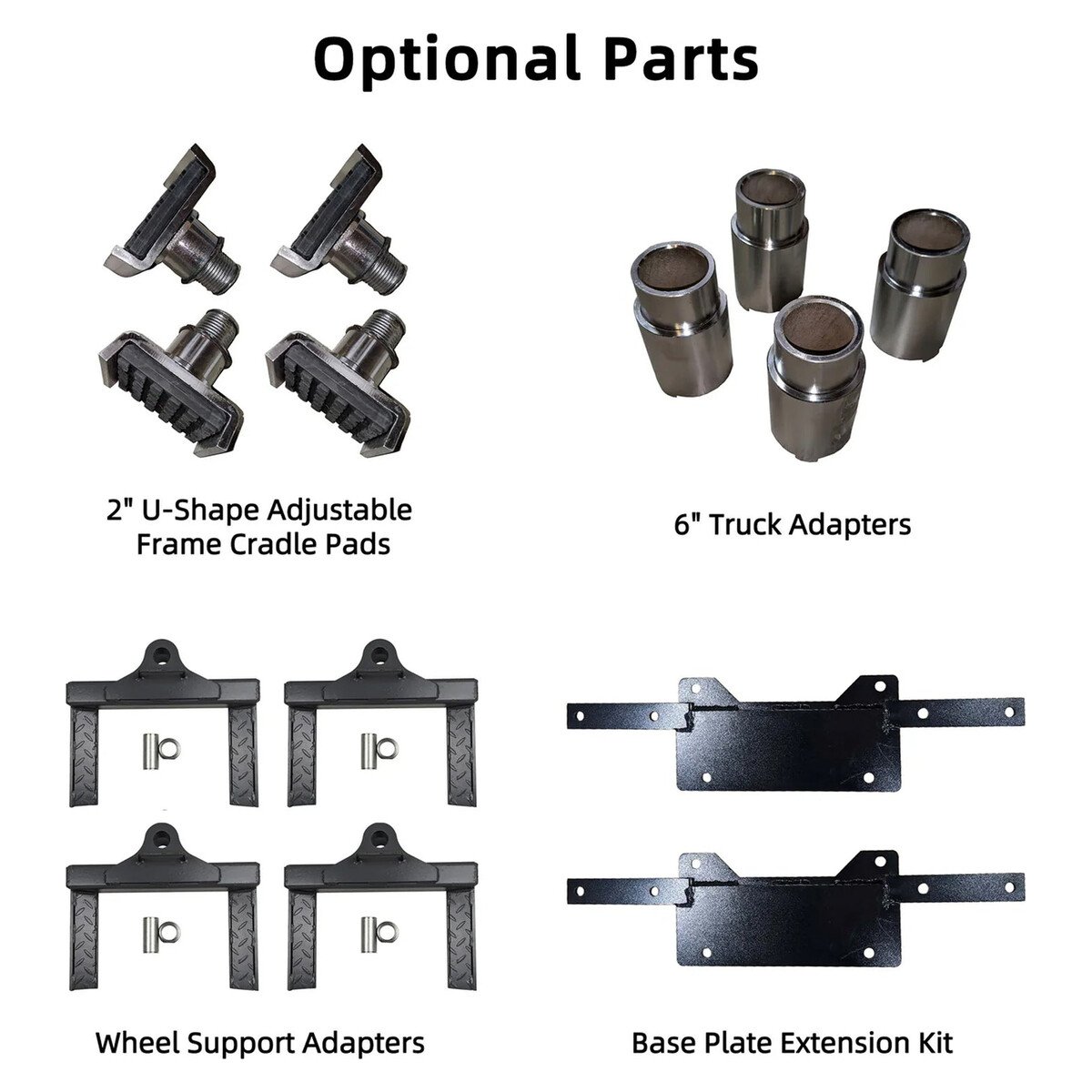

Optional Parts: 2″ Adjustable Frame Cradle Pads, 6″ Truck Adapters, Wheel Support Adapters, Base Plate Extension Kit, and 2 Ft Height Extension Kit.

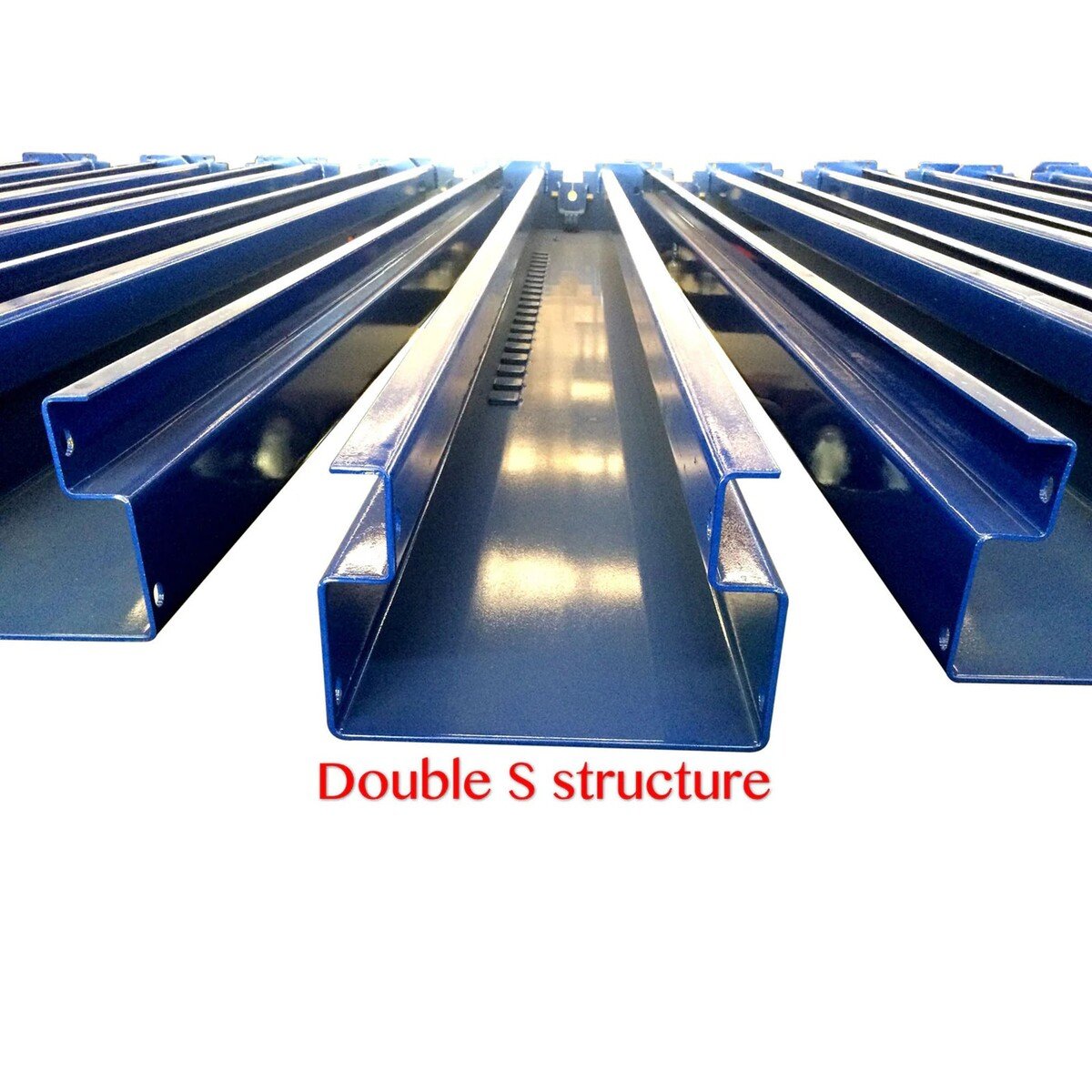

APlusLift HW-10KOH-A car lift (auto hoist) is one of the most affordable overhead car lifts built with quality materials and good workmanship. The lift has a strong double “S” column design to support 10,000 LB capacity. We also have an HW-10ASY 10000LB overhead car lift with a single-point release.

We are proud to offer an industry-leading 3-year warranty for all parts! We have all replacement and optional parts available for our lifts. We welcome suggestions to improve our products and service!

Specifications
Model	HW-10KOH-A (This Model)	HW-10ASY (for Comparison)
Style	Overhead	Overhead
Lock Release	Double Point Release	Single Point Release
Warranty	3 Years (36 months)	3 Years (36 months)
Lifting Capacity	10,000 LB	10,000 LB
Overall Height	143 3/16″	143 3/16″
Overall Width	134 5/16″	139 1/8″ (standard) 140 15/32″ (post rotated)
Maximum Lift height with Truck Adapters	81″	81″
Maximum Lift height without Truck Adapters	75″	75″
Maximum lift height from bottom of the arm to the ground	71″	71″
Minimum Height of Adjustable Pads from Ground	4″	4″
Drive Through Width (Carriage to Carriage)	100″	104″ (symmetric) 97″ (asymmetric)
Column Inside to Inside	109″	113″ (symmetric) 107″ (asymmetric)
Column Outside to Outside	123″	127″ (symmetric)
Column Cross Section	11″L x 7″W	11″L x 7″W
Driving Mode	Dual hydraulic cylinders, chain drive	Dual hydraulic cylinders, chain drive
Motor	220V Single Phase 3HP 10A (recommend a 20A breaker)	220V Single Phase 3HP 10A (recommend a 20A breaker)
Hydraulic Oil	3-5 gallons AW32/AW46 (not included)	3-5 gallons AW32/AW46 (not included)
Time to full rise	50 seconds	50 seconds
Shipping Weight	1470 LB	1470 LB and 120 LB
Shipping package size	113″L x 22″W x 40″ H	113″L x 22″W x 40″H (Car Lift) 38″L x 17″W x 14″ H (2 ft Height Extension Crate)
Concrete Requirement	6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below)

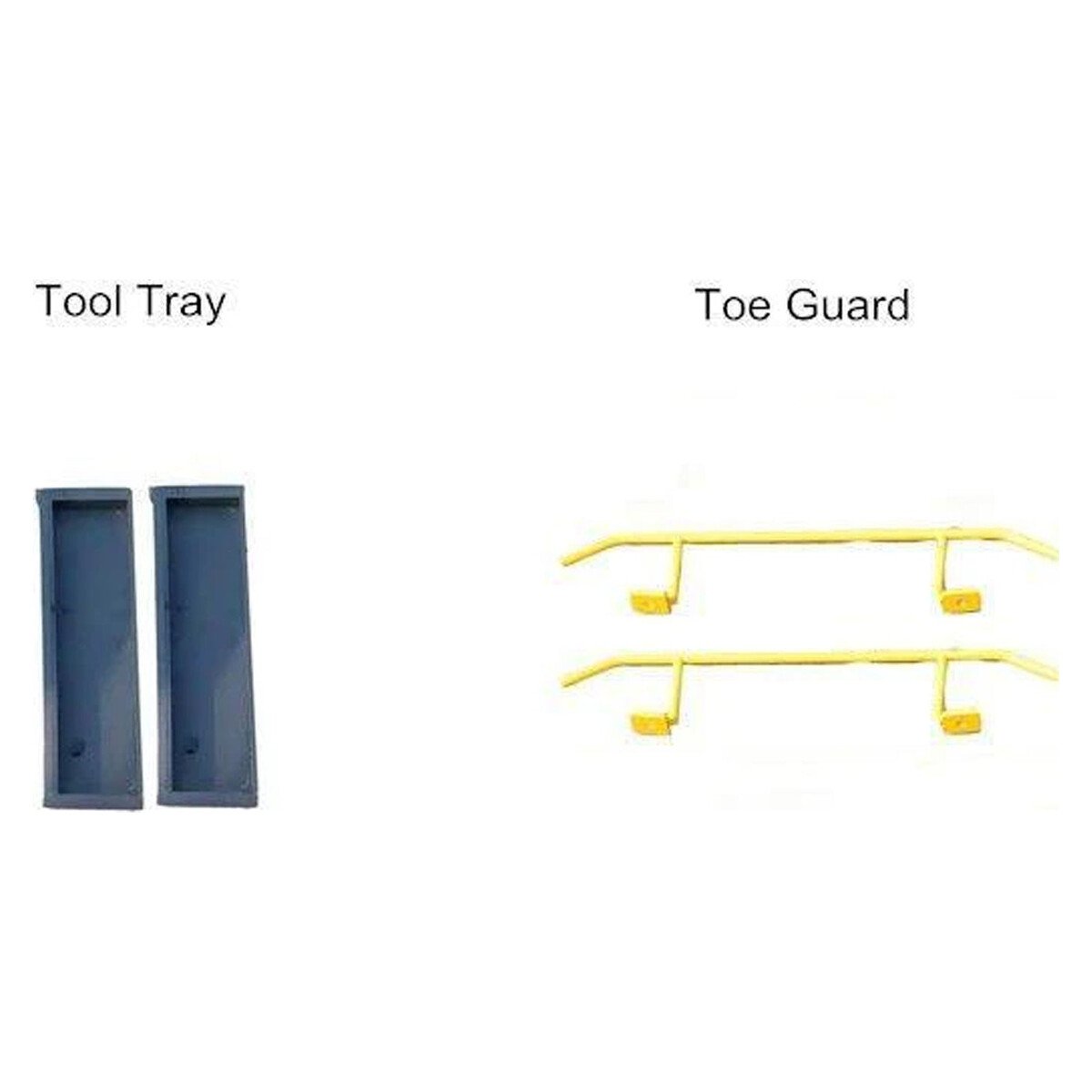

Parts Included	4 pieces of adjustable screw pads 4 pieces of 4″ tall truck adapters (height extensions) 10 anchor bolts 10 shims 2 tool trays 2 toe guards
Optional Parts	2 3/4″ and 6″ Tall Truck Adapters
Arm Assembly	Combo (symmetrical and asymmetrical) Arm Assembly

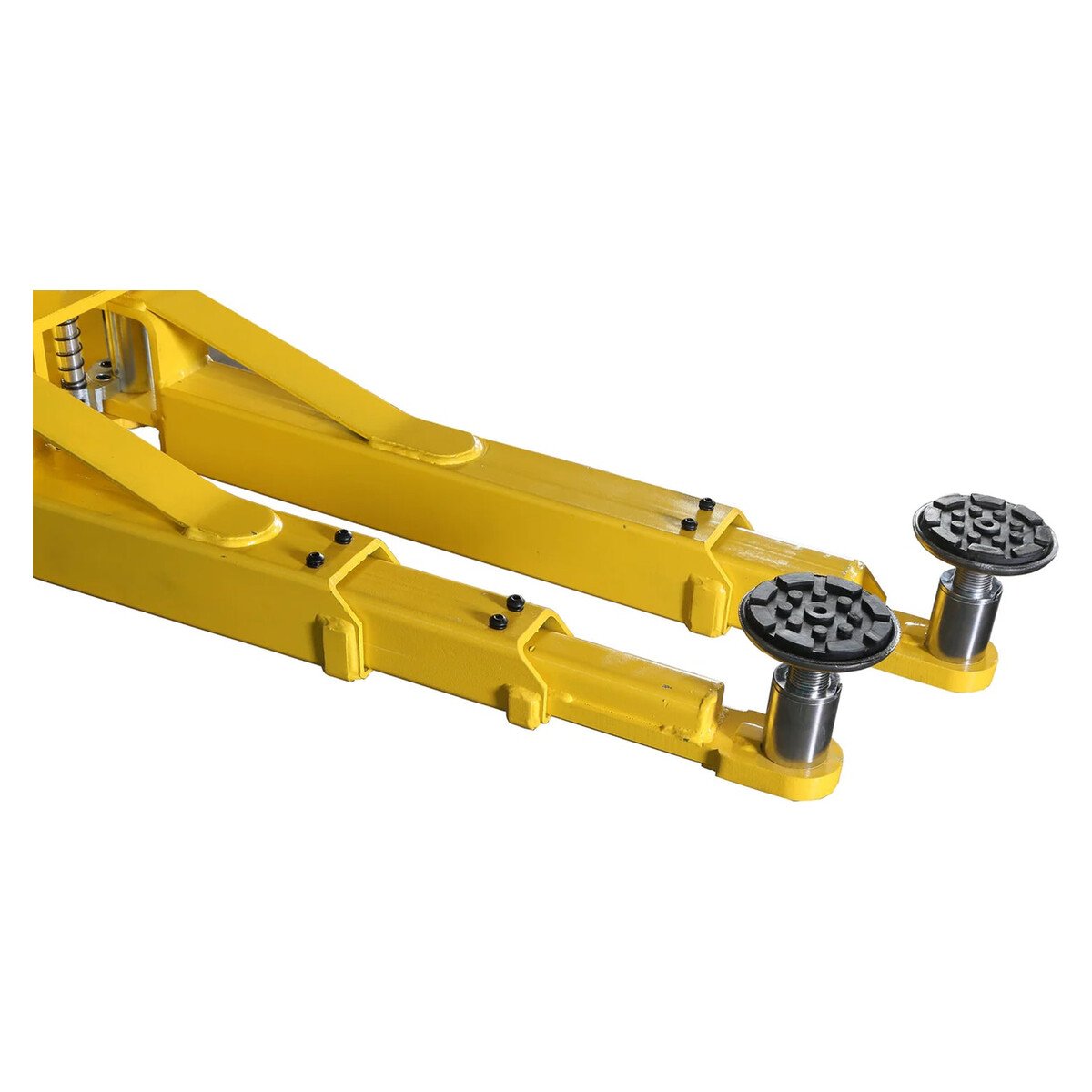

Front Arms	Straight Front 3 Stage reach from 22 7/8″ to 42 5/8″
Back Arms	Straight Rear 2 Stage reach from 33 5/8″ to 52 7/8″
Column Steel Thickness	13/64″
Carriage Steel Thickness	15/64″
Carriage Yoke Thickness	9/16″
Arm Steel Thickness	15/64″
Base Plate Steel Thickness	5/8″
Model	HW-10KOH-A (This Model)	HW-10ASY (for Comparison)

Features

CE Certified Lift Structure and Hydraulic System
Third-party tested with a dynamic load capacity of 115%
Third-party tested with a static load capacity of 150%
Durable hydraulic system
Easy to operate and maintain

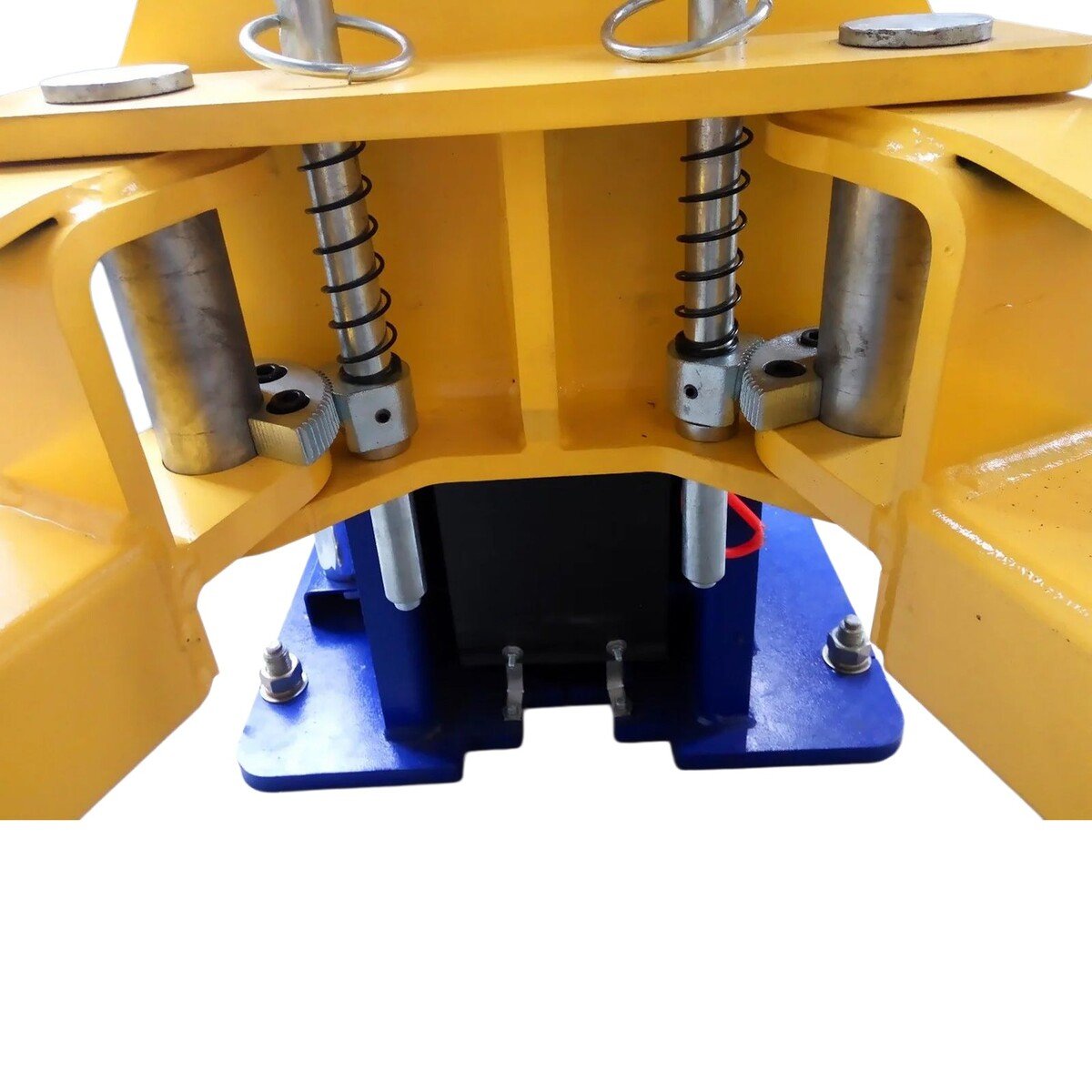

Double-point safety lock release
Double seal rings protecting PU material
Carriage material Q355 (ASTM A572), stronger than normal Q235 steel
Lifting operation by pressing the “UP” button on the motor
Manual lowering operation by pressing the lever

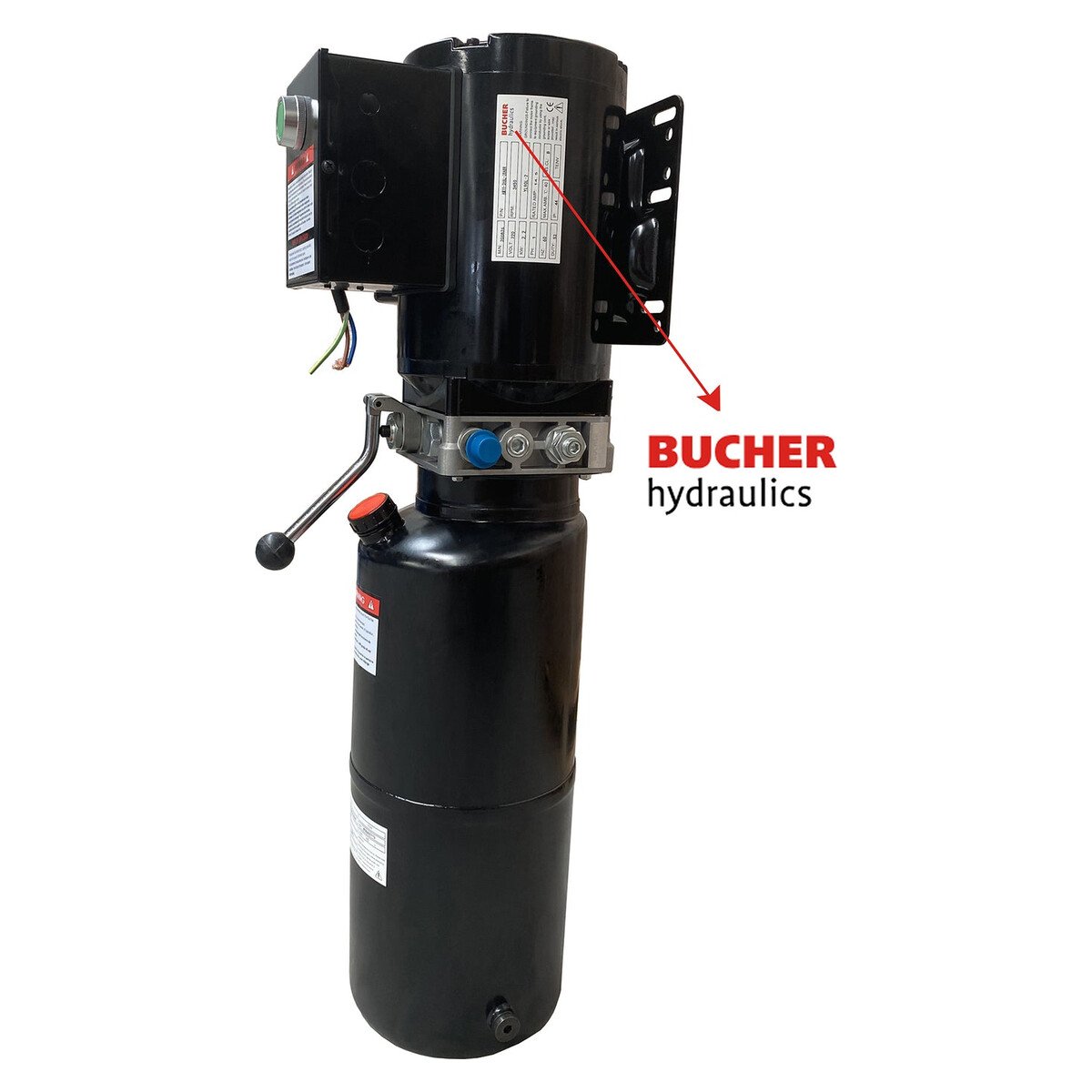

Relief valve built-in power pump to prevent overloading
Automatic arm lock restraints
Relief valve built-in power pump to prevent overloading
Door guard protection rubber
Up-limit switch to protect cylinders working stroke used in safe length scope
Heavy duty 3/8″ diameter cable and 5″ pulley that reduce high stress on synchronization process and increase cable life
Ultra-high molecular self-lubricating nylon slider that ensures carriage smooth moving up and down

All 2-Post Car Lifts

Shipping

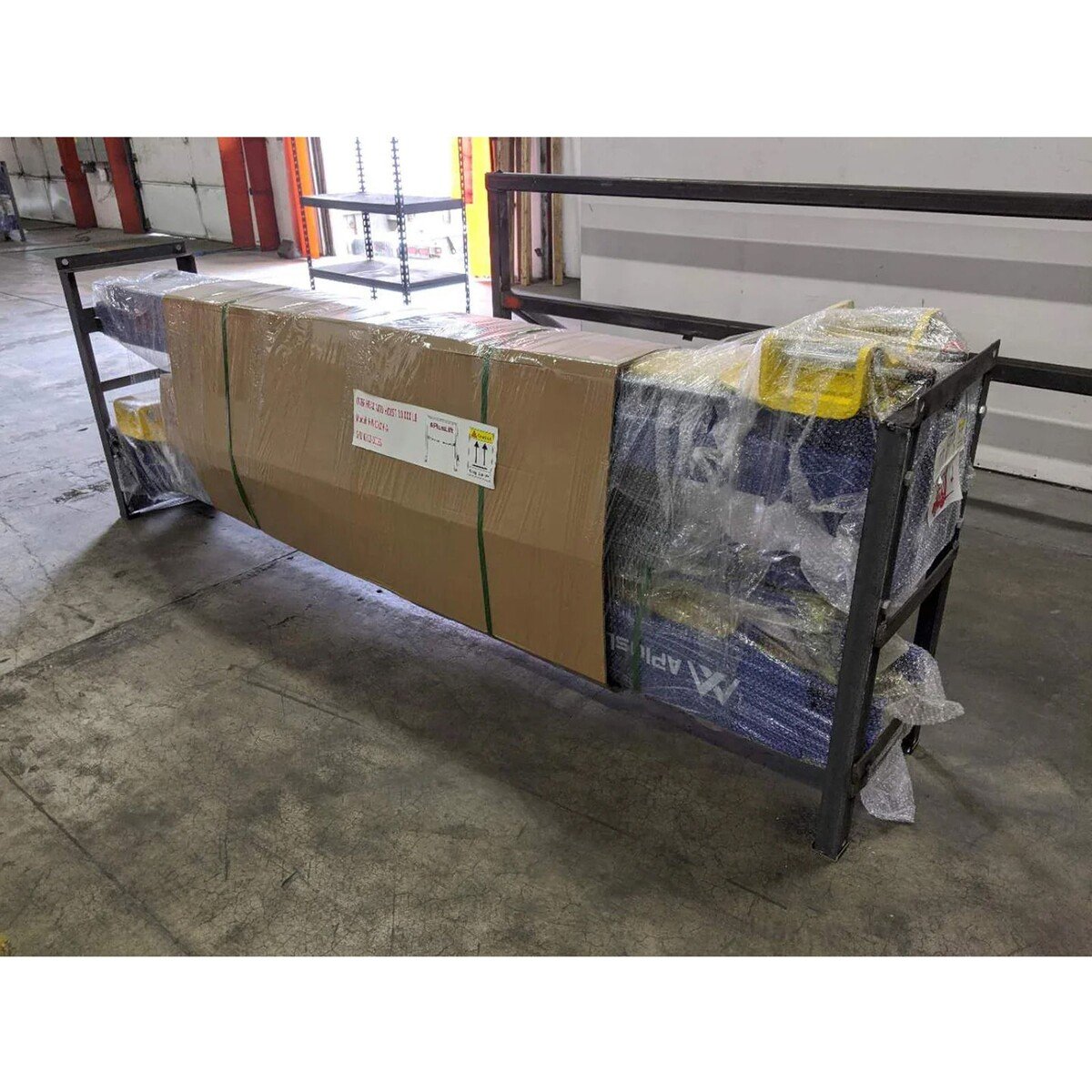

Please see our Shipping Policy for delivery details. Car lifts ship by freight truck; a forklift or similar equipment is needed to unload them.

Lifts that are anchored to the floor require level concrete of adequate thickness and strength — check the manufacturer’s installation manual before ordering.
