Description
Products Description
APlusLift HW-10KBP-A 10,000 lb. 2-Post Floor Plate Car Lift
All 2-Post Car Lifts
-
Industry leading 3 YEAR WARRANTY
-

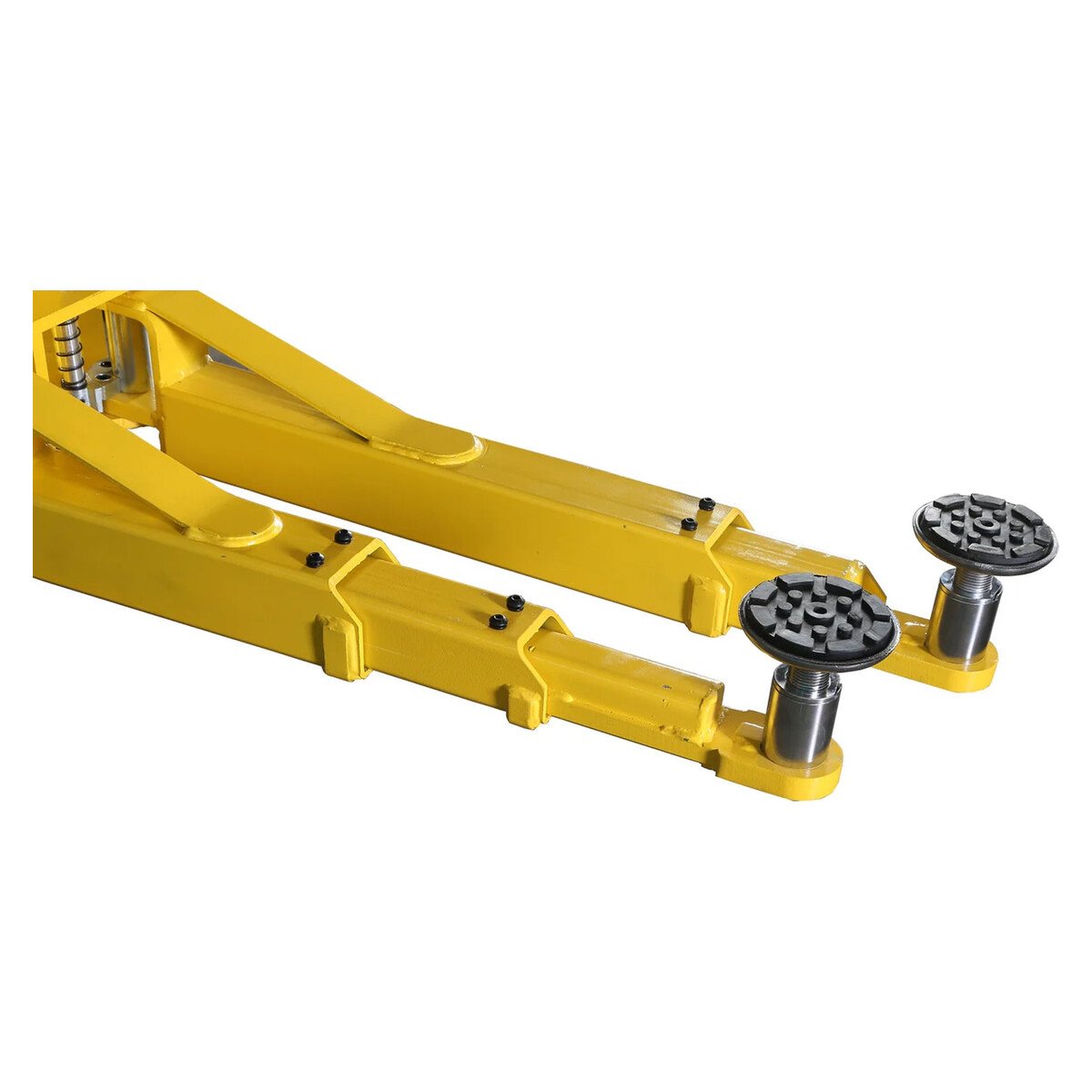

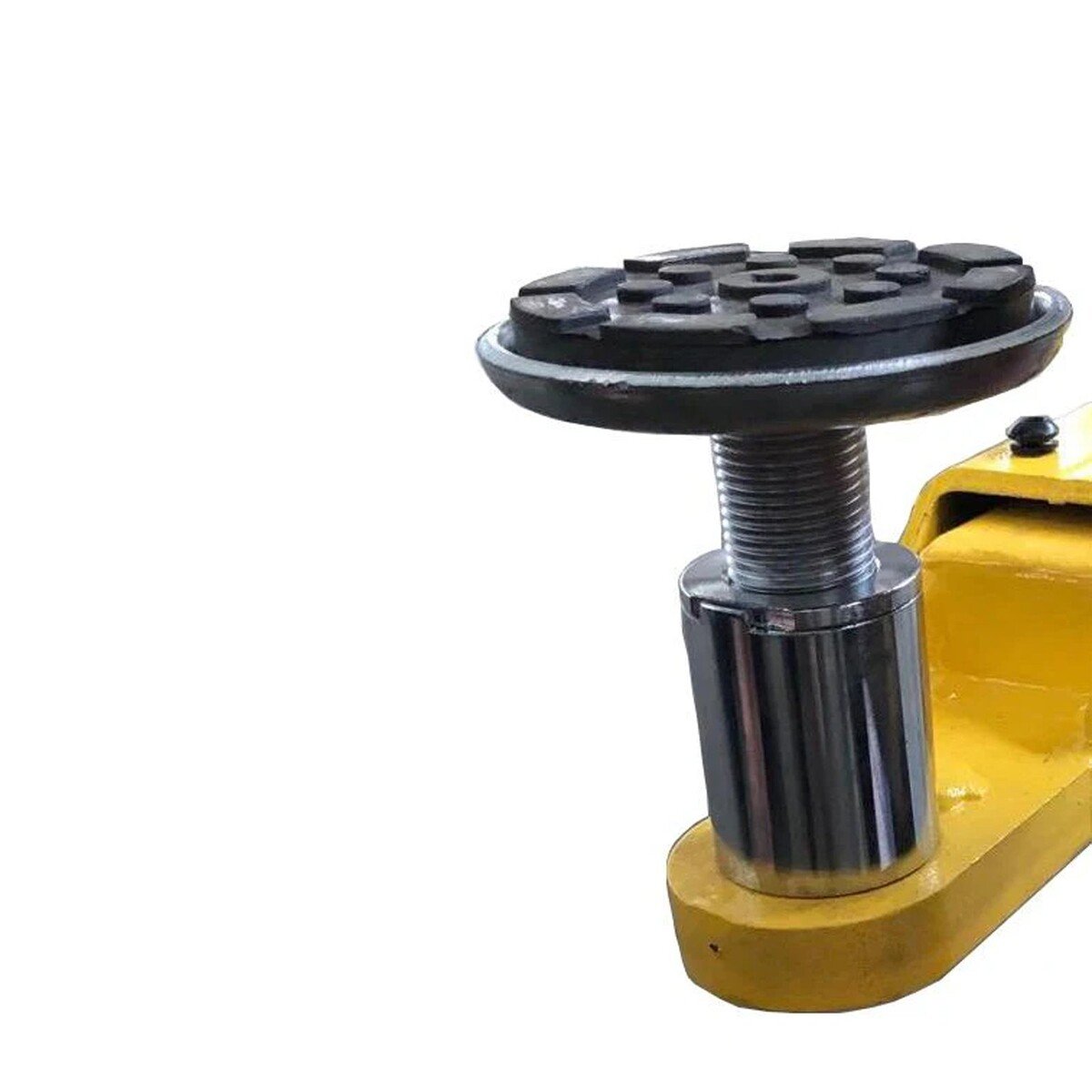

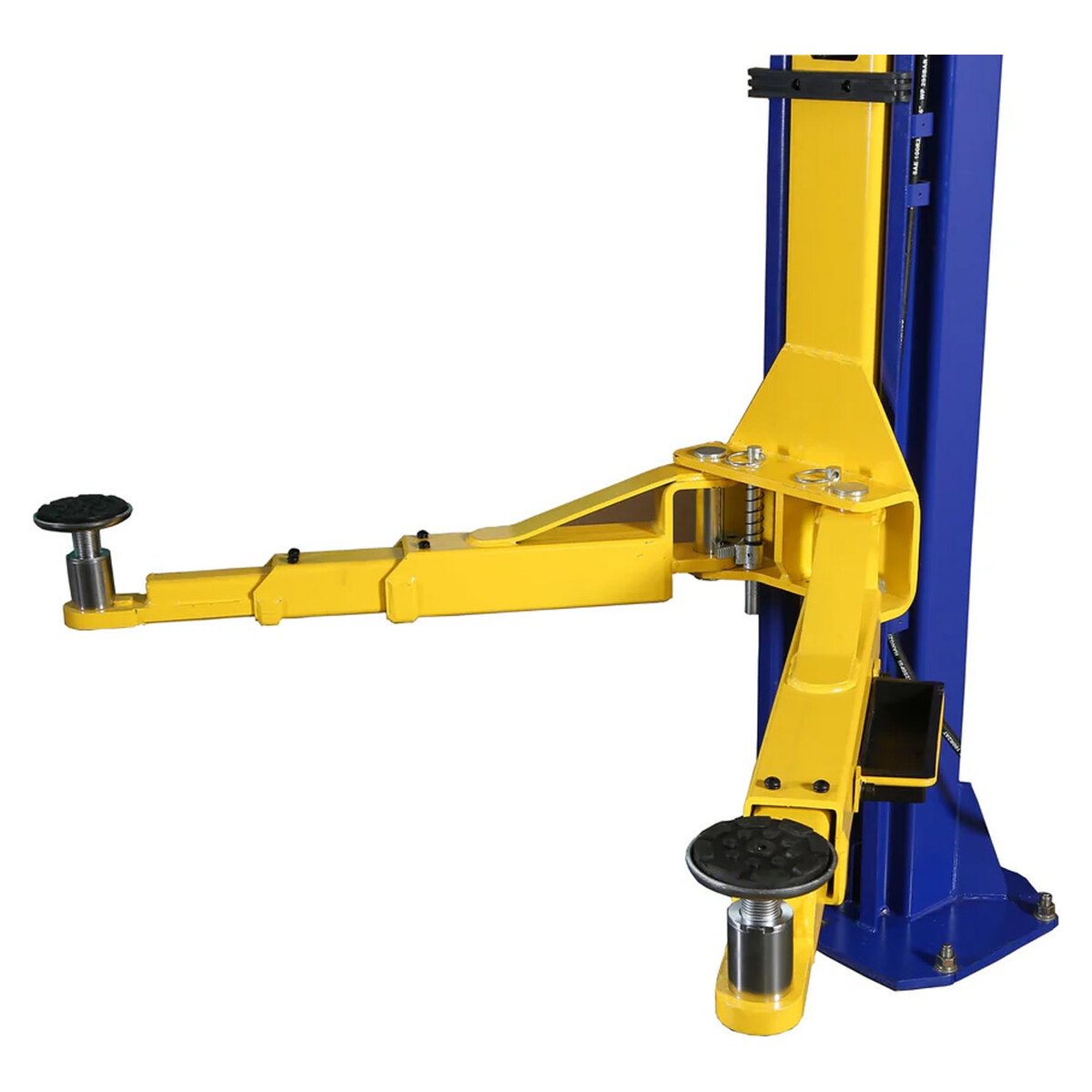

Combo (symmetrical and asymmetrical) Arm Assembly with Adjustable Screw Pads!
-
CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
-
One Set of 4″ Tall Truck Adapters Included; 6’9″ Lift Height Maximum with Truck Adapters
-
All Robot Welded Structure with Durable Powder Coated Finish
-
Optional Parts: 2″ U-Shape Adjustable Frame Cradle Pads, 6″ Truck Adapters, Wheel Support Adapters, and Base Plate Extension Kit.

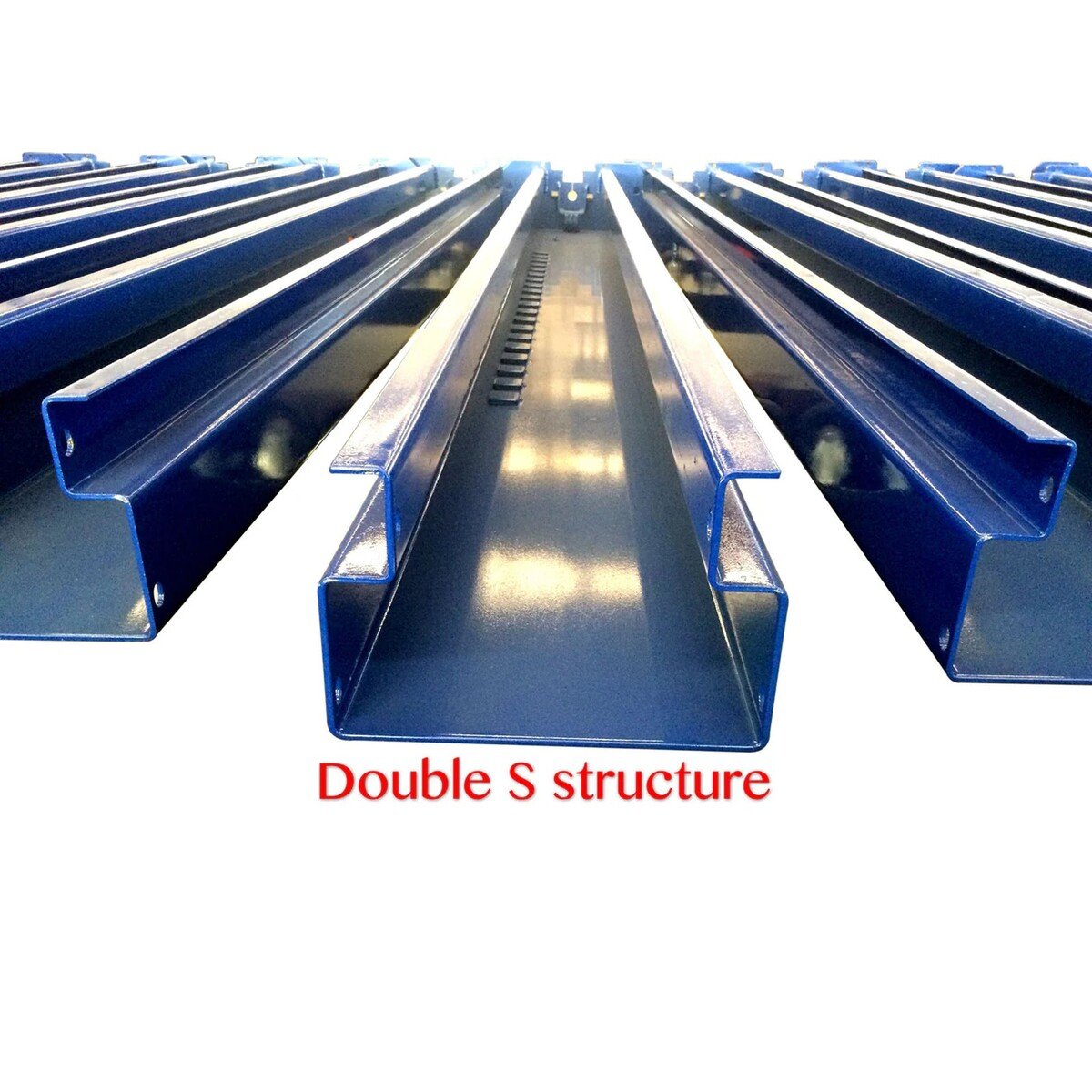

APlusLift HW-10KBP-A car lift (auto hoist) is one of the most affordable floor plate car lifts built with quality materials and good workmanship. The lift has a strong double “S” column design to support 10,000 LB capacity.
We are proud to offer an industry leading 3 year warranty for all parts! We have all replacement and optional parts available for our lifts. We welcome suggestions to improve our products and service!
Specifications |
|||||||||
| Model | HW-10KBP-A (This Model) |
HW-10KOH-A for Comparison |
|||||||
| Style | Floor Plate | Overhead | |||||||
| Lock Release | Double Point Release | Double Point Release | |||||||
| Warranty | 3 Years (36 months) | 3 Years (36 months) | |||||||
| Lifting Capacity | 10,000 LB | 10,000 LB | |||||||
| Overall Height | 113 5/8″ | 143 3/16″ | |||||||
| Overall Width | 134 5/16″ | 134 5/16″ | |||||||
| Maximum Lift height with Truck Adapters | 81″ | 81″ | |||||||
| Maximum Lift height without Truck Adapters | 75″ | 75″ | |||||||
| Maximum lift height from bottom of the arm to the ground | 71″ | 71″ | |||||||
| Minimum Height of Adjustable Pads from Ground | 4″ | 4″ | |||||||
| Drive Through Width (Carriage to Carriage) | 100″ | 100″ | |||||||
| Column Inside to Inside | 109″ | 109″ | |||||||
| Column Outside to Outside | 123″ | 123″ | |||||||
| Column Cross Section | 11″L x 7″W | 11″L x 7″W | |||||||
| Floor Plate Cross Section | 10 5/8″W x 1 7/8″H | N/A | |||||||
| Driving Mode | Dual hydraulic cylinders, chain drive | Dual hydraulic cylinders, chain drive | |||||||
| Motor | 220V Single Phase 3HP 10A (recommend a 20A breaker) | 220V Single Phase 3HP 10A (recommend a 20A breaker) | |||||||
| Time to full rise | 50 seconds | 50 seconds | |||||||
| Hydraulic Oil | 3-5 gallons AW32/AW46 (not included) | 3-5 gallons AW32/AW46 (not included) | |||||||
| Shipping Weight | 1370 LB | 1470 LB | |||||||
| Shipping package size | 113″L x 22″W x 40″H | 113″L x 22″W x 40″H | |||||||
| Concrete Requirement | 6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below) | ||||||||
| Parts Included |
|
||||||||
| Optional Parts | 2 3/4″ and 6″ Tall Truck Adapters | ||||||||
| Arm Assembly | Combo (symmetrical and asymmetrical) Arm Assembly | ||||||||

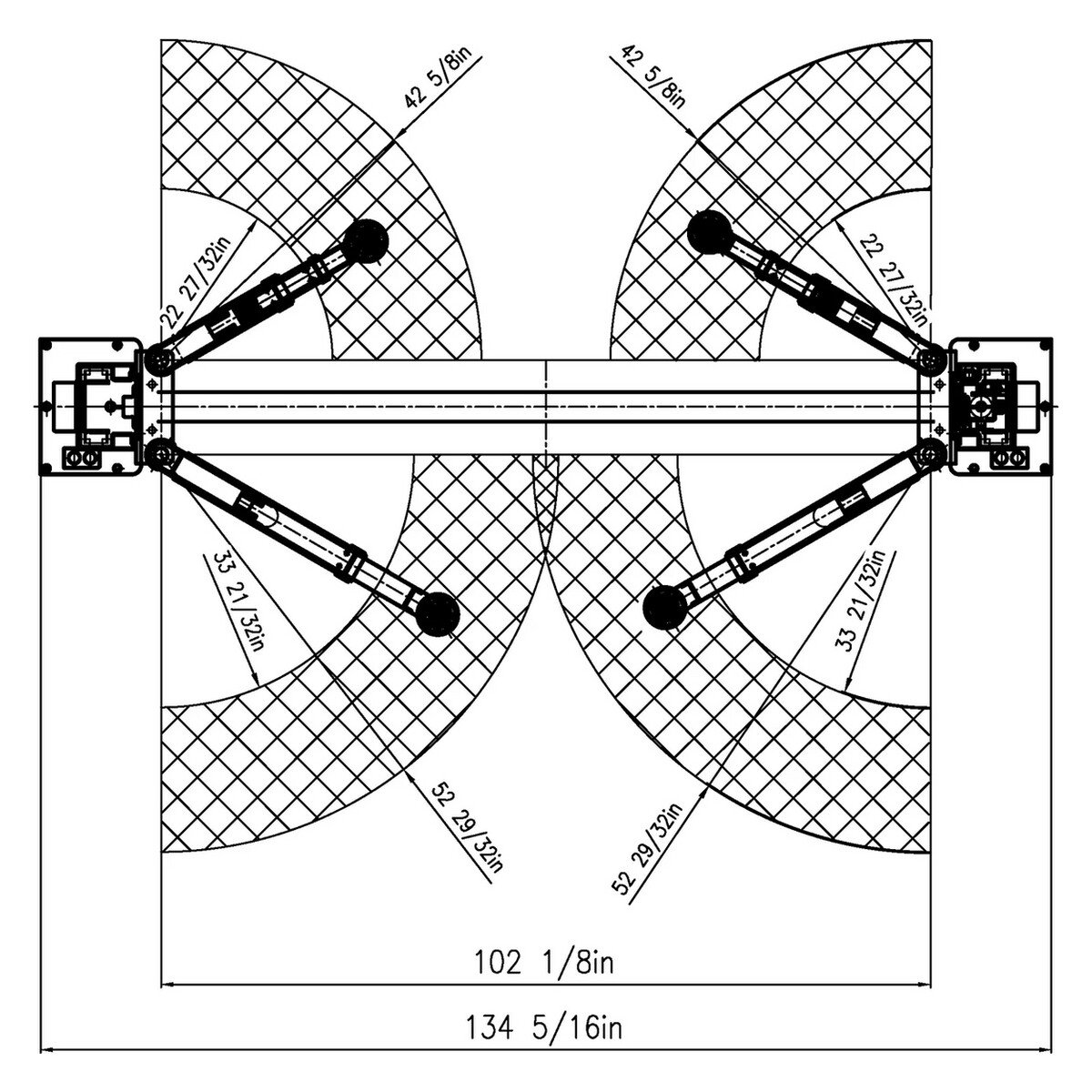

| Front Arms | Straight Front 3 Stage reach from 22 7/8″ to 42 5/8″ | ||||||||
| Back Arms | Straight Rear 2 Stage reach from 33 5/8″ to 52 7/8″ | ||||||||
| Column Steel Thickness | 13/64″ | ||||||||
| Carriage Steel Thickness | 15/64″ | ||||||||
| Carriage Yoke Thickness | 9/16″ | ||||||||
| Arm Steel Thickness | 15/64″ | ||||||||
| Base Plate Steel Thickness | 5/8″ | ||||||||
| Model | HW-10KBP-A (This Model) |
HW-10KOH-A for Comparison |
|||||||
Features
- CE Certified Lift Structure and Hydraulic System
- Third party tested with a dynamic load capacity of 115%
- Third party tested with a static load capacity of 150%
- Durable hydraulic system
- Easy to operate and maintain
- Double point safety lock release
- Double seal rings protecting PU Material
- Carriage material Q355 (ASTM A572), stronger than normal Q235 Steel

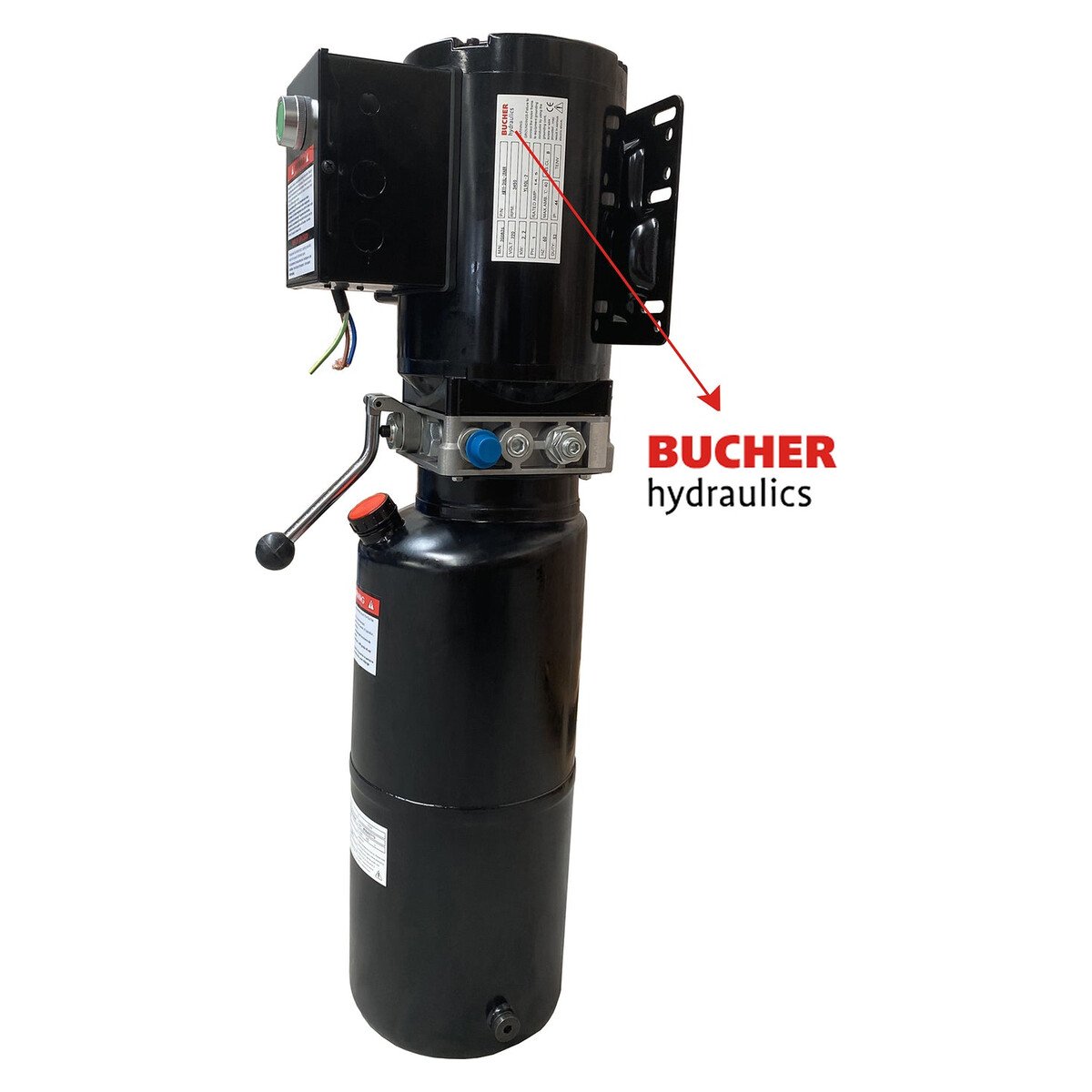

- Lifting operation by pressing “UP” button on motor
- Manual lowering operation by pressing lever
- Relief valve built in power pump to prevent overloading

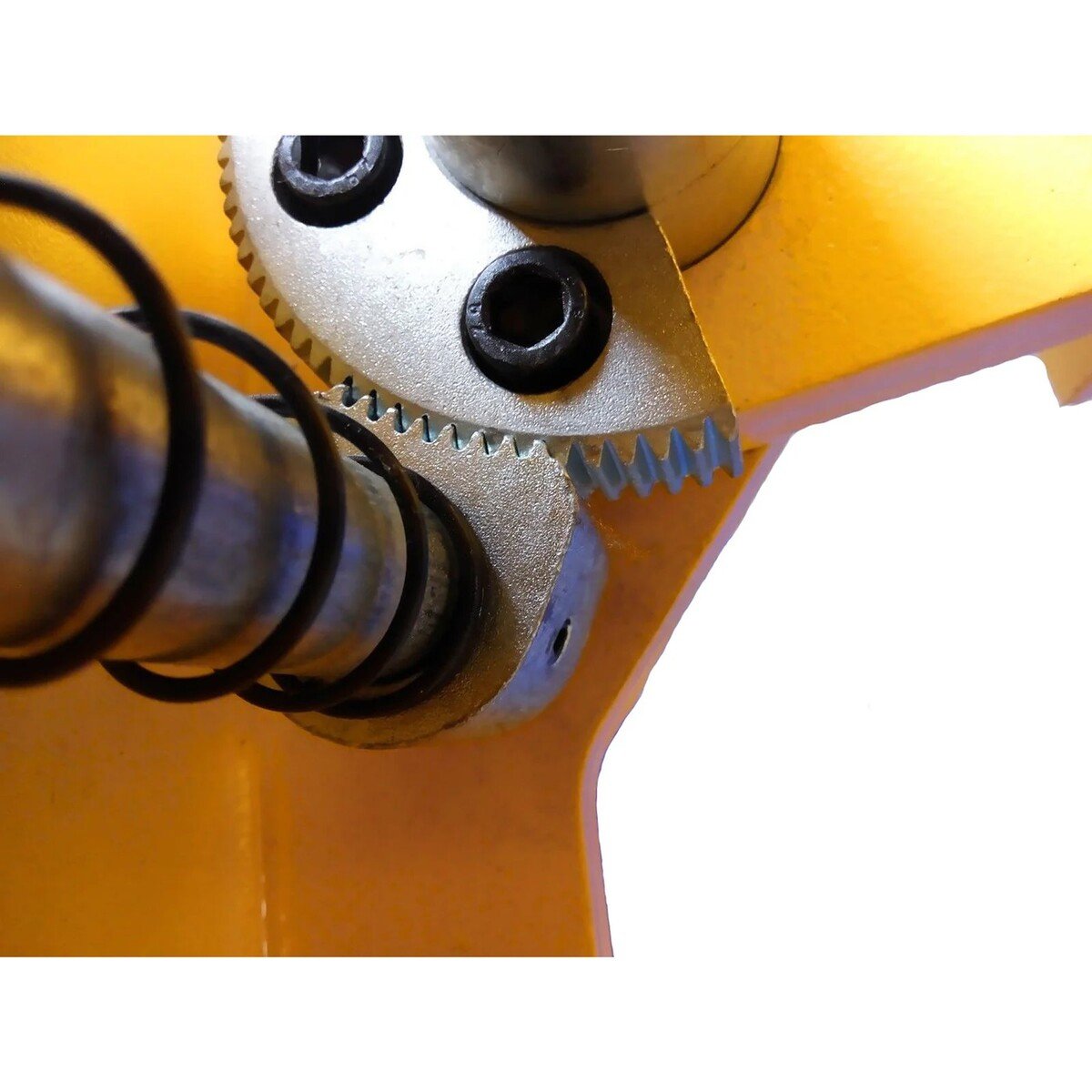

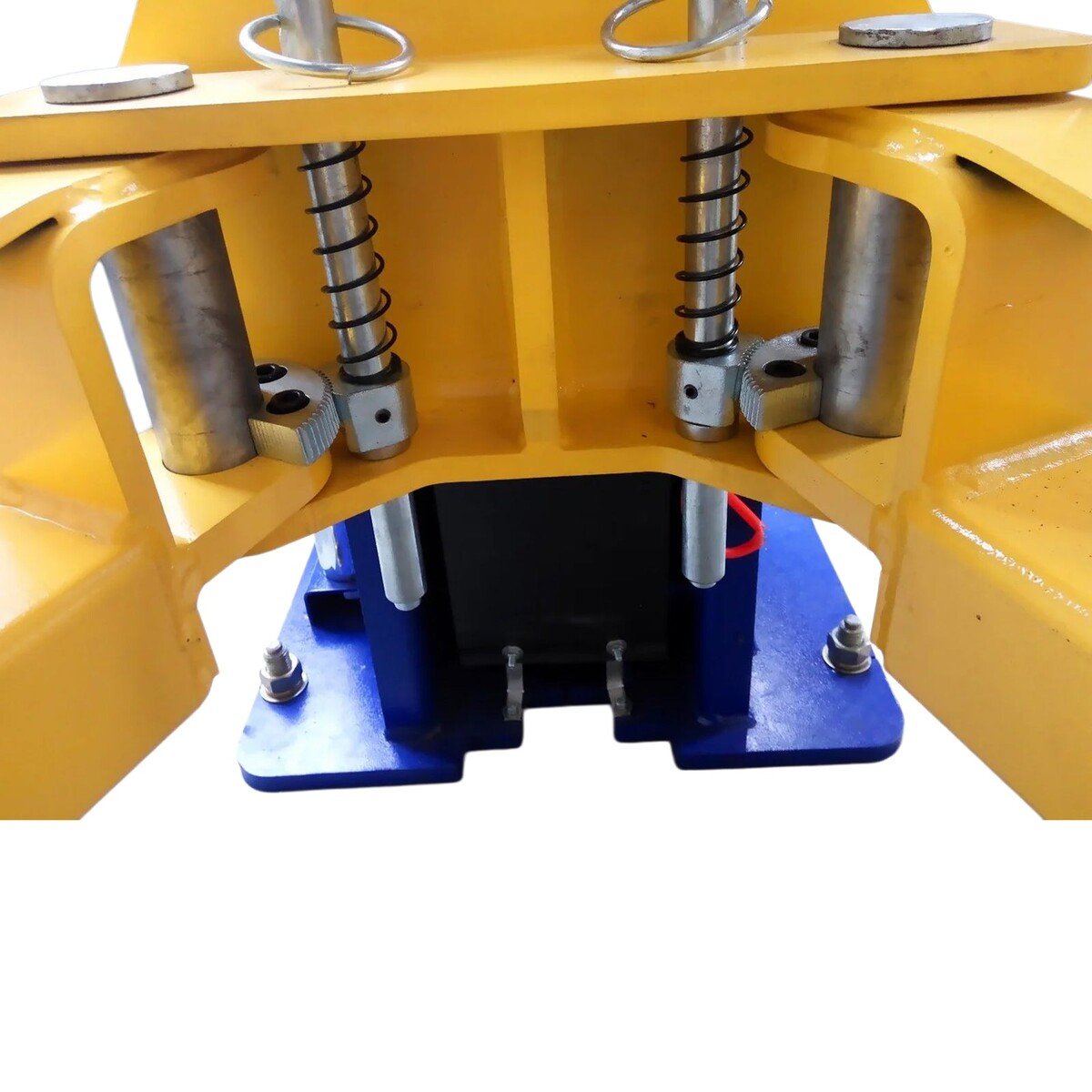

- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8″ diameter cable and 5″ pulley that reduce high stress on synchronization process and increase cable life
- Upgraded floor plate, beveled diamond plate steel 5/32″ with supporting bracket.
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
All 2-Post Car Lifts
Shipping
Delivery time: 3–4 business days.
Please see our Shipping Policy for delivery details. Car lifts ship by freight truck; a forklift or similar equipment is needed to unload them.
Lifts that are anchored to the floor require level concrete of adequate thickness and strength — check the manufacturer’s installation manual before ordering.
