Description

Products Description

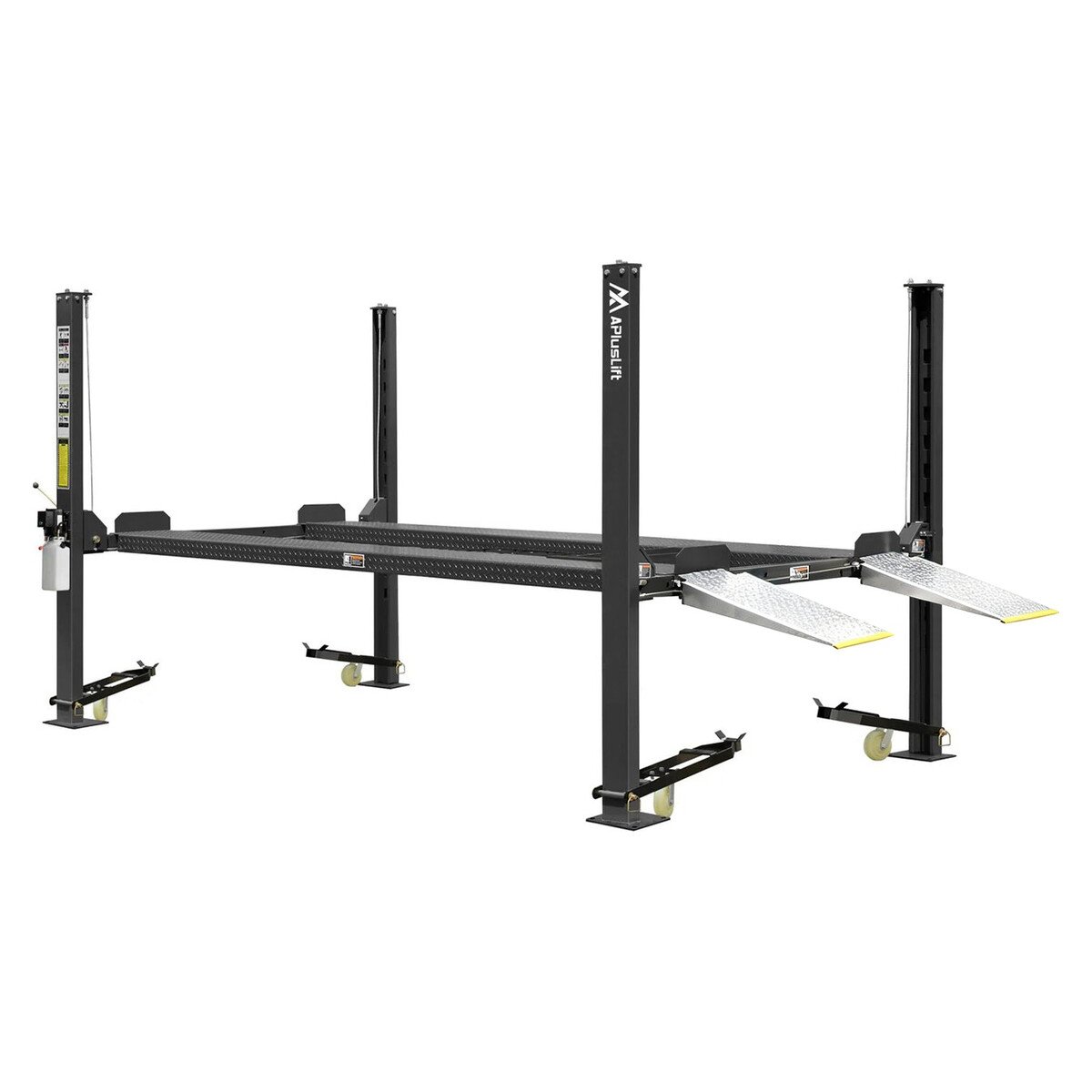

APlusLift Falcon AP-9H 9,000 lb. 4-Post Storage & Service Car Lift

All 4-Post Lifts and Jacks.

Industry leading 3 Year (36 Months) Warranty

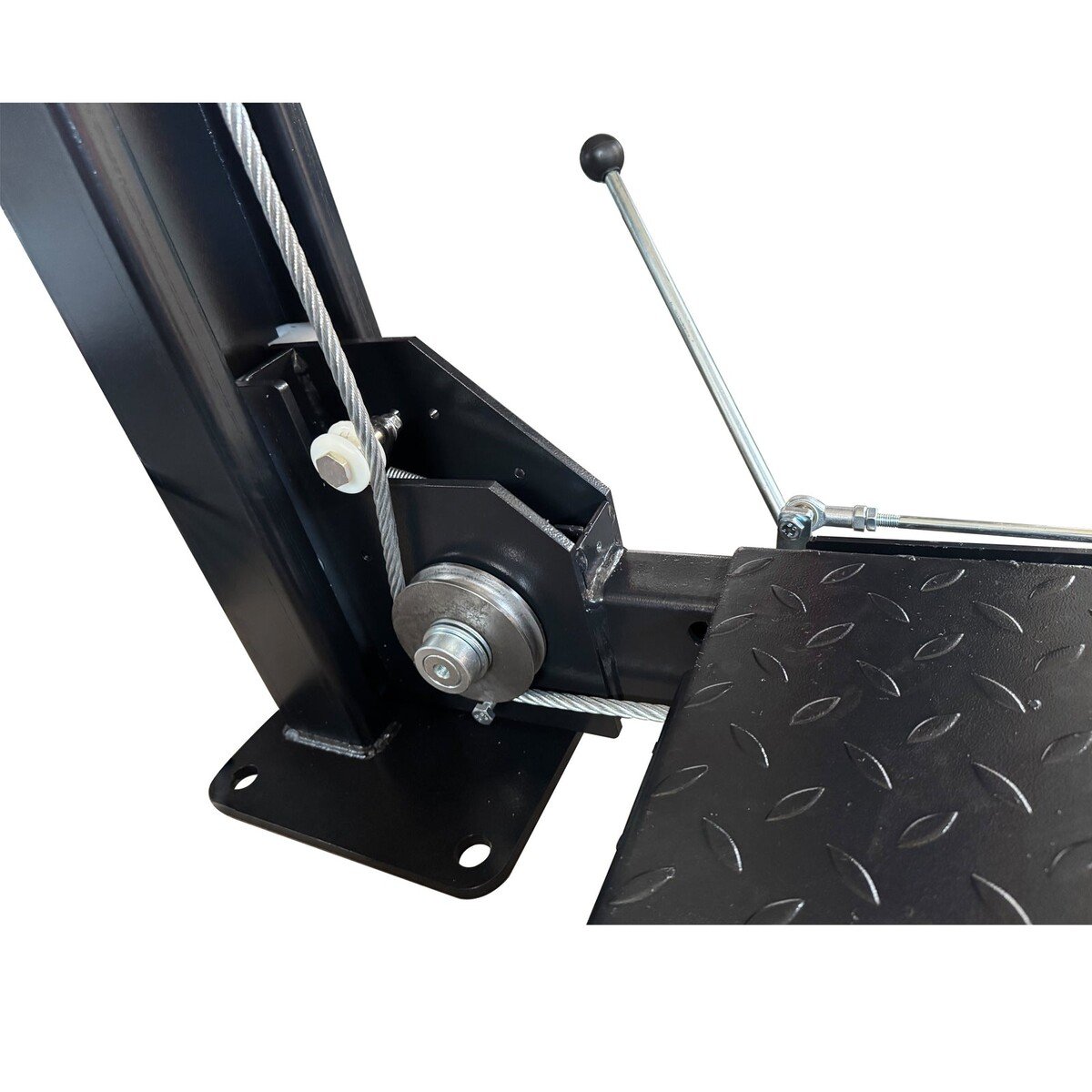

Secondary Slack-Cable Lock System for Fail-Safe Protection
Dedicated Hydraulic Return Line
Drive Through Width 93″ (AP-9H) and 98″ (AP-9H-XLT)

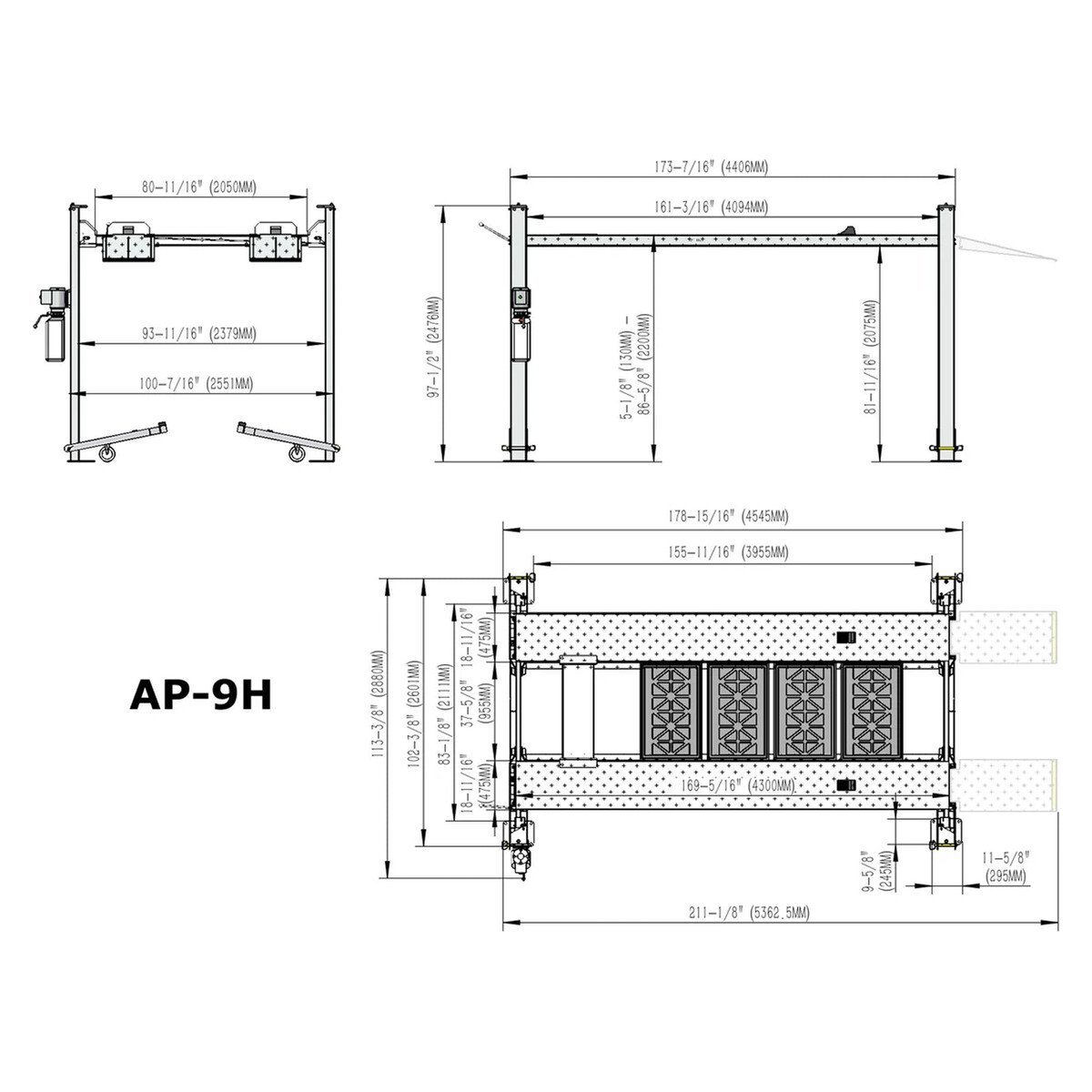

AP-9H Model Overall Dimensions: 179″L x 114″W x 98″H

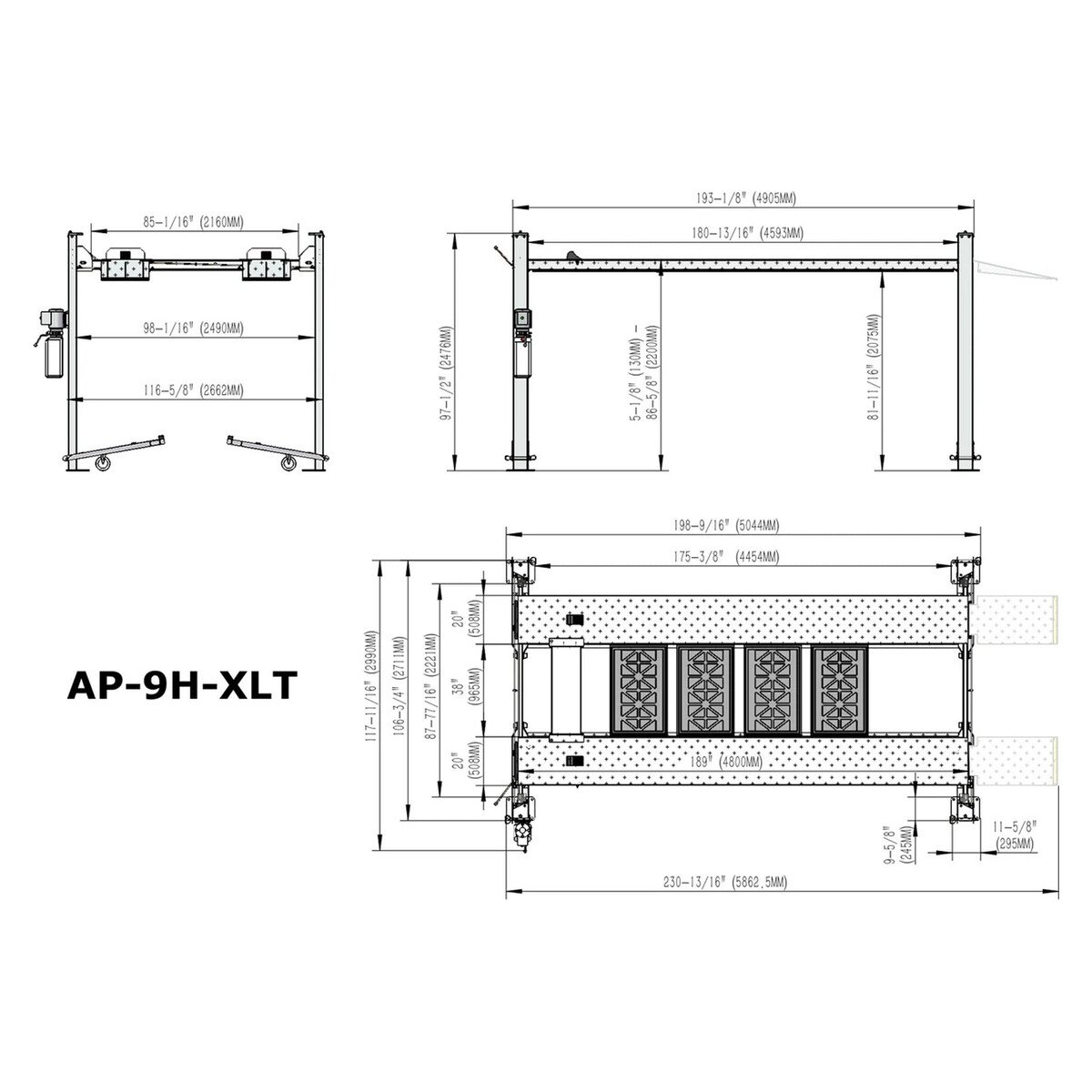

AP-9H-XLT Model Overall Dimensions: 199″L x 118″W x 98″H
Free Caster Kit, Jack Tray, Drip Trays, Removable Aluminum Approach Ramps, and Power cord with Plug
CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity

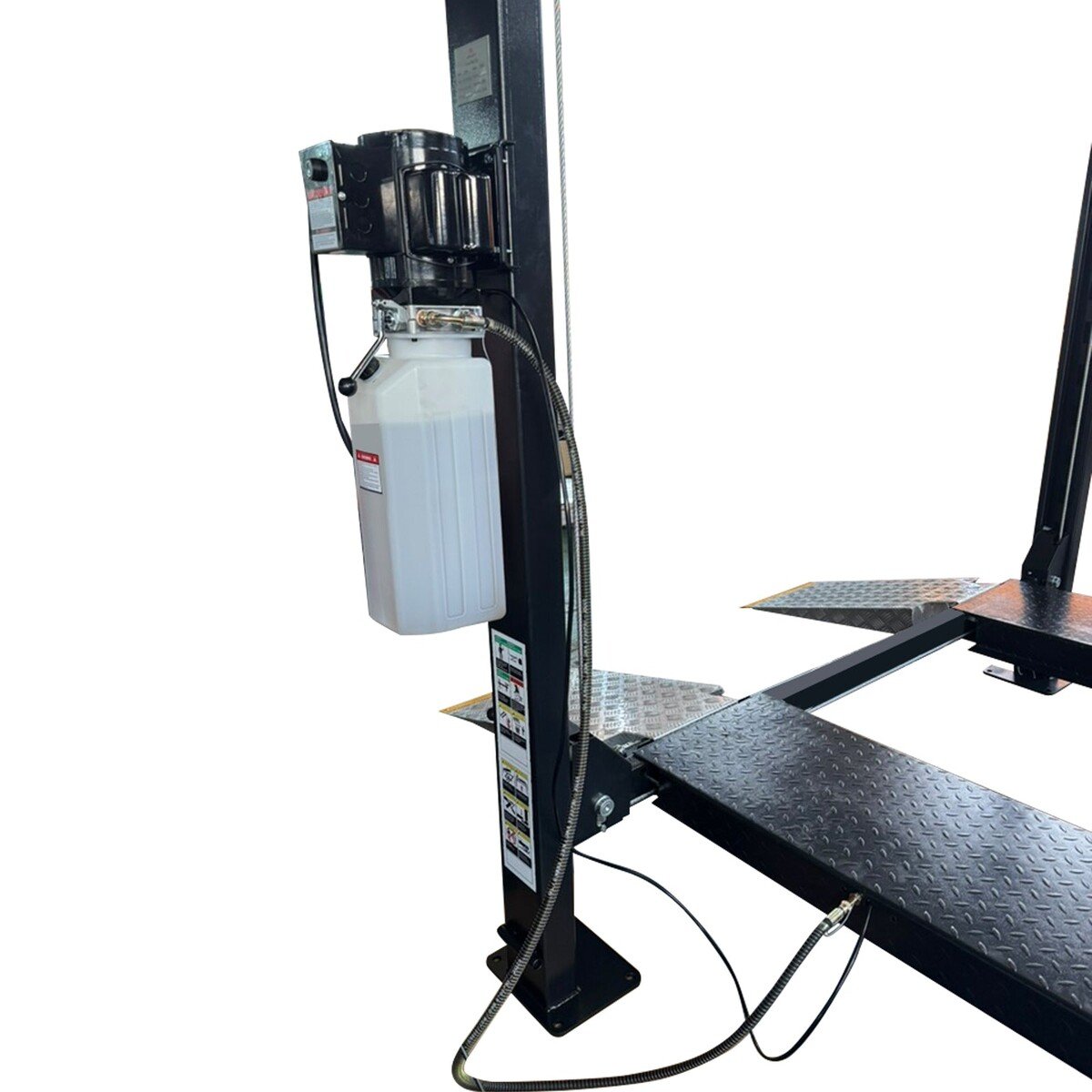

Safer Operation with A Revolutionary High Efficient 110V 1.5HP Hydraulic Power Unit
Powder Coated Finish with Superior Corrosion Resistance

APlusLift AP-9H and AP-9H-XLT 4-post car lift (auto hoist) is a portable parking and storage lift with an 9,000 LB Capacity. The design of this lift model has been proven for 30 years. It is built with high-quality materials and workmanship and features a powder coating for superior corrosion resistance. This lift uses a revolutionary, highly efficient 110V 1.5HP hydraulic power unit for safer operation. The lift delivers the perfect solution for parking, storage, and service use by homeowners or restoration shops.

APlusLift Falcon AP-9H and AP-9H-XLT 4-post car lift (auto hoist) package includes a caster kit with polyurethane wheels, a jack tray, four drip trays, two aluminum removable approach ramps and a power cord with plug. The caster kit allows customers to move the lift around the garage easily and can be installed or removed in minutes. The jack tray allows customers to use a jack to lift one end of the vehicle. The drip trays prevent fluid from the top vehicle from dripping onto the bottom vehicle. Optional sliding jacks are available for purchase.

Specifications and Features
Model	AP-9H-XLT	AP-9H
Warranty	3 Years (36 Months)	3 Years (36 Months)
Lifting Capacity	9,000 LB	9,000 LB
Overall Length	199″	179″
Overall Width	118″	114″
Drive Through Width	98″	93″
Overall Height	98″	98″
Lifting Height	86″	86″
Clearance Under Runway	81″	81″
Runway Size	189″L x 20″W	169″L x 18 11/16″W
Width Between Runways	38″ Inside-Inside, 78″ Outside-Outside	37 5/8″ Inside-Inside, 75″ Outside-Outside
Runway Gauge Steel	6 (1/4″)	6 (1/4″)
Column Cross Section	6 5/32″L x3 3/8″W	6 5/32″L x3 3/8″W
Removable Approach Ramps Size	36 13/16″L x 19 1/2″W	36 13/16″L x 19 1/2″W
Lock Positions	11 Positions （Clearance Under Runway) 20 6/9″ 42 1/2″ 46 1/2″ 50 3/8″ 54 3/8″ 58 1/4″ 62 1/4″ 66 1/8″ 70 1/8″ 74″ 77″ 81 7/8″	11 Positions （Clearance Under Runway) 20 6/9″ 42 1/2″ 46 1/2″ 50 3/8″ 54 3/8″ 58 1/4″ 62 1/4″ 66 1/8″ 70 1/8″ 74″ 77″ 81 7/8″
Lifting Time	50 seconds	50 seconds
Motor	110V Single Phase 1.5HP 10A (recommend a 20A breaker)	110V Single Phase 1.5HP 10A (recommend a 20A breaker)
Powercord	8 ft with plug	8 ft with plug
Hydraulic Oil	3-5 gallons AW32/AW46 (Not Included)	3-5 gallons AW32/AW46 (Not Included)
Concrete Thickness	4″	4″
Shipping Weight	2,000 LB	1,850 LB

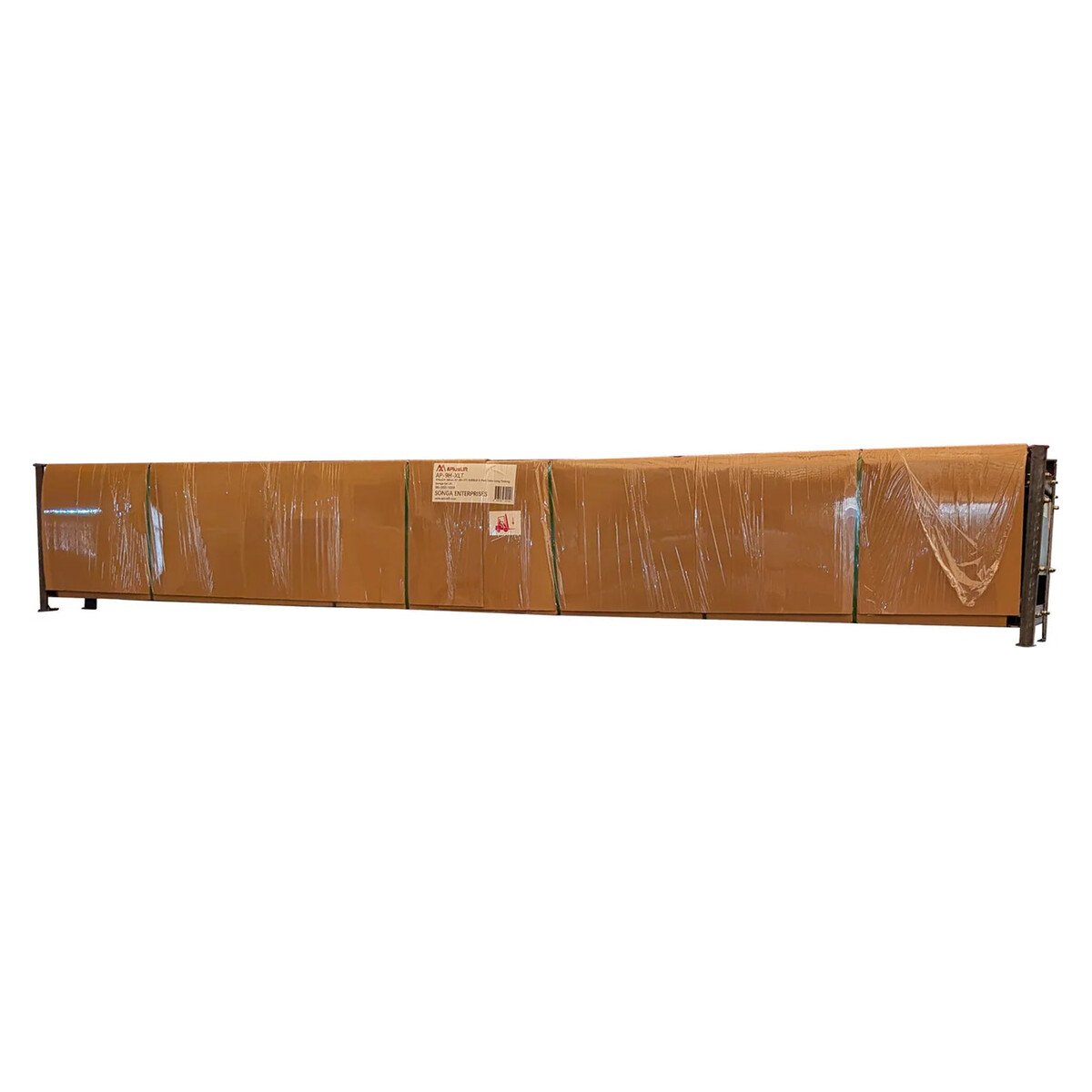

Shipping package size	194″L x 22″W x 30″H	174″L x 22″W x 30″H
Usage	Parking/Storage/Service
Finish	Powder Coated Finish with Superior Corrosion Resistance

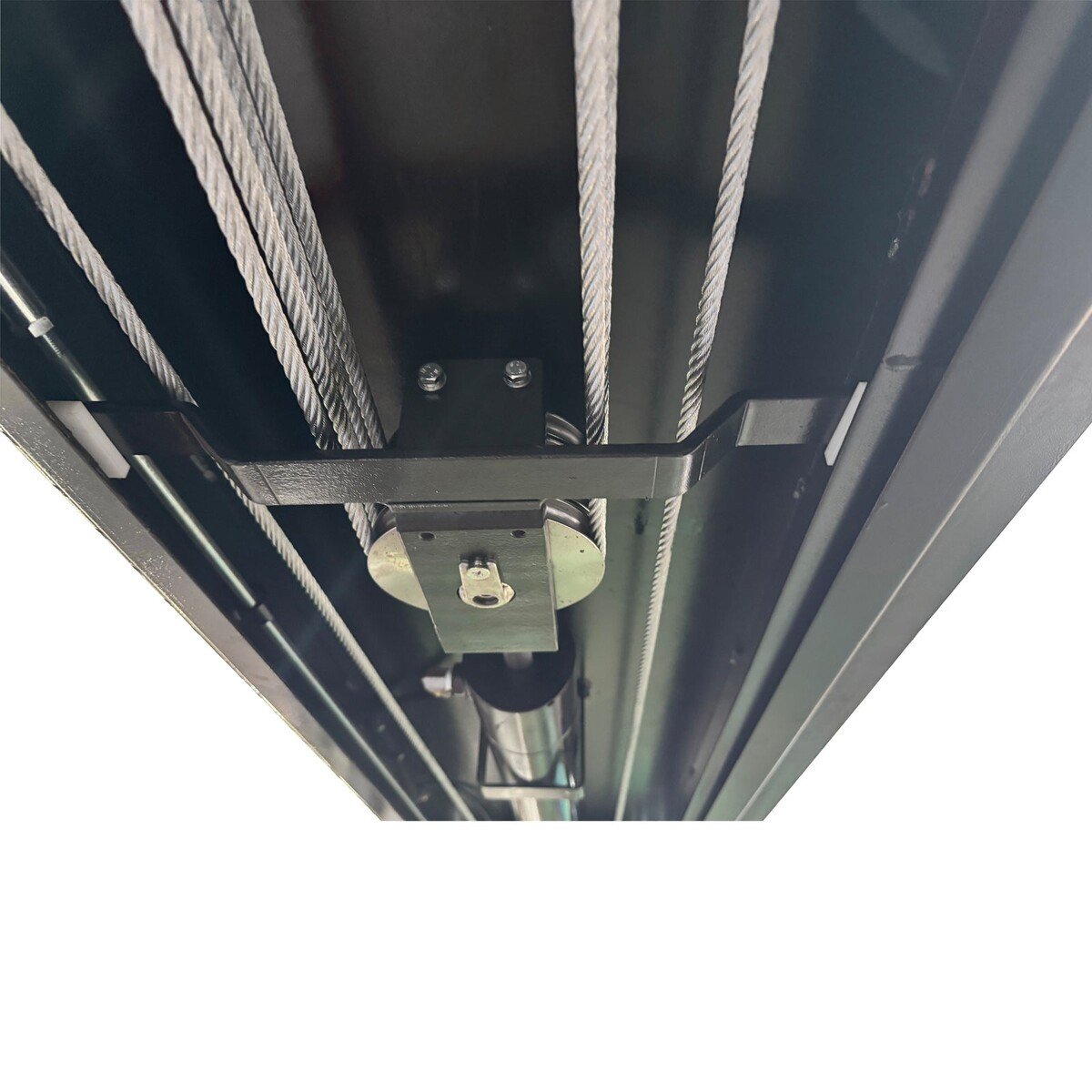

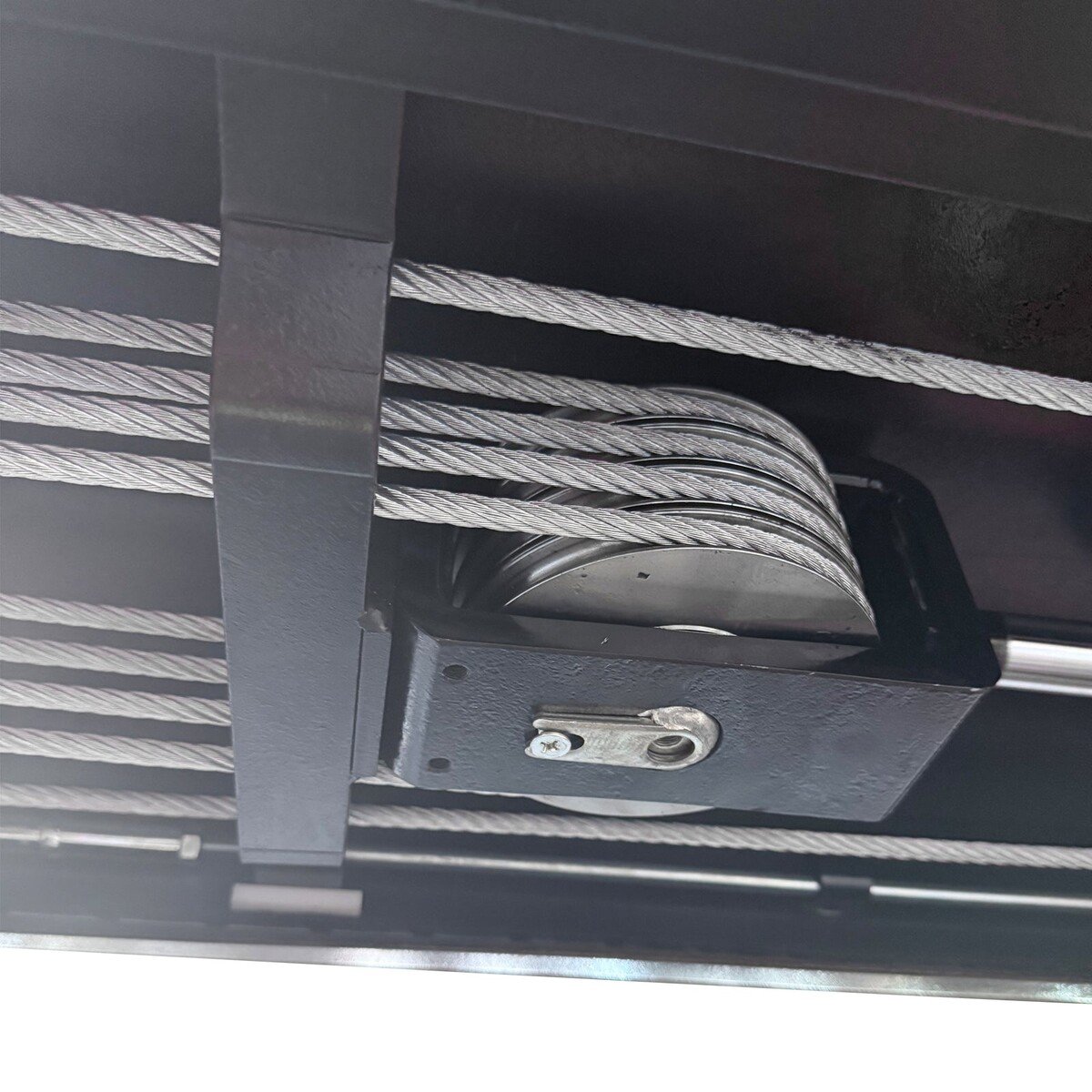

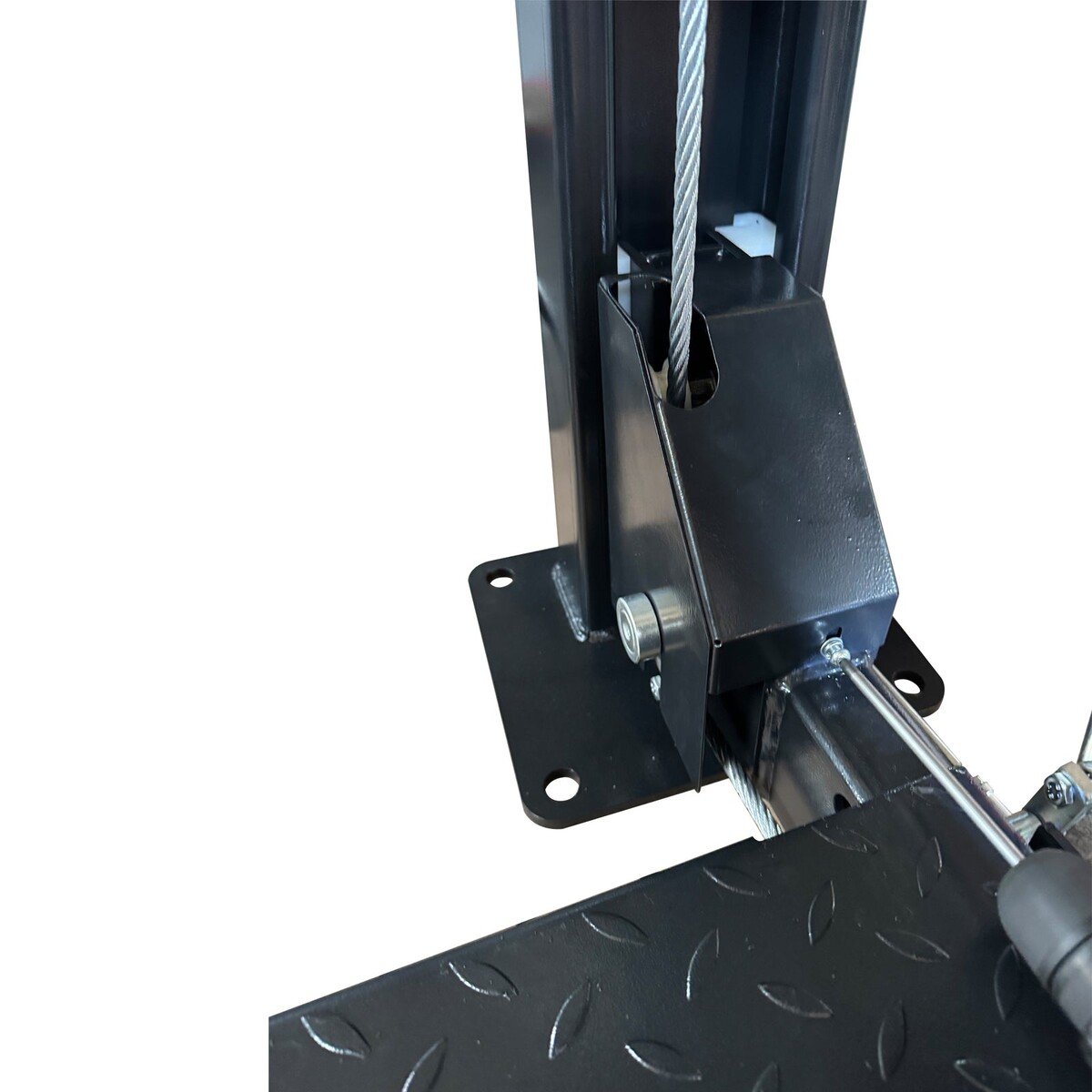

Cable	Heavy duty 3/8″ diameter cables that reduce high stress on synchronization process and increase cable life
Parts Included	Caster Kit, Jack Tray, 4 Drip Trays, And 2 Removable Approach Ramps Included
Optional Jack	ABJ-40 Air Operated Bridge Jack
