Description

Products Description

APlusLift HW-8S 8,000 lb. 4-Post Storage & Service Car Lift

All 4-Post Lifts and Jacks.

Industry leading 3 Year (36 Months) Warranty
Now with Aluminum Ramps!
Drive Through Width 93″ (HW-8S) and 99″ (HW-8SXLT)

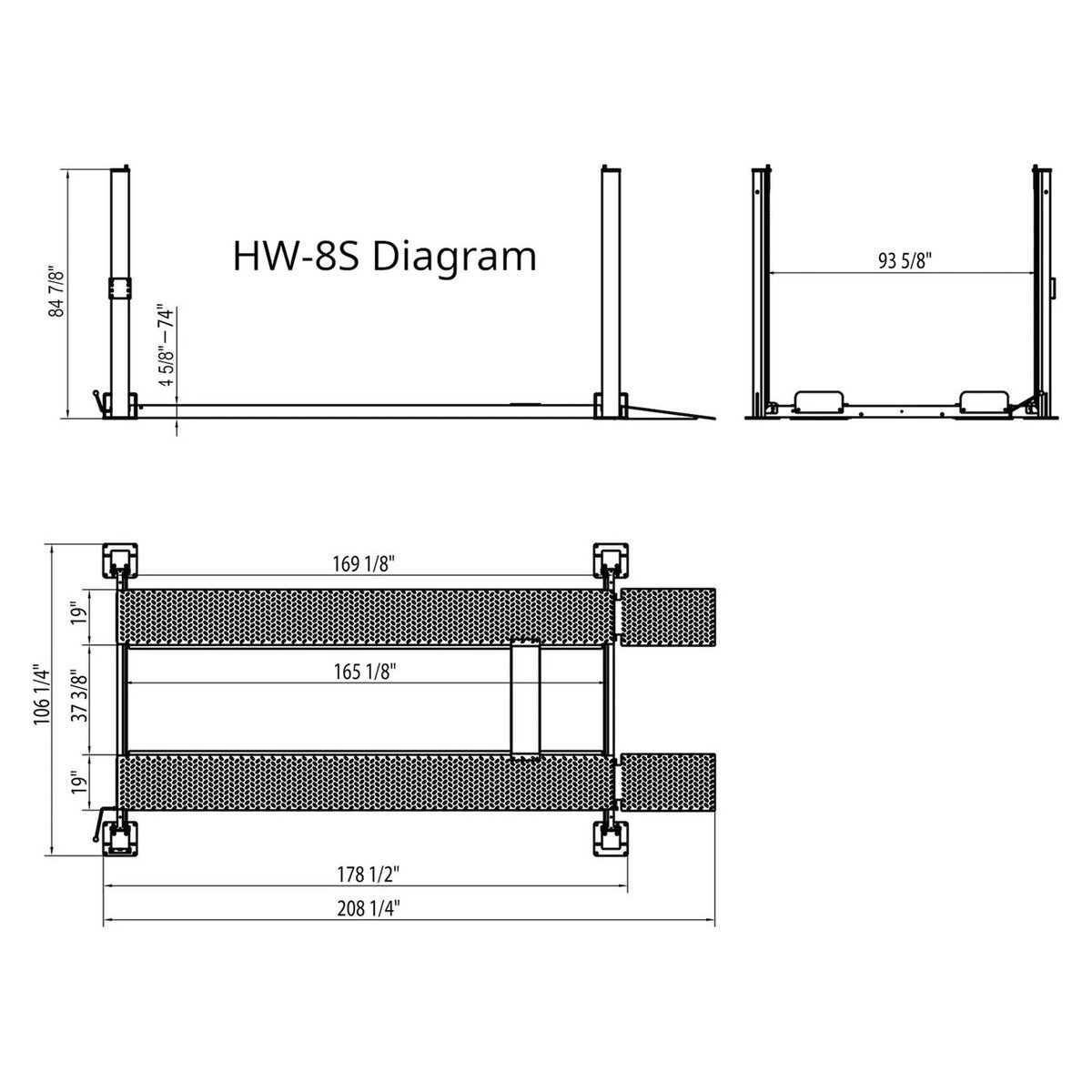

HW-8S Model Overall Dimensions: 178″L x 106″W x 84″H

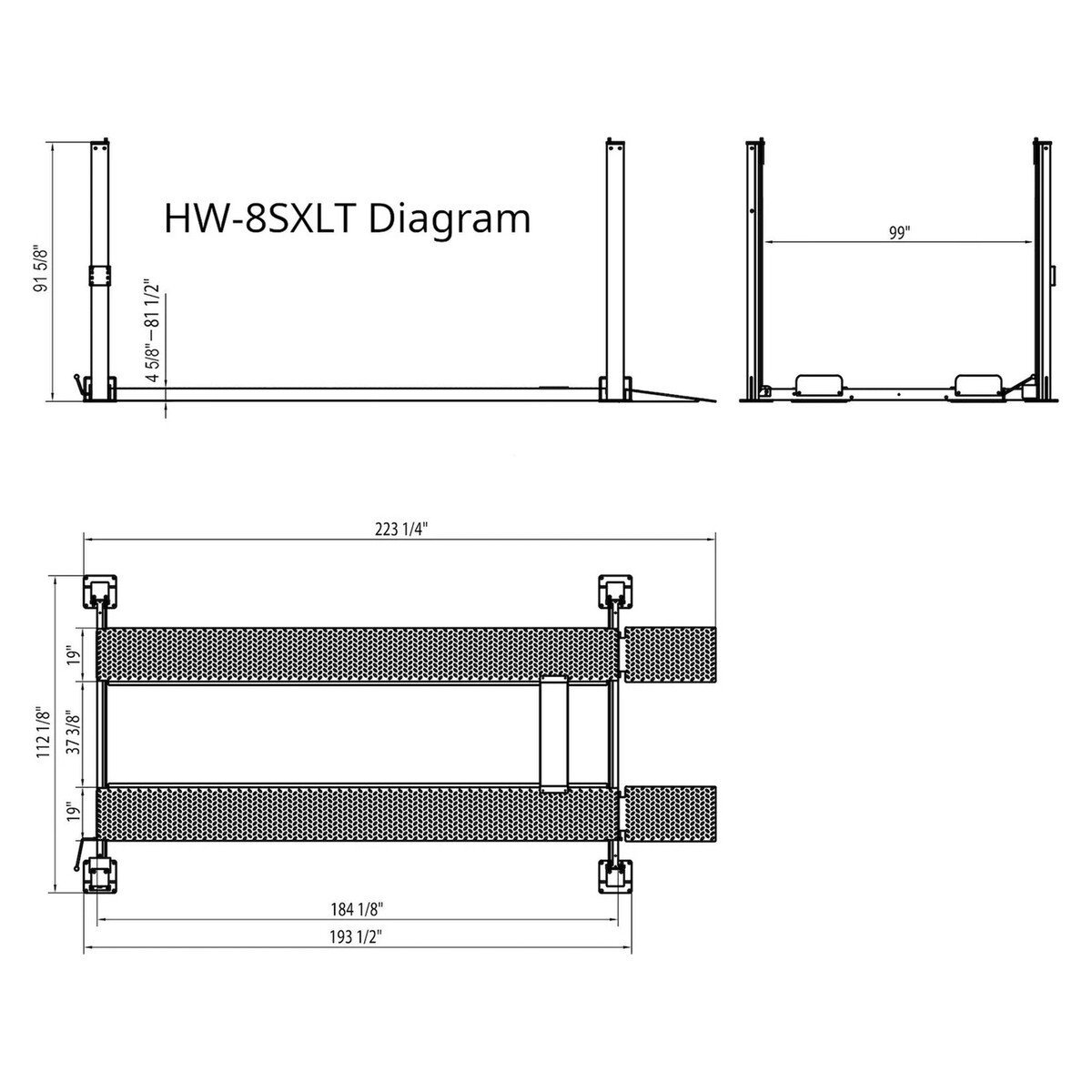

HW-8SXLT Model Overall Dimensions: 193″L x 112″W x 91″H

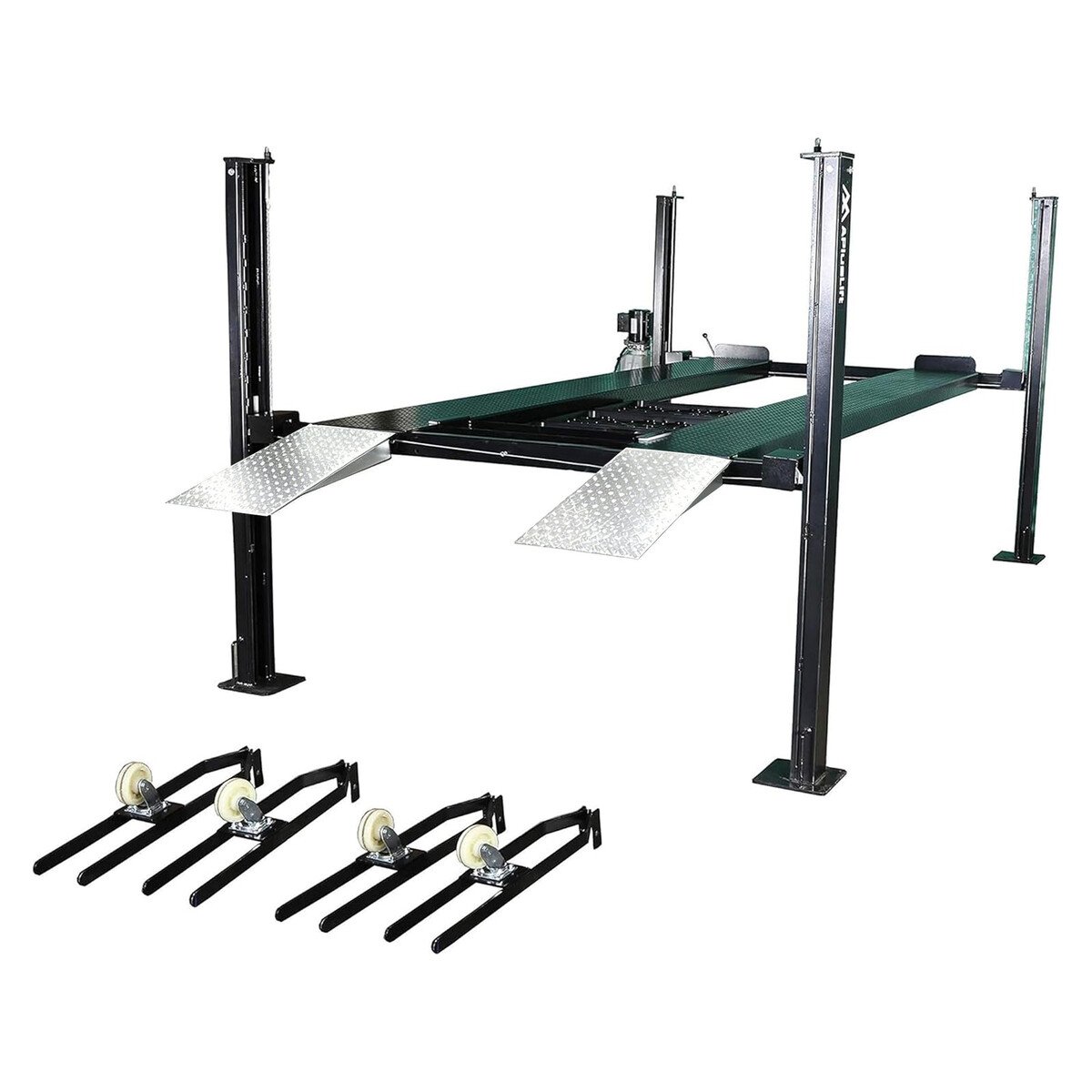

Free Caster Kit, Jack Tray, Drip Trays, Removable 36″ Aluminum Ramps, and Power Cord.
Optional 45″ Aluminum Long Ramps for Low-Clearance Vehicles and ABJ-40 Air-Operated Rolling and Sliding Jack.
CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
Safer Operation with A Revolutionary High Efficient 110V 1.5HP Hydraulic Power Unit
Powder Coated Finish with Superior Corrosion Resistance

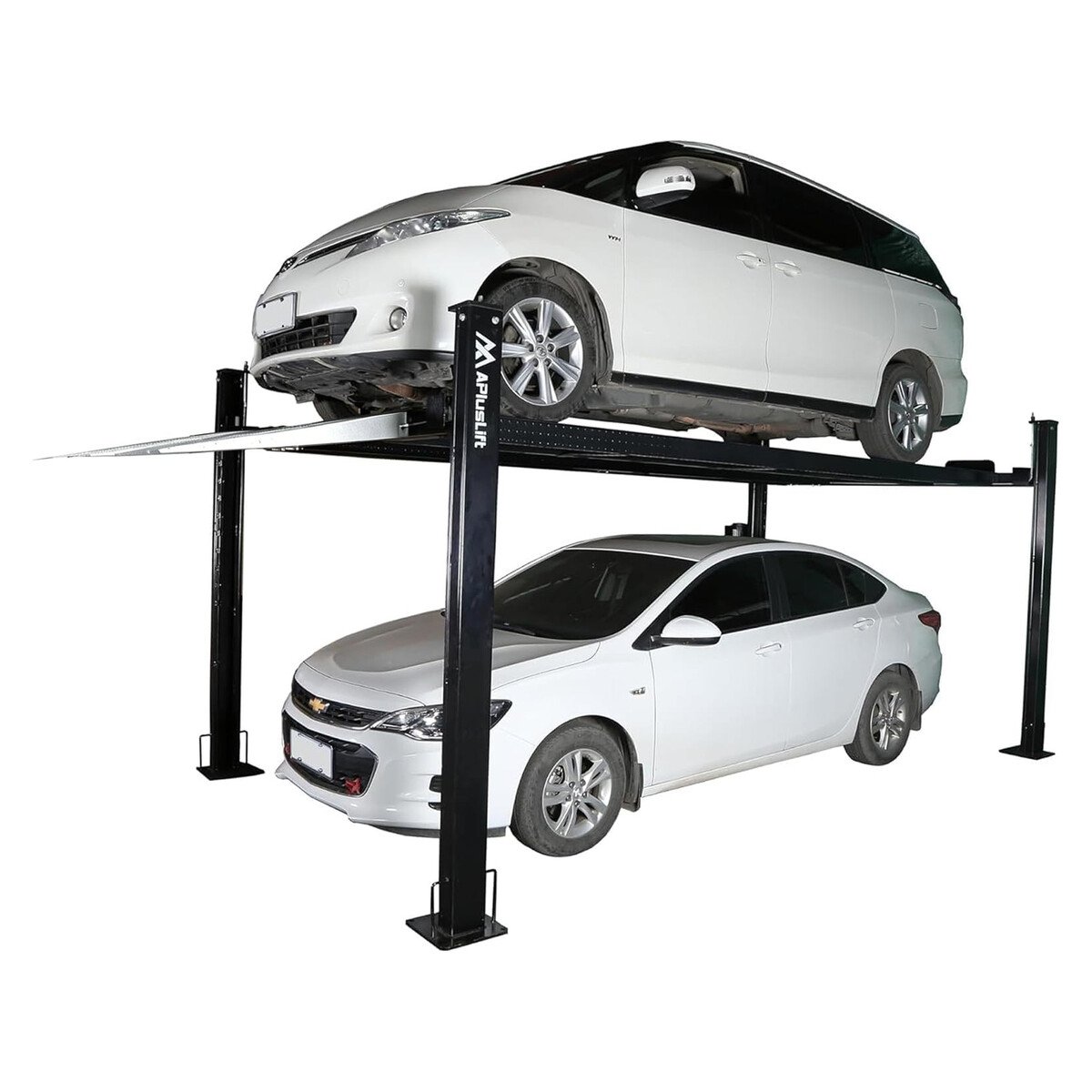

APlusLift HW-8S and HW-8SXLT 4-post car lift (auto hoist) is a portable parking and storage lift with an 8,000 LB Capacity and newly upgraded aluminum ramps. The design of this lift model has been proven for 30 years. It is built with high-quality materials and workmanship and features a powder coating for superior corrosion resistance. This lift uses a revolutionary, highly efficient 110V 1.5HP hydraulic power unit for safer operation. The lift delivers the perfect solution for parking, storage, and service use by homeowners or restoration shops.

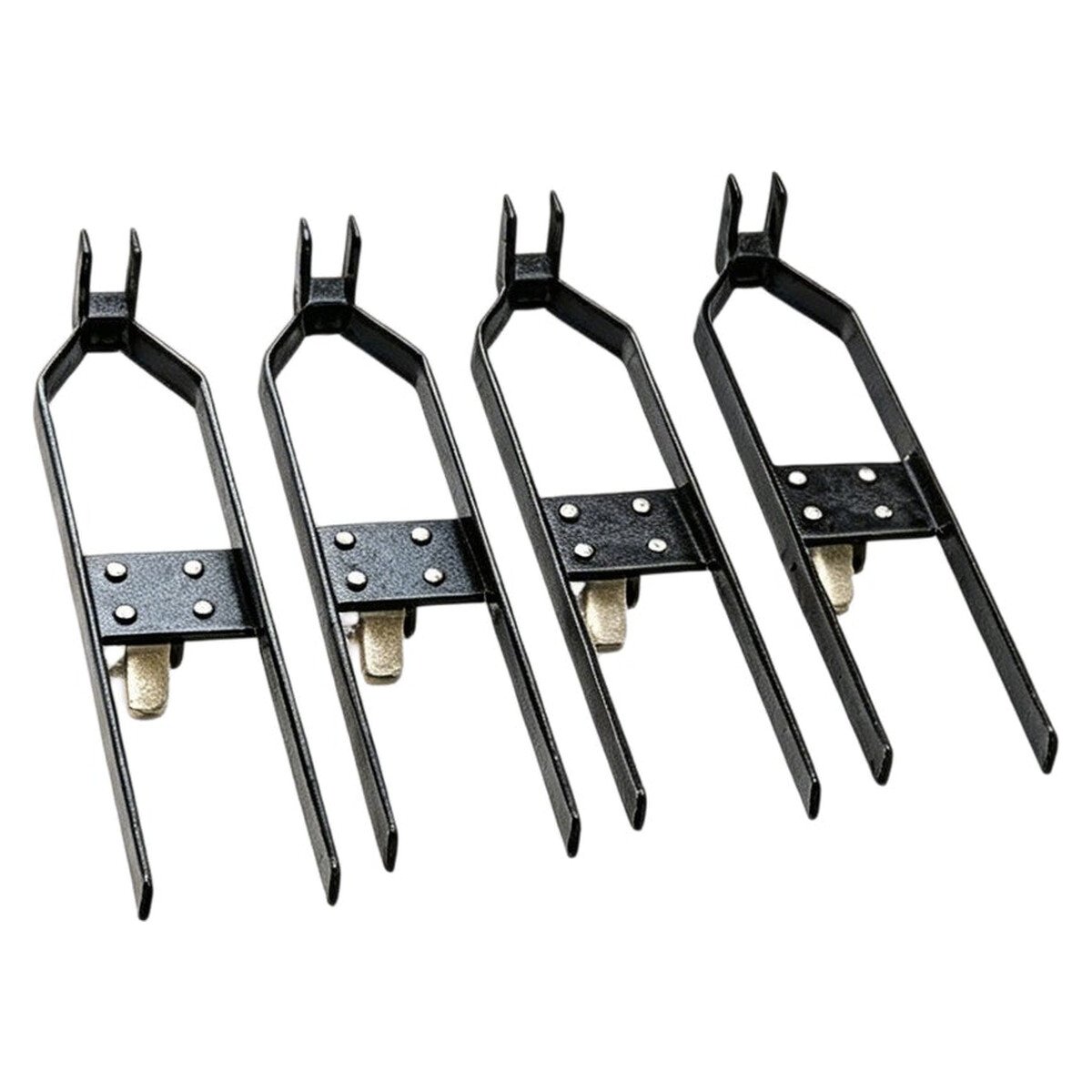

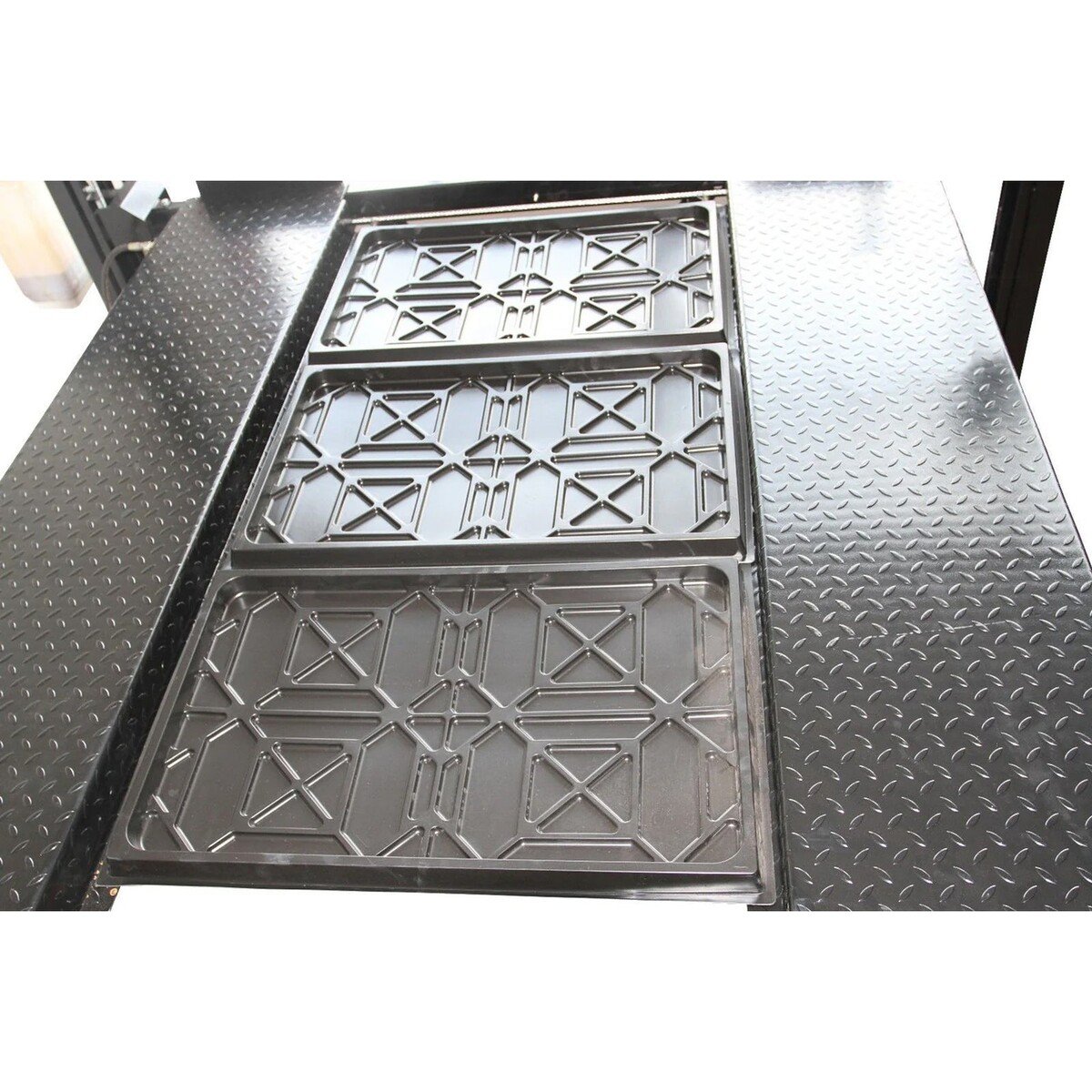

APlusLift HW-8S and HW-8SXLT 4-post car lift (auto hoist) package includes a caster kit with polyurethane wheels, a jack tray, three drip trays, two removable 36″ aluminum approach ramps and a power cord. The caster kit allows customers to move the lift around the garage easily and can be installed or removed in minutes. The jack tray allows customers to use a jack to lift one end of the vehicle. The drip trays prevent fluid from the top vehicle from dripping onto the bottom vehicle. Optional sliding jacks are available for purchase.

Specifications and Features
Model	HW-8SXLT	HW-8S
Warranty	3 Years (36 Months)	3 Years (36 Months)
Lifting Capacity	8,000 LB	8,000 LB
Overall Length	193″	178″
Overall Width	112″	106″
Drive Through Width	99″	93″
Overall Height	91″	84″
Lifting Height	82″	72″
Clearance Under Runway	77″	66″

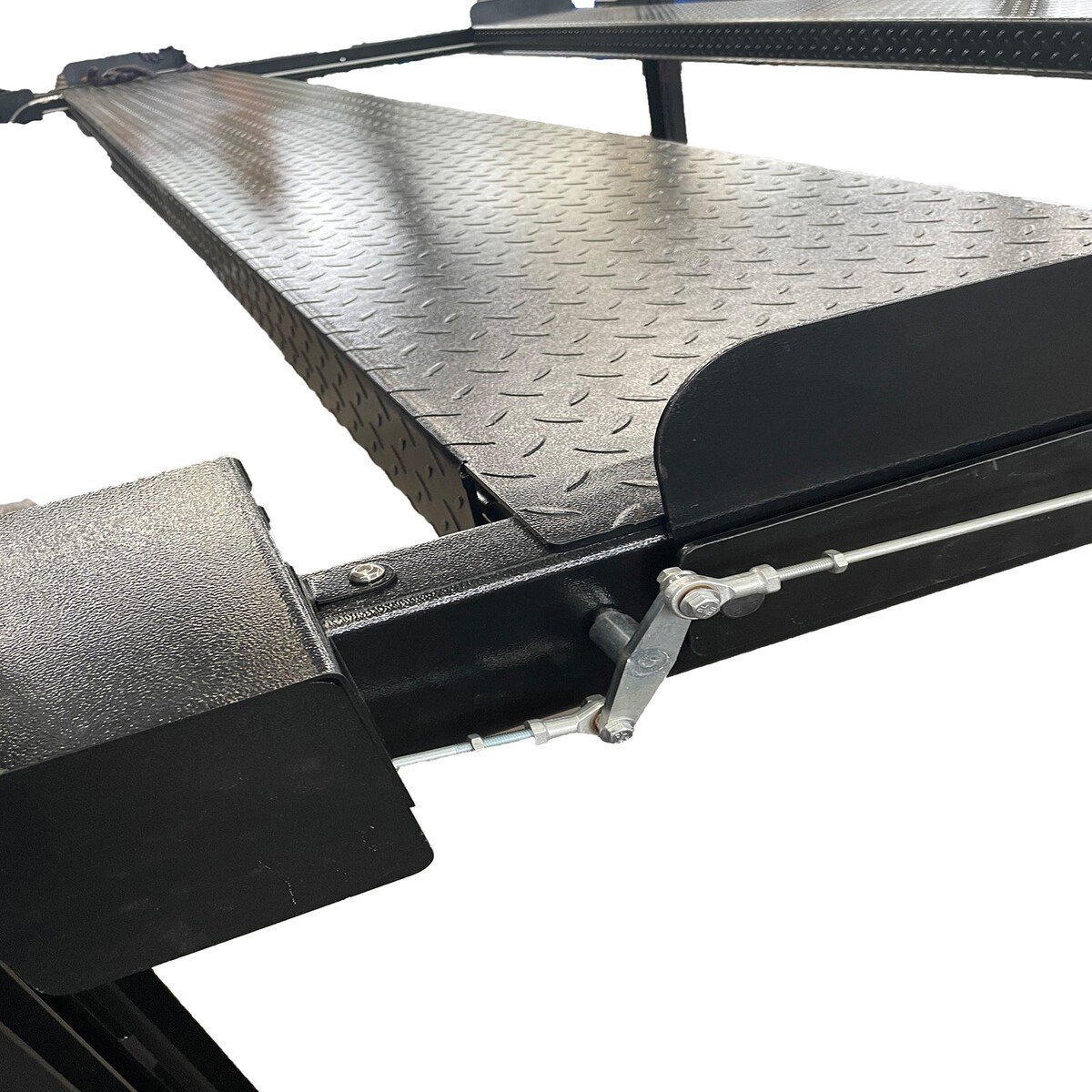

Runway Size	180″L x 18 1/2″W	165″L x 18 1/2″W
Width Between Runways (Non-Adjustable)	38″ Inside-Inside, 75″ Outside-Outside	38″ Inside-Inside, 75″ Outside-Outside
Runway Gauge Steel	6 (13/64″)	6 (13/64″)

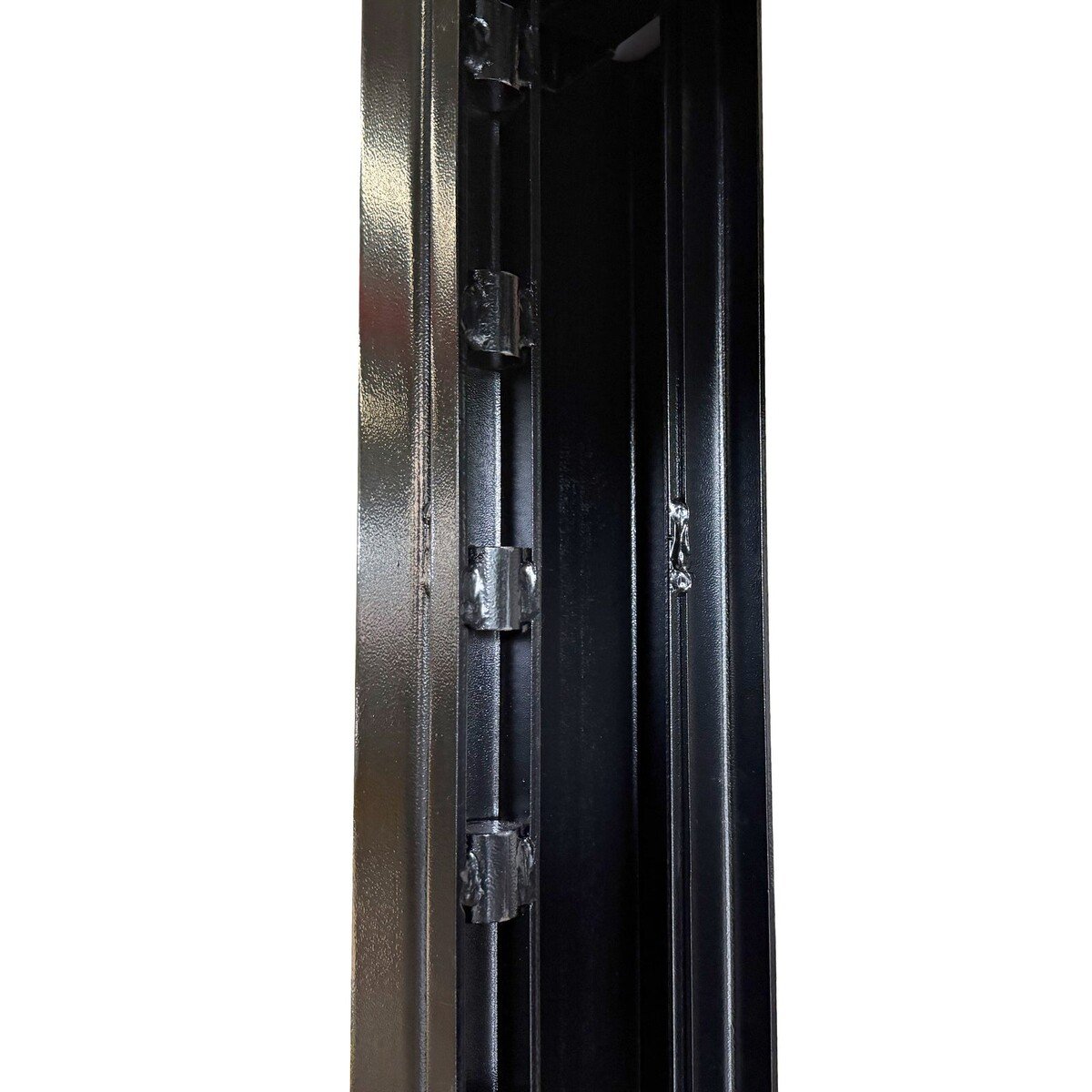

Column Cross Section	6″L x 4″W	6″L x 4″W

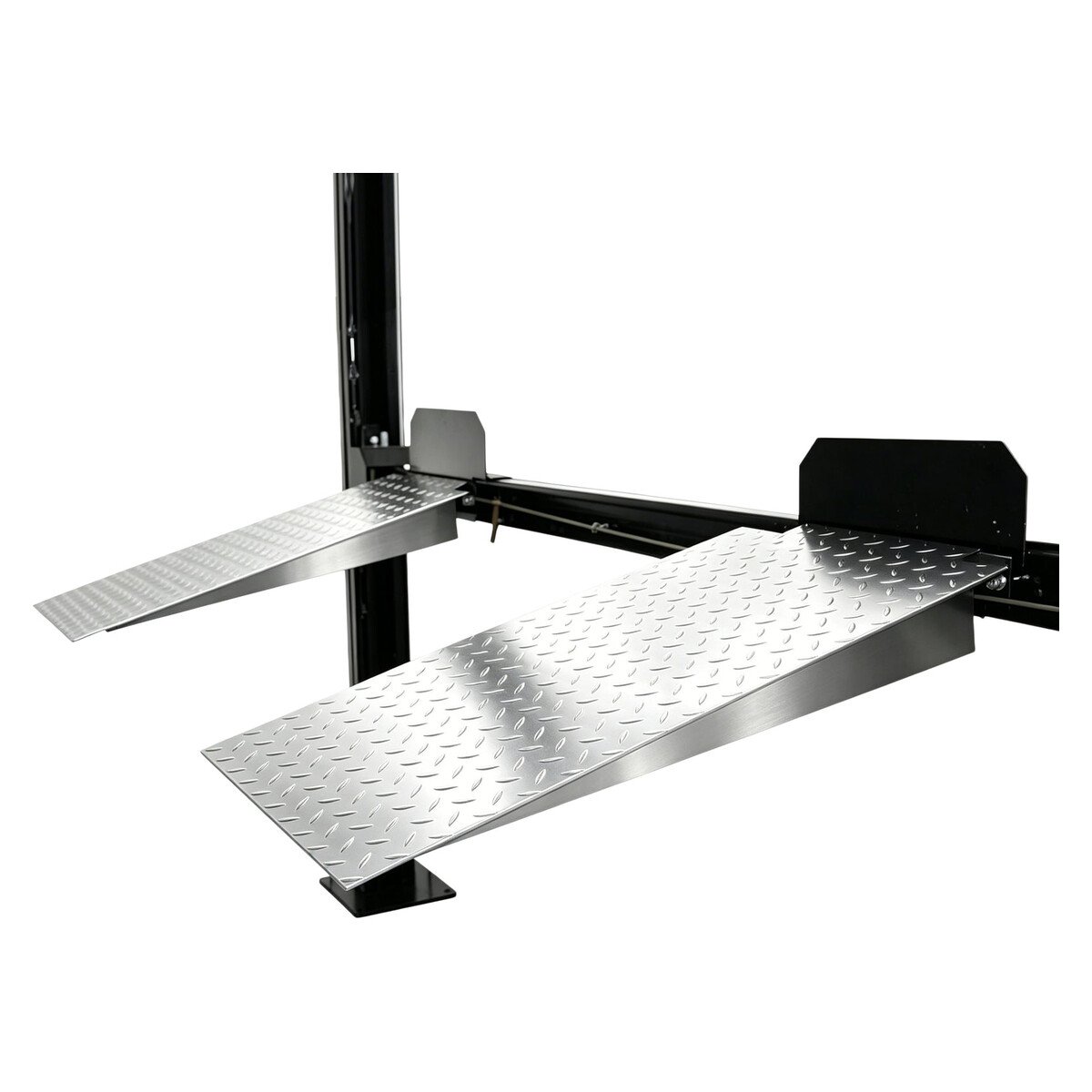

Removable Aluminum Approach Ramps Size	36″L x 19 1/4″W	36″L x 19 1/4″W
Lock Positions	12 Positions 28 3/4″ 42 1/2″ 46 1/2″ 50 3/8″ 54 3/8″ 58 1/4″ 62 1/4″ 66 1/8″ 70 1/8″ 74″ 77″ 81 7/8″	9 Positions 28 3/4″ 42 1/2″ 46 1/2″ 50 3/8″ 54 3/8″ 58 1/4″ 62 1/4″ 66 1/8″ 70 1/8″
Lifting Time	40 seconds	40 seconds
Motor	110V Single Phase 1.5HP 10A (recommend a 20A breaker)	110V Single Phase 1.5HP 10A (recommend a 20A breaker)
Powercord	10 ft with plug	10 ft with plug
Hydraulic Oil	3-5 gallons AW32/AW46 (Not Included)	3-5 gallons AW32/AW46 (Not Included)
Concrete Thickness	4″	4″
Shipping Weight	1,850 LB	1,750 LB
Shipping package size	186″L x 22″W x 30″H	166″L x 22″W x 30″H
Usage	Parking/Storage/Service
Finish	Powder Coated Finish with Superior Corrosion Resistance

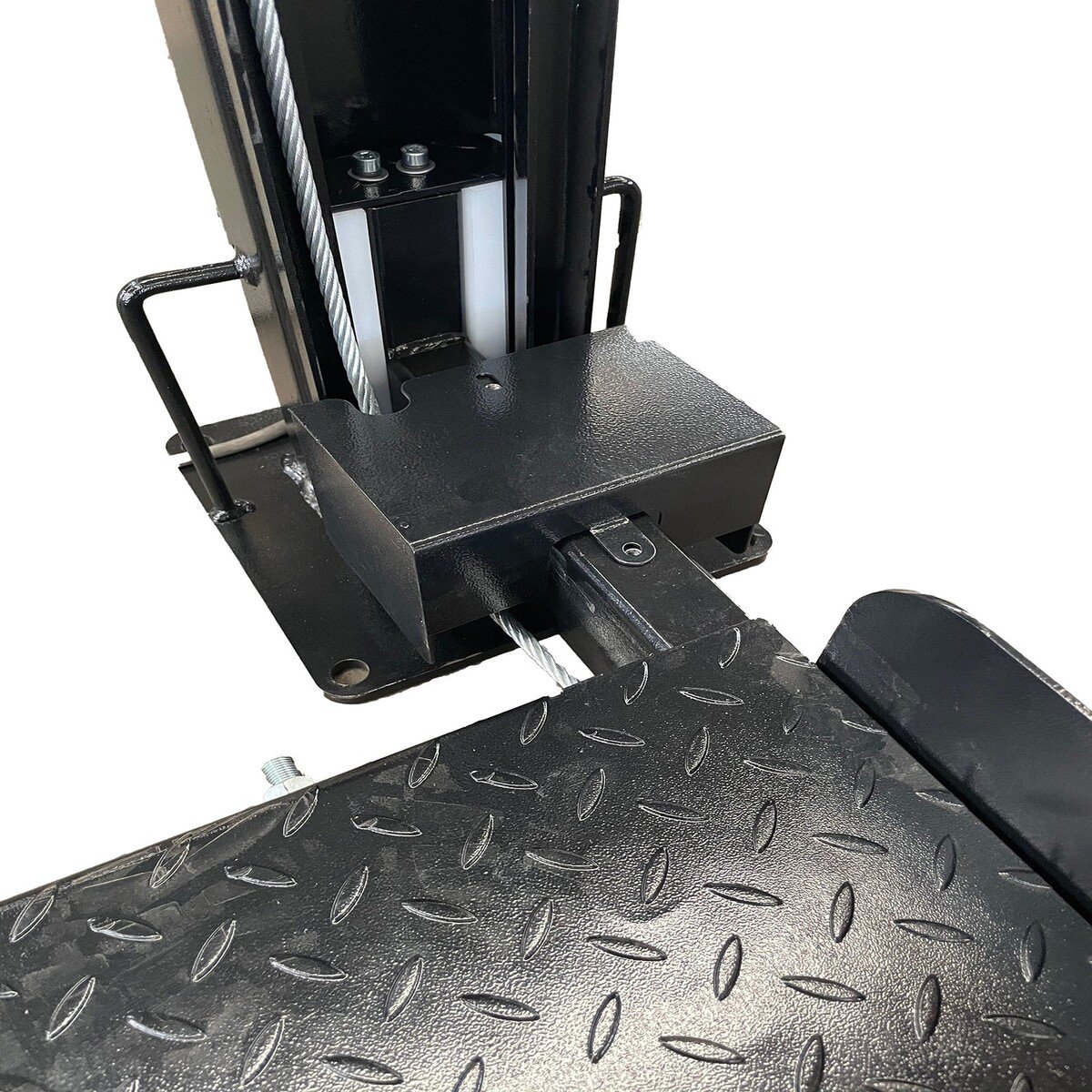

Cable	Heavy duty 3/8″ diameter cables that reduce high stress on synchronization process and increase cable life
Parts Included	Caster Kit, Jack Tray, 3 Drip Trays, And 2 Removable 36″ Aluminum Approach Ramps Included
Optional Jack	ABJ-40 Air Operated Rolling And Sliding Jack

All 4-Post Lifts and Jacks.

Shipping

Please see our Shipping Policy for delivery details. Car lifts ship by freight truck; a forklift or similar equipment is needed to unload them.

Lifts that are anchored to the floor require level concrete of adequate thickness and strength — check the manufacturer’s installation manual before ordering.
