APlusLift Falcon ALI Certified 10,000 lb. 2-Post Overhead Car Lift

APlusLift

Authorized Retailer

100% genuine products from official brands

Official Manufacturer Warranty

Every product includes the manufacturer's warranty

Secure Payment

Verified U.S. business · SSL encrypted checkout

90-Day Return Policy

Easy returns — see policy page

Price range: $4,099.00 through $4,399.00

In Stock Brand New Tax Included ↩ 90-Day Free Returns — no restocking fees, no hassle.

SKU: N/A Category: Car Lifts Brand: APlusLift

Size

Clear

Compare

Add to wishlist

Description

Products Description

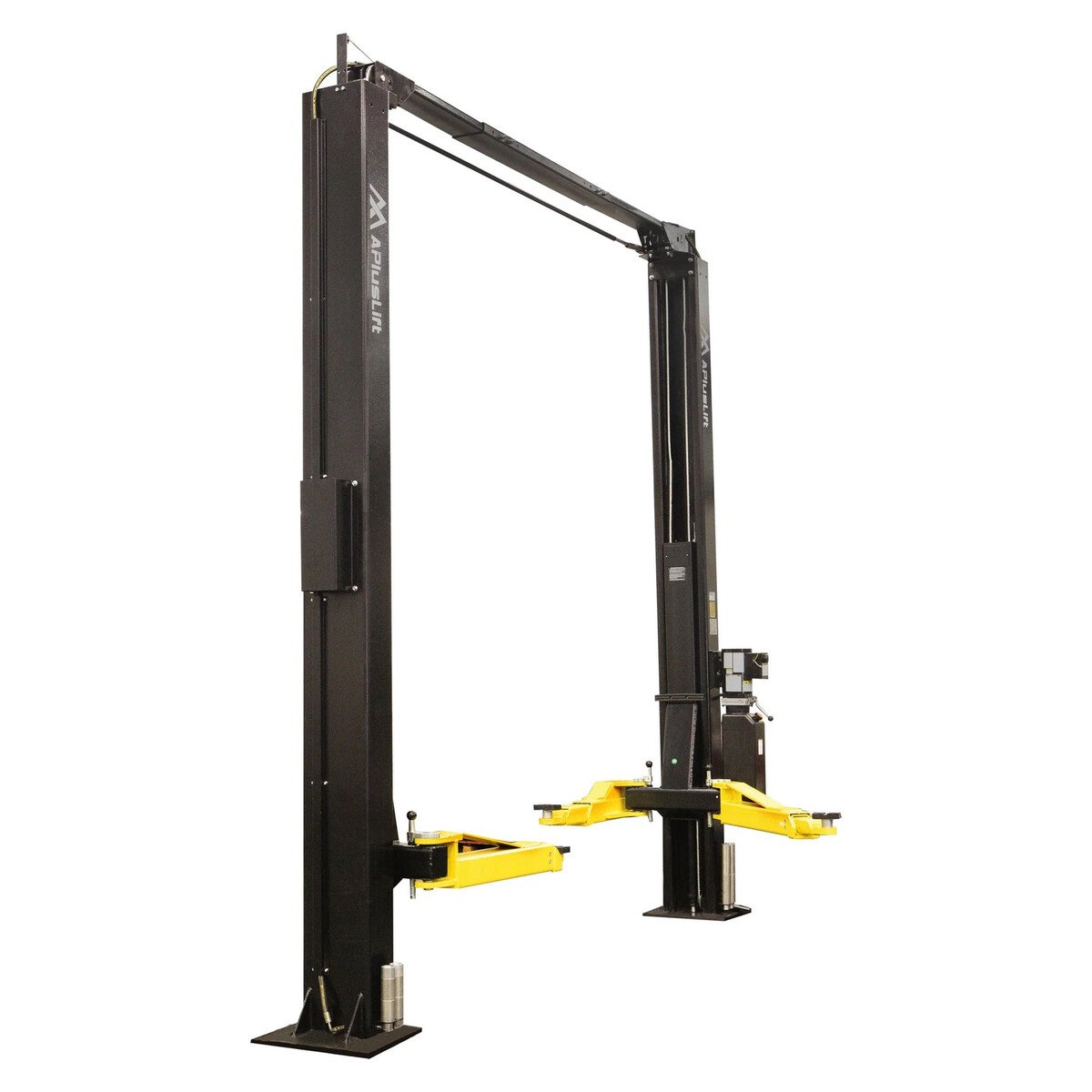

APlusLift Falcon ALI Certified 10,000 lb. 2-Post Overhead Car Lift

All 2-Post Car Lifts

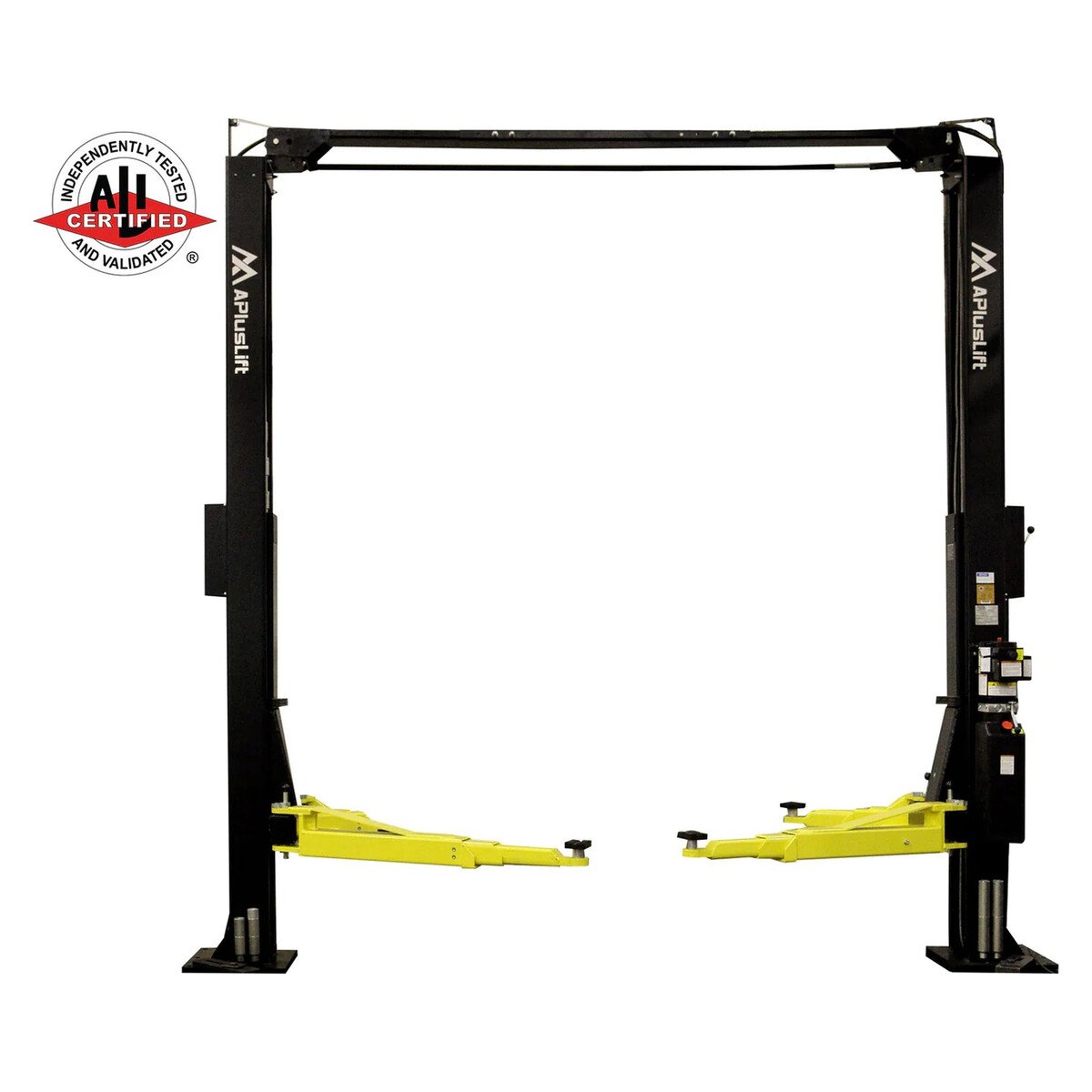

ALI Gold Label Certified: Meets the industry’s highest safety benchmarks, ensuring your equipment is fully compliant with commercial insurance and OSHA-based requirements.
Industry leading 3 YEAR WARRANTY
Three Sets of Truck Adapters (High Extension) Included

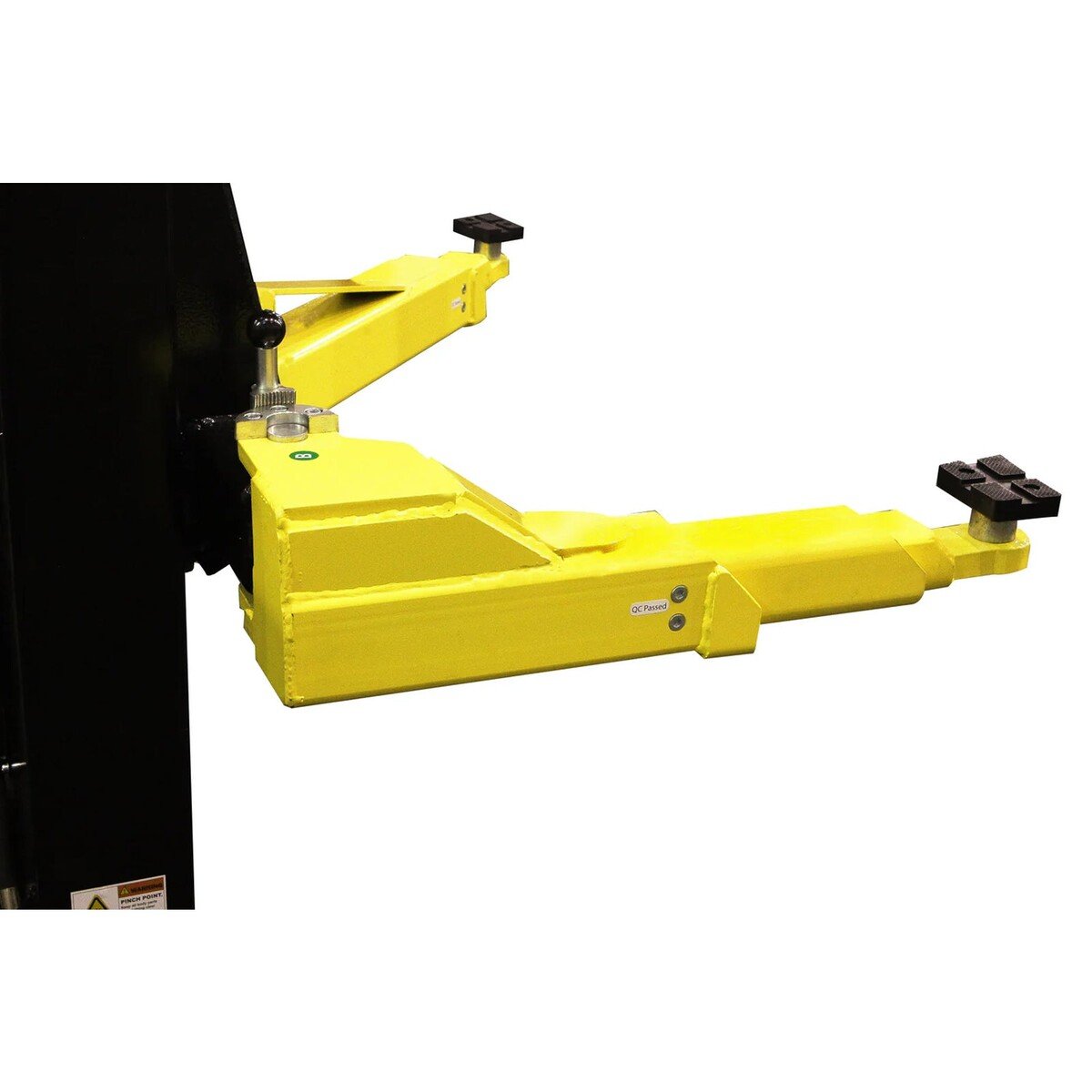

Three variable Drive Through 88 1/8″, 94 1/16″, 100″! Triple Telescoping Arm Design!
Dual Direct Drive Hydraulic Cylinders
All Robot Welded Structure with Durable Powder Coated Finish
Flawless Manual Single Point Lock Release System

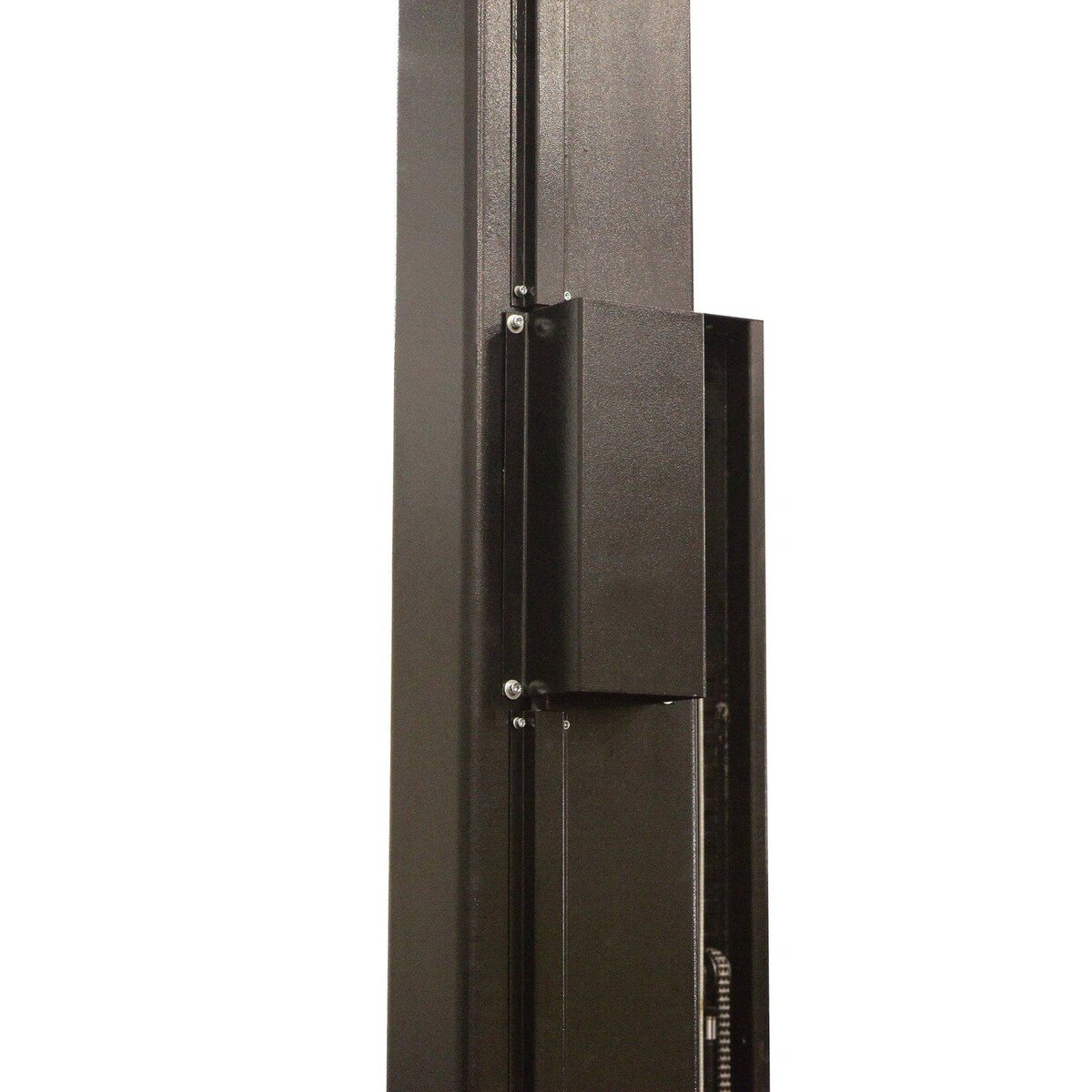

Oversized 57″ Tall Carriages

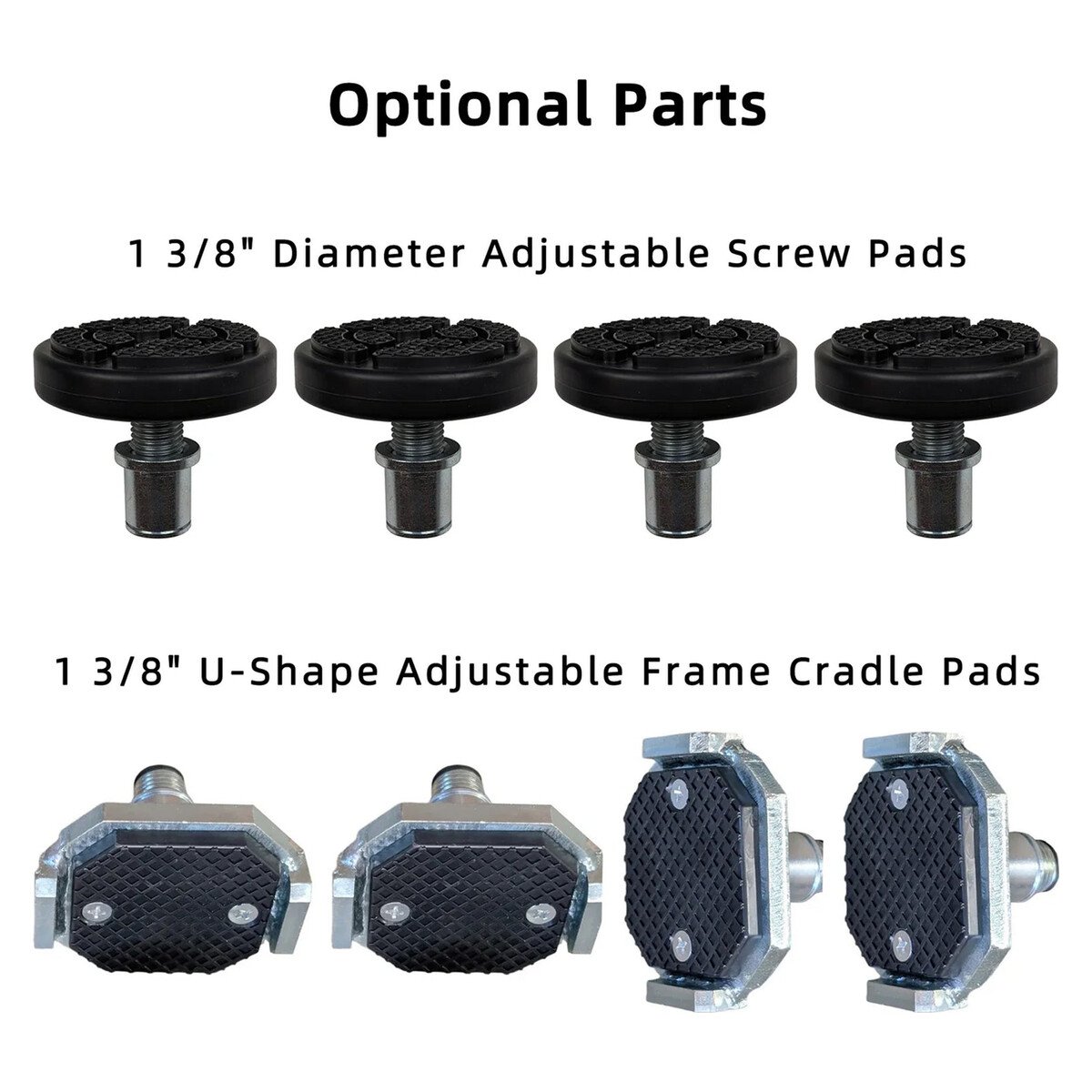

Optional Parts: 1 3/8″ Adjustable Screw Pads, 1 3/8″ U-Shape Adjustable Frame Cradle Pads, and 90 Degree Power Unit Brackets.

Falcon TR-10C and TR-10CX models achieve the prestigious Gold Label for ALI Certification! This mark signifies rigorous testing and compliance with the toughest industry standards, and they satisfy all insurance company requirements. To learn more about the Automotive Lift Institute (ALI) and the ANSI/ALI/ETL Certification Program, please visit www.autolift.org.

We are proud to offer an industry leading 3 year warranty for all parts! Replacement parts are available upon request. We welcome suggestions to improve our products and service!

Specifications
Model	TR-10C and TR-10CX This Model	HW-10ASY for Comparison
Certificate	ALI Certified	CE Certified
Lock Release	Single Point Release	Single Point Release
Warranty	3 Years (36 months)	3 Years (36 months)
Lifting Capacity	10,000 LB	10,000 LB
Overall Height	143 3/4″ (TR-10C) 166″ (TR-10CX)	141 3/16″
Overall Width	140 7/16″ (narrow spacing) 146 3/8″ (medium spacing) 152 1/4″ (wide spacing)	139 1/8″ (standard) 140 15/32″ (post rotated)
Maximum Lift height with Truck Adapters	78″	81″
Maximum Lift height without Truck Adapters	69″	75″
Minimum Height of Adjustable Pads from Ground	4″	4″
Drive Through Width (Carriage to Carriage)	88 1/8″ (narrow spacing) 94 1/16″ (medium spacing) 100″ (wide spacing)	104″ (symmetric) 97″ (asymmetric)
Column Inside to Inside	97 1/8″ (narrow spacing) 103 1/16″ (medium spacing) 109″ (wide spacing)	113″ (symmetric) 107″ (asymmetric)
Column Outside to Outside	110 7/8″ (narrow spacing) 116 13/16″ (medium spacing) 122 3/4″ (wide spacing)	127″ (symmetric)
Column Cross Section	11 3/8″L x 6 7/8″	11″L x 7″W
Driving Mode	Direct Drive	Dual hydraulic cylinders, chain drive
Motor	220V Single Phase 3HP 10A (recommend a 20A breaker)	220V Single Phase 3HP 10A (recommend a 20A breaker)
Time to full rise	50 seconds	50 seconds
Hydraulic Oil	3-5 gallons AW32/AW46 (not included)	3-5 gallons AW32/AW46 (Not Included)
Truck Adapters	3 sets: 1 1/2″, 3″, and 6″ tall	1 set: 4″ tall
Front Arms	3 Stage reach from 19 5/16″ to 41 7/8″	Straight Front 3 Stage reach from 22 7/8″ to 42 5/8″
Back Arms	3 Stage reach from 37 5/16″ to 60 3/16″	Straight Rear 2 Stage reach from 33 5/8″ to 52 7/8″
Column Steel Thickness	1/4″	13/64″
Carriage Steel Thickness	1/4″	15/64″
Carriage Yoke Thickness	9/16″	9/16″
Arm Steel Thickness	1/4″	15/64″
Base Plate Steel Thickness	13/16″	5/8″
Shipping Weight	2000 LB and 200 LB (2 ft height extension for TR-10CX)	1470 LB and 120 LB

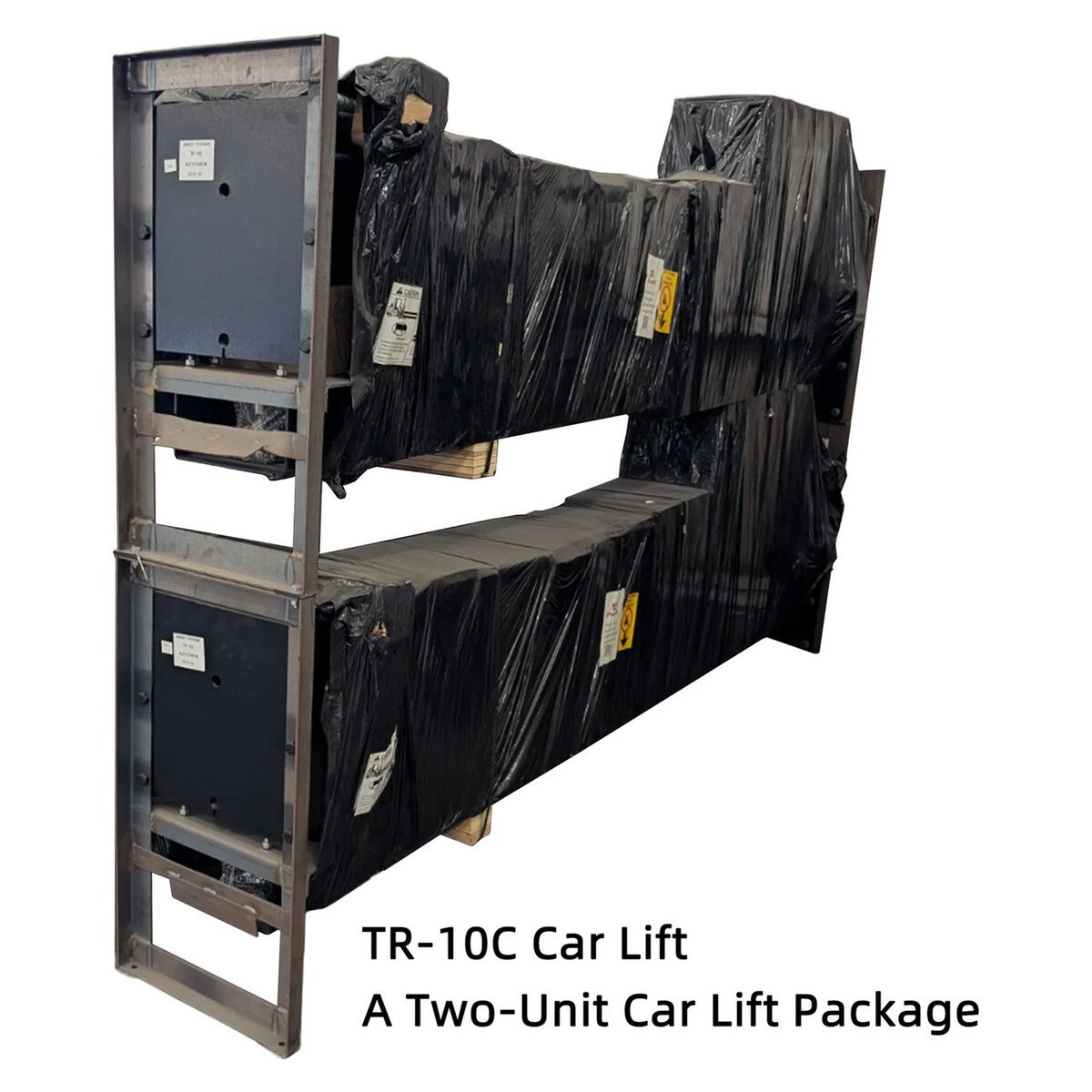

Shipping package size	142″L x 22″W x 38″H and 30″L x 17″W x 17″H (2ft height extension for TR-10CX)	113″L x 22″W x 40″H (Car Lift) 38″L x 17″W x 14″H (2ft Height Extension Crate)
Concrete Requirement	6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below)
Model	TR-10C and TR-10CX This Model	HW-10ASY for comparison

Features

Single-point safety lock release
Automatic arm lock restraints
Relief valve built-in power pump to prevent overloading
Door guard protection rubber
Up-limit switch to protect cylinders working stroke used in safe length scope
Heavy duty 3/8″ diameter cable and 5″ pulley that reduce high stress on synchronization process and increase cable life
Stiffened base plate 13/16″ thickness
Ultra-high molecular self-lubricating nylon slider that ensures carriage smooth moving up and down
Lifting operation by pressing the “UP” button on the motor
Manual lowering operation by pressing the lever
Relief valve built-in power pump to prevent overloading

All 2-Post Car Lifts

Shipping

Please see our Shipping Policy for delivery details. Car lifts ship by freight truck; a forklift or similar equipment is needed to unload them.

Lifts that are anchored to the floor require level concrete of adequate thickness and strength — check the manufacturer’s installation manual before ordering.
